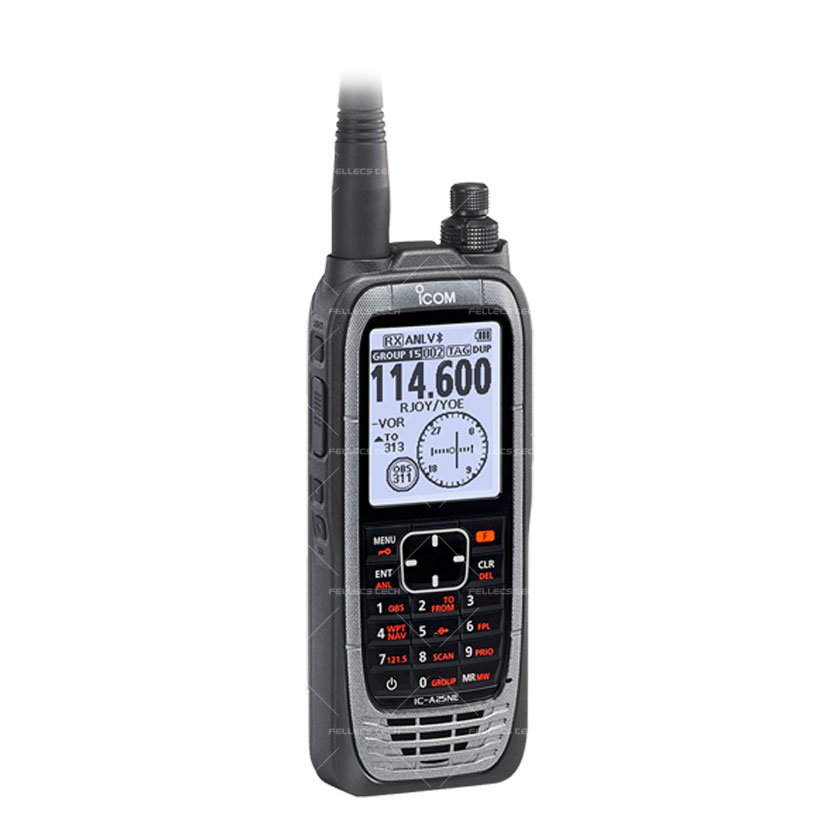

Product information "ICOM IC-A25NE"

Device Versions:

  • IC-A25CE: Features COM channels.
  • IC-A25NE: Features COM and NAV channels, waypoint navigation, flight planning via app, VOR navigation functions, an additional battery case, and a headset adapter cable.

Which device is right for you?

  • ICOM IC-A25NE: The perfect choice for pilots who require precise navigation with waypoint and VOR functions, as well as flight planning with an iOS™ app.
  • ICOM IC-A25CE: An excellent option for pilots seeking a powerful and reliable radio with intuitive operation and comprehensive features.

Key Features for Pilots with Navigation Needs:

  • Waypoint Navigation: Fly precise routes with up to 10 flight plans and 300 waypoints (IC-A25NE only).
  • Flight Planning with iOS™ App: Create flight plans conveniently on your iOS device and transfer them to the IC-A25NE via Bluetooth® (IC-A25NE only).
  • VOR Navigation Functions: Benefit from precise flight navigation with CDI, OBS, TO-FROM display, and ABSS (IC-A25NE only).

Both Devices Impress with:

  • 6W Transmit Power: Extend your communication range for reliable connections.
  • Intuitive Operation: Access all essential functions directly via the keypad and channel knob.
  • Large LC Display: The high-contrast 2.3-inch display offers excellent readability.
  • "Flip-Flop" Channel Memory: Recall the last 10 used channels quickly and easily.
  • Built-in Bluetooth®: Enjoy hands-free operation with compatible headsets for enhanced comfort and safety.
  • Intelligent Battery: The included BP-288 battery pack (2350mAh typ.) provides up to 10.5 hours of operating time and detailed battery status information.
  • Rugged Construction: IP57-certified for dust and water resistance.
  • Versatile Power Supply: Operate the device with the included battery or with 6 AA alkaline batteries.
  • Comprehensive Features: 121.5MHz emergency button, weather channels, VFO scan, priority scan, ANL (Auto Noise Limiter), sidetone function, VOX, 300 memory channels (in 15 memory groups), 8.33kHz channel spacing.

Additional Information:

  • Compatibility with Bluetooth® headsets is not guaranteed for all devices.
  • In some countries, additional certifications may be required for using certain features.
  • The Android™ app will be released later.
  • The iOS™ app can be downloaded for free from the App Store.

Scope of Delivery:

  • BP-288 Battery Pack
  • BC-224 Quick Charger
  • BC-123SE AC Adapter for BC-224
  • FA-B02AR Antenna
  • MB-133 Belt Clip
  • Hand Strap

Additional Items supplied by Version:

  • Headset Adapter Cable OPC-2379 (IC-A25NE only)
  • BP-289 Battery Case (IC-A25NE only)

Properties and specifications

Anschlussart-Zubehör: ICOM double pawl
App-Funktion: 1
Display: Yes, with LCD display
Flugfunk-Kanäle: COM channels, NAV channels
GNSS / GPS: 1
Gerätetyp: Handheld radio
Schutzart: IP57
Sendeleistung: Up to 6 watts
Stromversorgung: Rechargeable battery/battery pack
Abmessungen (Länge/Breite/Höhe): 58.9 × 148.4 × 31.8 mm

Technical documents, flyers and downloads

ICOM Air Catalog English
pdf | 2.91 MB
IC-A25 Brochure English
pdf | 2.15 MB
IC-A25 Brochure German
pdf | 2.26 MB
IC-A25 Basic-Manual English
pdf | 1.76 MB
IC-A25 Basic-Manual Multi
pdf | 3.36 MB
IC-A25 Full-Manual German
pdf | 2.50 MB
IC-A25 Full-Manual English
pdf | 2.32 MB
IC-A25NE Navigation-Guide German
pdf | 1.43 MB
IC-A25NE Navigation-Guide English
pdf | 628.96 KB
IC-A25NE DOC
pdf | 730.00 KB
