Variants:CXL 2-1/s: 138 - 156 MHz - PL(f)CXL 2-1/l : 46 - 165 MHz - PL(f)CXL 2-1/h: 155 - 175 MHz - PL(f) ← Current selection-CXL 2-1/s-N: 138 - 156 MHz - N(f)CXL 2-1/l-N: 146 - 165 MHz - N(f)CXL 2-1/h-N: 155 - 175 MHz - N(f)-CXL 2-1/s-TNC: 138 - 156 MHz - TNC(f)CXL 2-1/l-TNC: 146 - 165 MHz - TNC(f)CXL 2-1/h-TNC: 155 - 175 MHz - TNC(f)The CXL 2-1/... is a VHF antenna specially developed for maritime applications and fixed stations. Its robust construction and mounting versatility make it an ideal choice for marine applications.Mounting options:This antenna offers flexible mounting options to ensure optimal radio coverage. It can be installed with a 1" swivel fitting at the top of the mast, on the side of the mast or on the spreader. In addition, the PROCOM FLG mounting flange allows the antenna to be mounted on the deck or cabin roof of a ship. It is recommended to mount the antenna as high as possible to ensure the best radio coverage.Technical features:The CXL 2-1/... is characterized by its Lambda 1/2 construction, which does not require ground planes, load coils or counterweight rods, simplifying installation and increasing operational efficiency. The antenna is designed for use with duplex radio systems as well as on semi-duplex channels and offers impeccable VSWR in both the receive and transmit frequency ranges. This ensures excellent radio communication without frequency interference.Environmental resistance:The radiating element of the antenna is encapsulated in a tapered protective fiberglass tube that ensures interference-free performance in all climate conditions. In addition, all metal parts of the antenna are grounded, resulting in a DC short circuit through the coaxial cable and providing additional protection against static discharge.Installation instructions:When installing the antenna, care should be taken to ensure that it is not mounted parallel or in close proximity to metal parts such as mast tubes or cables, as this may affect the VSWR and radiation pattern.

Current selection:CXL 2-3C/s: 137 - 150 MHzCXL 2-3C/l: 144 - 157 MHzCXL 2-3C/m: 153 - 166 MHz ← Current selectionCXL 2-3C/h: 162 - 175 MHzCXL 2-3C/... is a robust, vertically polarized, omnidirectional 3 dBd fixed antenna that covers the 160 MHz band in 4 models with 4 MHz overlap each.The antenna features our "C" mast mount for high loads, made of epoxy-coated, rustproof aluminum as well as stainless steel U-bolts and mounting nuts.CXL 2-3C/... is suitable for mounting on pole tubes with a diameter of 27 - 65 mm. The cable can be routed either outside or inside the pole tube.The phase position for the radiating elements is designed for maximum gain in the horizontal direction, the side lobes are reduced to a minimum. Particular emphasis was placed on a high bandwidth in terms of both VSWR and gain.The carefully designed radiating broadband element is encapsulated in a protective fiberglass tube to protect it from all climatic influences.To significantly reduce atmospheric noise, all metal parts of the antenna are DC earthed. The antenna therefore has a DC short circuit across the coaxial cable.CXL 3-2C is designed for reliable performance in all climatic conditions.

Frequency ranges:CXL 2-3LW/s: 139 - 147 MHz CXL 2-3LW/l: 146 - 155 MHzCXL 2-3LW/lm: 153 - 162 MHzCXL 2-3LW/hm: 158 - 167 MHz ← Selected model CXL 2-3LW/h: 166 - 175 MHzThe CXL 2-3LW/... is an advanced fixed station and maritime antenna that offers exceptional performance in the VHF band. This model is characterized by its vertical polarization and omnidirectional orientation, with a gain of 3 dBd, making it ideal for a wide range of applications.Construction and material:The antenna has a robust mast base made of epoxy-coated, lightweight, stainless aluminum ("LW"), which is known for its indestructibility. It is supplied with stainless steel mounting clamps and nuts for easy installation and long-lasting reliability. The antenna can be mounted on vertical or horizontal mast tubes with an outer diameter of 16-54 mm and the cable can be routed either inside or outside the mast tube.Technical features:With a wide bandwidth in terms of standing wave ratio (VSWR) and gain, the antenna enables flexible and efficient use. The phasing of the radiating elements is optimized for maximum gain in the horizontal direction, while sidelobes are minimized to reduce interference. The radiating element is encapsulated in a high-quality, conical protective tube made of glass fibre, which protects against corrosive influences and minimizes wind pressure.Protection and safety:To reduce atmospheric noise and increase operational safety, all metal parts of the antenna are DC earthed. This results in a DC short circuit through the coaxial cable, which provides additional protection against static discharges. The antenna is specially designed for use in demanding environments and is vibration-proof, corrosion-resistant and extremely durable.Areas of application:Thanks to its modern, slim design and versatile mounting options, the CXL 2-3LW/... is ideal for maritime applications and stationary installations where reliable VHF communication is required.

Frequency ranges:CXL 2-3LW/s: 139 - 147 MHz CXL 2-3LW/l: 146 - 155 MHz ← Selected modelCXL 2-3LW/lm: 153 - 162 MHzCXL 2-3LW/hm: 158 - 167 MHz CXL 2-3LW/h: 166 - 175 MHzThe CXL 2-3LW/... is an advanced fixed station and maritime antenna that offers exceptional performance in the VHF band. This model is characterized by its vertical polarization and omnidirectional orientation, with a gain of 3 dBd, making it ideal for a wide range of applications.Construction and material:The antenna has a robust mast base made of epoxy-coated, lightweight, stainless aluminum ("LW"), which is known for its indestructibility. It is supplied with stainless steel mounting clamps and nuts for easy installation and long-lasting reliability. The antenna can be mounted on vertical or horizontal mast tubes with an outer diameter of 16-54 mm and the cable can be routed either inside or outside the mast tube.Technical features:With a wide bandwidth in terms of standing wave ratio (VSWR) and gain, the antenna enables flexible and efficient use. The phasing of the radiating elements is optimized for maximum gain in the horizontal direction, while sidelobes are minimized to reduce interference. The radiating element is encapsulated in a high-quality, conical protective tube made of glass fibre, which protects against corrosive influences and minimizes wind pressure.Protection and safety:To reduce atmospheric noise and increase operational safety, all metal parts of the antenna are DC earthed. This results in a DC short circuit through the coaxial cable, which provides additional protection against static discharges. The antenna is specially designed for use in demanding environments and is vibration-proof, corrosion-resistant and extremely durable.Areas of application:Thanks to its modern, slim design and versatile mounting options, the CXL 2-3LW/... is ideal for maritime applications and stationary installations where reliable VHF communication is required.

Frequency ranges:CXL 2-3LW/s: 139 - 147 MHz CXL 2-3LW/l: 146 - 155 MHzCXL 2-3LW/lm: 153 - 162 MHz ← Selected modelCXL 2-3LW/hm: 158 - 167 MHz CXL 2-3LW/h: 166 - 175 MHzThe CXL 2-3LW/... is an advanced fixed station and maritime antenna that offers exceptional performance in the VHF band. This model is characterized by its vertical polarization and omnidirectional orientation, with a gain of 3 dBd, making it ideal for a wide range of applications.Construction and material:The antenna has a robust mast base made of epoxy-coated, lightweight, stainless aluminum ("LW"), which is known for its indestructibility. It is supplied with stainless steel mounting clamps and nuts for easy installation and long-lasting reliability. The antenna can be mounted on vertical or horizontal mast tubes with an outer diameter of 16-54 mm and the cable can be routed either inside or outside the mast tube.Technical features:With a wide bandwidth in terms of standing wave ratio (VSWR) and gain, the antenna enables flexible and efficient use. The phasing of the radiating elements is optimized for maximum gain in the horizontal direction, while sidelobes are minimized to reduce interference. The radiating element is encapsulated in a high-quality, conical protective tube made of glass fibre, which protects against corrosive influences and minimizes wind pressure.Protection and safety:To reduce atmospheric noise and increase operational safety, all metal parts of the antenna are DC earthed. This results in a DC short circuit through the coaxial cable, which provides additional protection against static discharges. The antenna is specially designed for use in demanding environments and is vibration-proof, corrosion-resistant and extremely durable.Areas of application:Thanks to its modern, slim design and versatile mounting options, the CXL 2-3LW/... is ideal for maritime applications and stationary installations where reliable VHF communication is required.

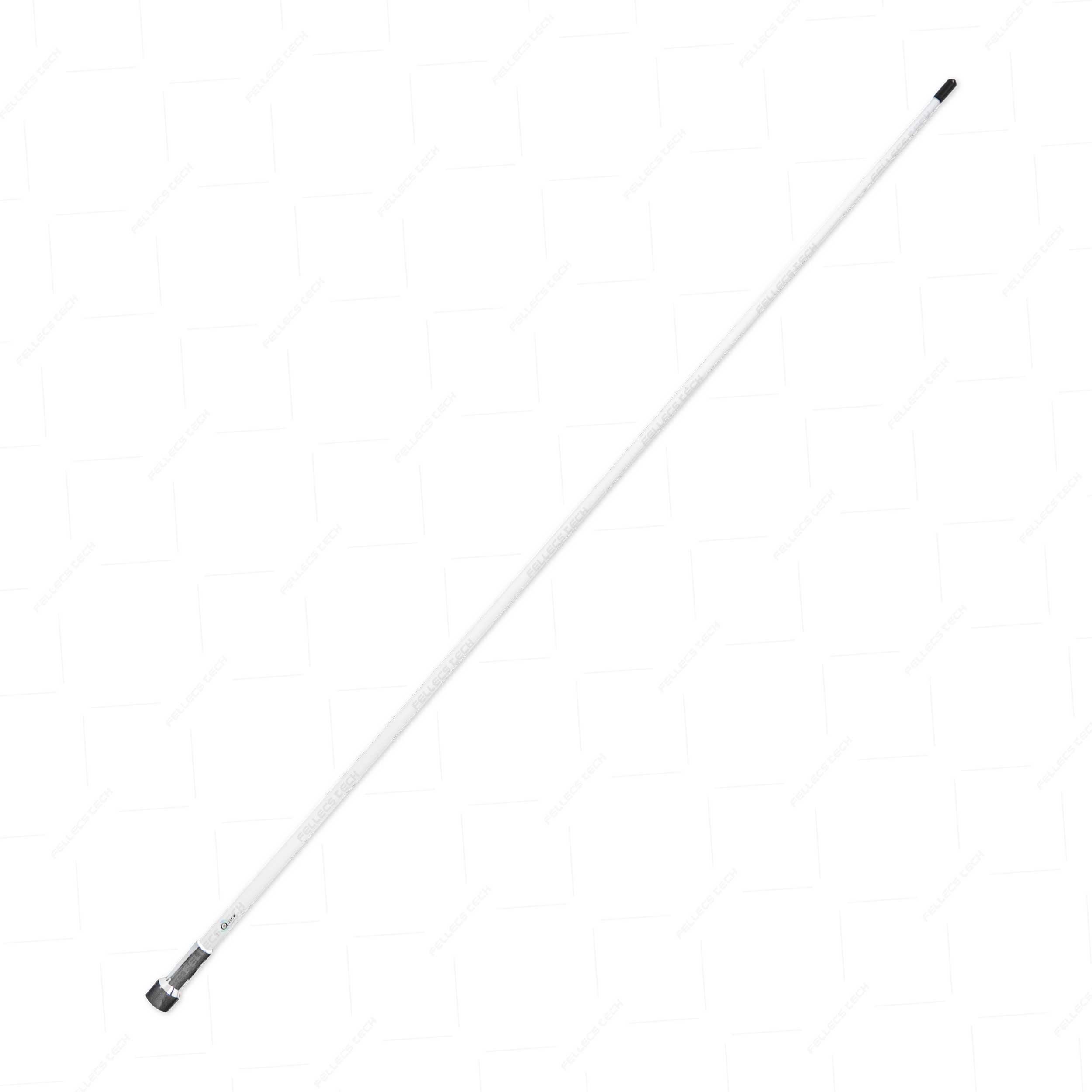

Specifications of this version:Quick Connect connectordB: 3dBLength: 1.2mMaterial: white fiberglass, chrome ferruleThe QuickConnect™ antennas are based on the popularity of the quick connect feature of Shakespeare's high quality Phase III® marine antennas. The QuickConnect™ product line offers you the ability to easily and quickly connect and disconnect your marine antenna in a range of entry-level antennas.QuickConnect™ system: Unscrew or unscrew the antenna to disconnect or connectHigh-quality connection: No interference due to vibrationsSplash protection cap: Protects the connection on the bracket when the antenna is disconnectedCenterpin® PL-259 connector: Easy crimping of the connectorOther features of the QuickConnect series:The supplied connector is only suitable for use with QuickConnect® mounts.One-piece antennas with a VSWR of <1.5:1 at 156.8 MHzMaximum input power of 50 wattsBandwidth of 5 MHz within a VSWR of 2.0:1Does not contain a built-in DC ground connection (read open)

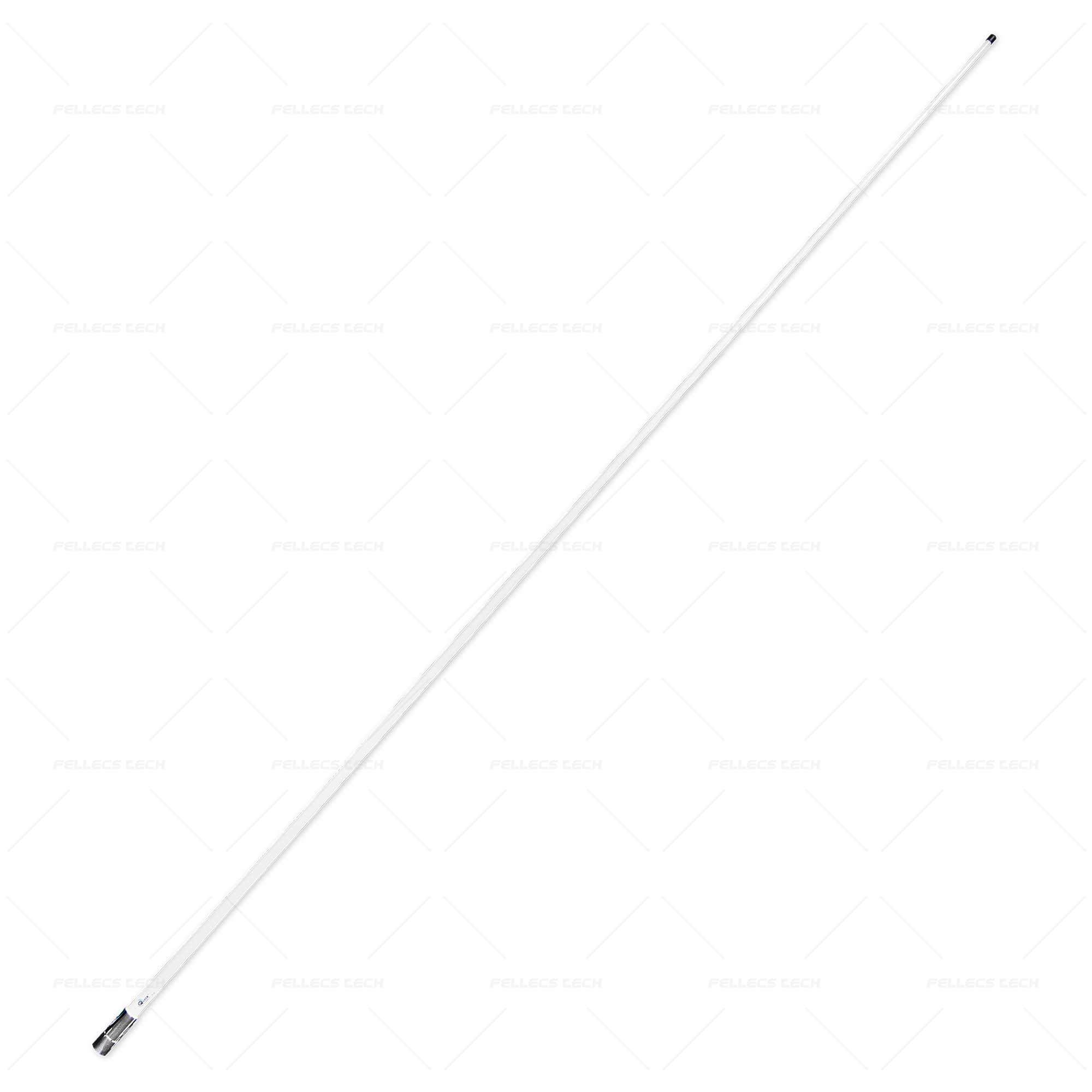

Specifications of this version:Quick Connect connectordB: 6dBLength: 2.4 mMaterial: white fiberglass, chrome ferruleThe QuickConnect™ antennas are based on the popularity of the quick connect feature of Shakespeare's high quality Phase III® marine antennas. The QuickConnect™ product line offers you the ability to easily and quickly connect and disconnect your marine antenna in a range of entry-level antennas.QuickConnect™ system: Unscrew or unscrew the antenna to disconnect or connectHigh-quality connection: No interference due to vibrationsSplash protection cap: Protects the connection on the bracket when the antenna is disconnectedCenterpin® PL-259 connector: Easy crimping of the connectorOther features of the QuickConnect series:The supplied connector is only suitable for use with QuickConnect® mounts.One-piece antennas with a VSWR of <1.5:1 at 156.8 MHzMaximum input power of 50 wattsBandwidth of 5 MHz within a VSWR of 2.0:1Does not contain a built-in DC ground connection (read open)

Titan Strahler 1/4 Lambda 135-185 MHzANTENNA TYPE Super-flexible full ¼ λ TITANIUM whip antenna with integrated FME connector FREQUENCY 135-185 MHz (Cutting table included) IMPEDANCE Nom. 50 Ohm POLARISATION Vertical GAIN 0 dB (2,15 dBi) BANDWIDTH VSWR 20 MHz < 2.0   at freq. res. MAX. POWER 50 Watt COLOUR Black LENGTH (WHIP) Max. 520 mm (depending on freq.) WEIGHT Approx. 35 g (depending on freq.) MATERIAL POM, PE, TITANIUM alloy, copper and brass CONNECTOR FME (f)
