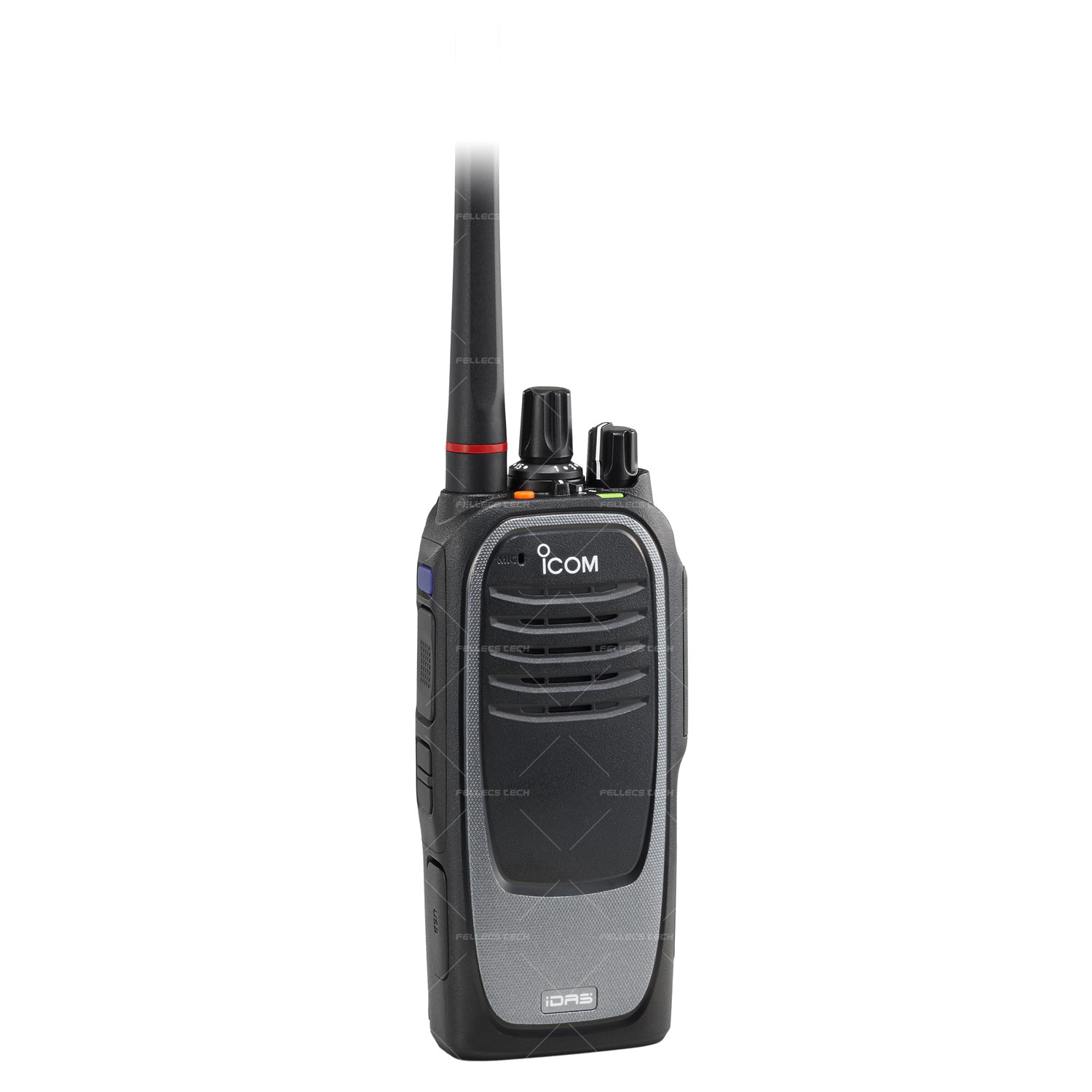

ICOM IC-F3400D VHF

€783.33

No longer available

Free shipping within Germany

There is a follow-up article for this article:

ICOM IC-F3400DS VHF

€748.43 €860.17 (12.99% saved - Online store benefit)

Product number: 166273

Details

Product number: 166274

Manufacturer number: IC-F3400D VHF

Advantages

Small, flat and smart
NXDN™ trunking upgrade
Sophisticated emergency functions

Product information "ICOM IC-F3400D VHF"

The IDAS IC-F3400D/IC-F4400D series from ICOM offers a comprehensive range of functions and improvements for professional communication in various areas.

Compact and robust design:

Small, flat and lightweight: ideal for mobile use thanks to new design techniques and flat keypad.
Robust construction: Meets MIL-STD-810G standards for shock, vibration, temperature and other environmental conditions.
Waterproof (IP68) and dustproof: Suitable for use in harsh environments.
AquaQuake™ function: Removes water from the speaker and ensures clear audio quality

Improved communication functions:

Digital and analog mode: flexible operating system allows use in both digital NXDN mode and analog mode.
Trunking: Efficient channel management through NXDN Type-D single-site trunking and multi-site trunking. (Depending on version / additional licenses required)
Encryption: DES, AES and OTAR encryption for secure communication of sensitive data. (Version-dependent / additional licenses required)

Comprehensive GPS functionality:

Built-in GPS receiver: provides position data for AVL (Automatic Vehicle Location) applications and location determination.
GPS log function: Records position data to track routes and activities.

Bluetooth® for wireless communication:

Built-in Bluetooth® module: Enables pairing with headsets, speakers and other devices.
Wireless data transfer: Exchange data with other Bluetooth®-enabled devices.
Wireless radio programming: Easy configuration of radio settings via a Bluetooth® connection. (OTAP software required)

Comprehensive emergency call functions for greater safety:

Emergency call button: quickly sends a call for help in an emergency.
Man-down function: Detects a fall and automatically sends an emergency call.
Lone worker function: Monitors the user's inactivity and sends an emergency call in the event of prolonged inactivity.
Movement/stationary detection: Identifies deviations from normal movement patterns and sends an emergency call in the event of irregularities.

Other useful functions:

Voice announcement: Reproduces channel numbers, zones and channel types acoustically.
VOX function: Enables hands-free operation through voice recognition.
Voice recording/playback: Documents radio conversations for later analysis.
Audio equalizer: Adjusts the sound quality to individual preferences and ambient conditions.
Noise canceling: Suppresses disturbing background noise for clear audio quality.
Programmable vibration alarm and ringtone: Provides acoustic and haptic notifications.
14-pin accessory port: Extends functionality with optional accessories.
Micro SD card slot: Provides additional storage space for voice recordings and other data.

Variants and functions at a glance:

The ICOM IDAS two-way radios are available in different versions, which differ in terms of their functions and features.

VHF models:

IC-F3400DT: Color display, complete keypad, trunking, GPS, Bluetooth®, emergency call functions
IC-F3400DS: Color display, front function keys, trunking, GPS, Bluetooth®, emergency call functions
IC-F3400D: (discontinued 2023) without display, without keypad, trunking, GPS, Bluetooth®, emergency call functions

UHF models:

IC-F4400DT: color display, full keypad, trunking, GPS, Bluetooth®, emergency call functions
IC-F4400DS: color display, front function keys, trunking, GPS, Bluetooth®, emergency call functions
IC-F4400D: (discontinued 2023) without display, without keypad, trunking, GPS, Bluetooth®, emergency call functions

Further information on the individual models and their functions can be found in the brochure in our downloads.

Scope of delivery:

Lithium-ion battery BP-303
Belt clip MB-133
Operating instructions

Note: Chargers and antennas must be ordered separately as required and are not included in the scope of delivery. You can find suitable products in our accessories overview.

Properties and specifications

Frequenzbereich:	VHF (2m band)
Geräteserie:	ICOM IC-F3400/4400
Anschlussart-Zubehör:	ICOM 14-pin multipin connector
Anzahl Kanäle:	Up to 1024 channels
Ausverkauft:	1
Betriebsart:	Analog, Digital-NXDN
Bluetooth:	1
Bluetooth® Indoor Lokalisierung (via Beacons):	No
Capacity Plus (Single-Site Trunking):	Yes, with additional license
Display:	No, without display
GNSS / GPS:	1
Kanalabstand:	6.25 kHz, 12.5 kHz
NXDN-Klasse:	NXDN™ Type-D Multi-Site Trunking, NXDN™ Type-D single-site trunking, NXDN™ conventional
Notfalloptionen:	Emergency button, Lone worker protection (license may be required), Man-Down (possible license required), Motion sensor (license may be required)
Nutzerklasse:	Professional
Over-the-Air-Programmierung (OTAP):	Yes, OTAP possible
Programmierbare Funktionstasten (Anzahl eingeben):	4
Schutzart:	IP68
Sendeleistung:	Up to 5 watts
Stromversorgung:	Rechargeable battery/battery pack
Tasten/Tastatur:	With function keys on the side
VHF:	Digital
Verschlüsselungsmodi:	256-bit AES encryption - Additional license required
Abmessungen (Länge/Breite/Höhe):	53,6 × 123,5 × 29,3 mm

Technical documents, flyers and downloads

Icom PMR catalog German

pdf | 10.68 MB

Download

Icom PMR catalog English

pdf | 12.79 MB

Download

IC-F3400/5400 Operating Instructions German

pdf | 6.38 MB

Download

IC-F3400 Quick Guide German

pdf | 1.20 MB

Download

IC-F3400 Brochure German

pdf | 1.85 MB

Download

IC-F3400 Brochure Englisch

pdf | 2.73 MB

Download

0 of 0 reviews

Leave a review!

Share your experiences with other customers.

Login

Your email address

Your password

Display reviews in current language only.

No reviews found. Share your insights with others.

Accessories overview

Article image	Item number	Article name	Brief description	Availability	Recommendation	Price	Shopping cart
	166016	ICOM BP-303	Li-Ion battery (7.2 V); 3,200 mAh (min.) / 3350 mAh (typ.)	Available, delivery time: 1-3 working days		€144.14*

Item number	Article name	Brief description	Availability	Price
166092	ICOM FA-S83VS	Ultra-short VHF antenna (160-174 MHz), 80 mm	available to order, please ask us for the delivery time	€23.40*
166091	ICOM FA-S83V	VHF antenna (160-174 MHz), 180 mm	available to order, please ask us for the delivery time	€23.40*
166089	ICOM FA-S82VS	Ultra-short VHF antenna (148-162 MHz), 80 mm	available to order, please ask us for the delivery time	€23.40*
166088	ICOM FA-S82V	VHF antenna (148-162 MHz), 180 mm	available to order, please ask us for the delivery time	€23.40*
166085	ICOM FA-S81VS	Ultra-short VHF antenna (136-150 MHz), 80 mm	available to order, please ask us for the delivery time	€23.40*
166084	ICOM FA-S81V	VHF antenna (136-150 MHz), 180 mm	available to order, please ask us for the delivery time	€23.40*
166080	ICOM FA-S67VC	Shortenable VHF antenna (136-174 MHz)	available to order, please ask us for the delivery time	€21.90*

Item number	Article name	Brief description	Availability	Price
165953	ICOM MB-96N	Leather belt tag (swivel version)	available to order, please ask us for the delivery time	€30.34*
165952	ICOM MB-96FL	Leather belt hanger for fixed belt clip, longer version	available to order, please ask us for the delivery time	€33.63*
165951	ICOM MB-96F	Leather belt hanger for fixed belt clip	Available, delivery time: 1-3 working days	€26.33*
165948	ICOM MB-136	Belt clip (rotating version)	available to order, please ask us for the delivery time	€9.88*
165947	ICOM MB-133	Belt clip (Aligator clamp version)	Available, delivery time: 1-3 working days	€10.96*

Item number	Article name	Brief description	Availability	Price
165939	ICOM HS-97	Earpiece headset with throat microphone	available to order, please ask us for the delivery time	€34.21*
165938	ICOM HS-95	Behind-the-head headset with boom microphone	available to order, please ask us for the delivery time	€181.30*
165937	ICOM HS-94	Headset ear hook with boom microphone, 2.5 mm plug	available to order, please ask us for the delivery time	€22.81*
165905	ICOM AD-118	Accessory adapter for using accessories with 6-pin Hirose connector	available to order, please ask us for the delivery time	€67.52*

Item number	Article name	Brief description	Availability	Price
166269	ICOM VS-4MC	PTT unit and connection adapter for HS articles; VOX-compatible	available to order, please ask us for the delivery time	€106.03*
166196	ICOM OPC-2338	Cloning Cable (PC to device); 14-pin multi-connector to USB	available to order, please ask us for the delivery time	€109.77*
166185	ICOM OPC-1870	Handheld radio (14-pin connection) to handheld radio (14-pin connection)	available to order, please ask us for the delivery time	€104.67*
165961	ICOM OPC-515L	12 to 16 V DC power supply cable	available to order, please ask us for the delivery time	€15.01*
165959	ICOM OPC-2362	Cloning cable between mobile and handheld radio	available to order, please ask us for the delivery time	€84.31*

Item number	Article name	Brief description	Availability	Price
252884	ICOM BC-123SE (#62)	230V power supply unit (12V / 1 A)	Available, delivery time: 1-3 working days	€20.11*
165999	ICOM BC-225 #17	Intelligent charger (fast charger) incl. BC-123SE power adapter	available to order, please ask us for the delivery time	€101.05*
165996	ICOM BC-219N #28	Quick charger incl. power adapter BC-123SE	Available, delivery time: 1-3 working days	€53.97*
165993	ICOM BC-214N #63	Multiple charger for 6 batteries - Version #63	available to order, please ask us for the delivery time Free shipping within Germany	€356.40*
165967	ICOM PRO-89282	Active car charging cradle with cigarette lighter plug	Available, delivery time: 1-3 working days	€137.80*
165924	ICOM CP-23L	12 V cigarette lighter cable	Available, delivery time: 1-3 working days	€24.49*
165918	ICOM BC-242	230 V multi-plug power supply unit (12 V/1 A)	Available, delivery time: 1-3 working days	€20.84*
165917	ICOM BC-228	230V power supply unit (15 V/4 A)	available to order, please ask us for the delivery time	€64.50*
165916	ICOM BC-227 #23	Simple quick charger, incl. BC-123SE power adapter	available to order, please ask us for the delivery time	€52.28*
165915	ICOM BC-226 #17	Interconnectable charger (fast charger), without mains adapter	available to order, please ask us for the delivery time	€74.68*
165912	ICOM BC-157S	230 V switching power supply (12 V/6.6 A) for multi-chargers	Available, delivery time: 1-3 working days	€128.30*
165907	ICOM AD-132N	Charging adapter for BP-290, as supplied with BC-214 #23 / BC-214N #63	available to order, please ask us for the delivery time	€16.44*

Item number	Article name	Brief description	Availability	Price
166159	ICOM ISL-UGMTR	Activation key code for NXDN™ Type D trunking upgrade	available to order, please ask us for the delivery time	€151.73*
166158	ICOM ISL-AKAES	Activation key code for AES (Advanced Encryption Standard)	available to order, please ask us for the delivery time Free shipping within Germany	€334.83*
165941	ICOM ISL-CHEX	Activation key code for channel expansion (to 4000 channels)	available to order, please ask us for the delivery time Free shipping within Germany	€502.39*
165940	ICOM ISL-AKASTM	Activation key code for dealer set mode	available to order, please ask us for the delivery time	€178.74*

Article image	Item number	Article name	Brief description	Availability	Recommendation	Price	Shopping cart
	166142	ICOM HM-222H	Waterproof loudspeaker microphone (IP68) with 3.5 mm earphone socket and emergency call button	available to order, please ask us for the delivery time		€144.14*
	166141	ICOM HM-222	Waterproof loudspeaker microphone (IP68) with 3.5 mm earphone socket and emergency call button	No longer available		€144.14*

Item number	Article name	Brief description	Availability	Price
166249	ICOM RS-BC225	Software for Windows® PC for intelligent battery management	available to order, please ask us for the delivery time Free shipping within Germany	€230.10*
166064	ICOM CS-OTPM1	OTAP (Over-the-Air-Programming) Software	Available, delivery time: 1-3 working days Free shipping within Germany	€424.46*
165927	ICOM CS-KLD2	Encryption Key Loader software (for devices with UT-134 and ISL-AKAES); software for customers	available to order, please ask us for the delivery time Free shipping within Germany	€685.61*
165925	ICOM CS-F3400D #01	Programming software for NXDN™ version	available to order, please ask us for the delivery time	€71.46*

Article image	Item number	Article name	Brief description	Availability	Recommendation	Price	Shopping cart
	165975	ICOM UT-134	AES/DES encryption unit (separate license required!)	available to order, please ask us for the delivery time		€178.74*

Item number	Article name	Brief description	Availability	Price
166168	ICOM LC-F3400DT	Leather bag incl. shoulder strap and belt loop	available to order, please ask us for the delivery time	€55.39*
166161	ICOM LC-186	Leather case (protective bag) for DP and D versions without display	available to order, please ask us for the delivery time	€55.65*
166160	ICOM LC-184	Hard leather case (protective bag) for DPT/DPS, DT/DS versions with display cut-out	available to order, please ask us for the delivery time	€61.77*
