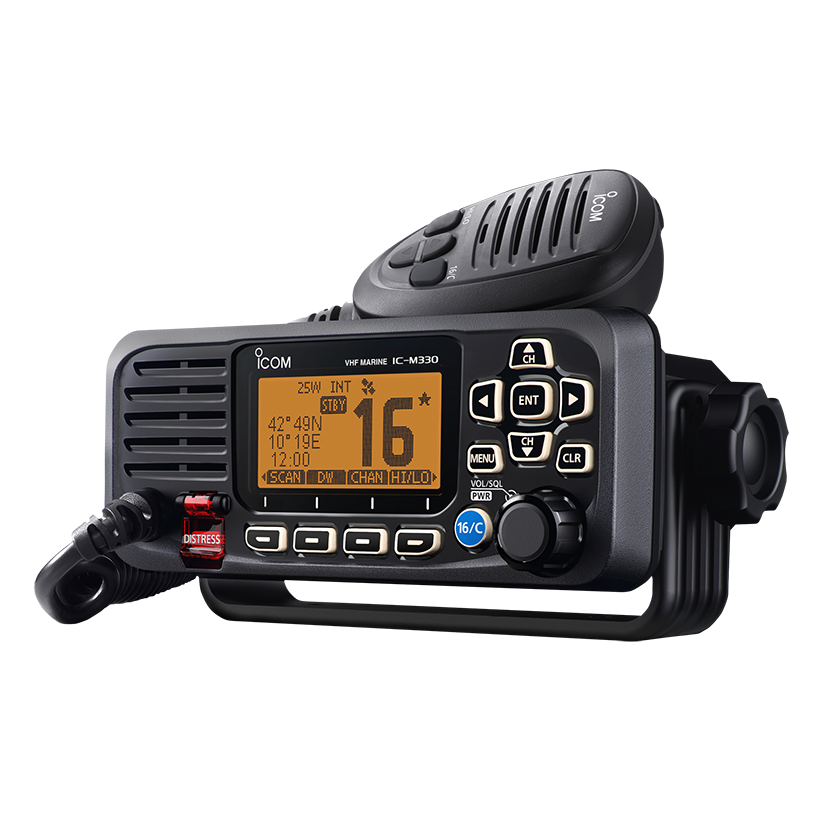

Product information "ICOM IC-M330GE"

The Icom IC-M330GE is a compact VHF marine radio with built-in GPS and DSC, ideal for boats with limited space. It features easy operation, reliable performance, and high quality.

Key features:

  • Ultra-compact housing: With dimensions of only 156.5 mm (W) x 66.5 mm (H) x 110.1 mm (D), the IC-M330GE is one of the smallest flush-mount radios on the market.
  • Intuitive user interface: The combination of navigation keys and softkeys allows for easy and intuitive operation.
  • Clear and dynamic audio: The newly designed speaker delivers distortion-free audio even at full volume.
  • High receiver performance: The IC-M330GE's receiver provides reliable communication even in crowded RF environments.
  • Built-in Class-D DSC: The DSC controller monitors Channel 70 (DSC channel) continuously, even while you are receiving on another channel. It offers functions such as distress, individual and group calls, all ships calls, urgency and safety calls, position request/report calls, polling request and DSC test calls.
  • Built-in GPS receiver: The IC-M330GE's GPS receiver determines your position, course, and speed using data from GPS, GLONASS, and SBAS satellites. The position data can be used for DSC calls.
  • AIS target calling (with optional MA-500TR AIS transponder): This feature allows you to make an individual DSC call to an AIS target from the MA-500TR without having to manually enter the MMSI number on the radio.
  • IPX7 waterproof: The IC-M330GE is IPX7 waterproof, making it suitable for use in harsh environments.
  • AquaQuake™: The AquaQuake™ feature prevents sound degradation caused by water in the speaker.
  • Additional features:
    • Standard NMEA interface (0183) for GPS and NAV connection
    • Dual/triple watch for monitoring Channel 16 and/or call channel simultaneously
    • Illuminated display and keypad
    • External speaker connection
    • Supplied hand microphone (HM-235B) with up/down keys and keys for Channel 16 and call channel

Scope of delivery:

  • Hand microphone (HM-235B)
  • Mounting bracket kit
    • 2 x thumbscrews
    • 2 x screws (5×20)
    • 2 x washers (M5)
    • 2 x lock washers (M5)
  • DC power cable
  • Microphone hanger with 2 screws (3×16)

Also available as a training system > See the accessories overview.

Properties and specifications

Frequenzbereich: VHF (2m band)
AIS-Funktion: Without AIS function
ATIS-Eingabe: Yes, one-time self-programming possible
DSC-Funktion (CH70): With Class D DSC
Display: Yes, with LCD display
Gerätetyp: Built-in radio
Kanal 16-Button: 1
MMSI-Eingabe: Yes, one-time self-programming possible
Multi-Watch: Dual-watch function, Triple watch function
NMEA-Anschluss: Yes, NMEA-0183
Schutzart: IPX7
Sendeleistung: Up to 25 watts
Stromversorgung: ± 12V DC
Tastenbeleuchtung: 1
WLAN: No
Abmessungen (Länge/Breite/Höhe): 156.5 × 66.5 × 88.2 mm

Technical documents, flyers and downloads

Icom Marine catalog German
pdf | 7.27 MB
IC-M330GE Brochure English
pdf | 1.63 MB
IC-M330GE Brochure German
pdf | 2.33 MB
IC-M330GE Basic-Manual Multi
pdf | 7.35 MB
IC-M330GE Full-Manual English
pdf | 9.67 MB
IC-M330GE Full-Manual German
pdf | 2.31 MB
ICOM Mounting Dimensions Guide
pdf | 1.75 MB
ICOM Marine catalog Englisch
pdf | 7.96 MB
IC-M330GE DOC
pdf | 1.28 MB

2 of 2 reviews

Average rating of 5 out of 5 stars


100%

0%

0%

0%

0%


Leave a review!

Share your experiences with other customers.


2 reviews

24 July 2024 19:45

Review with rating of 5 out of 5 stars

super

Wir sind sehr zufrieden mit unserem neuen Gerät.

Our feedback: Vielen Dank für Ihre Bewertung, es freut uns, dass Sie mit dem neuen Gerät zufrieden sind!

24 July 2024 19:44

Review with rating of 5 out of 5 stars

Top! - schnelle Lieferung!

Das IC-M330GE ist das erste Marinefunkgerät, das ich besitze und ich bin positiv überrascht von der einfachen Bedienung. Die Menüführung ist logisch aufgebaut und alle wichtigen Funktionen sind schnell erreichbar. Vielen Dank an FELLECS-TECH

Our feedback: Vielen Dank für Ihre Bewertung!

Accessories overview

Article image Item number Article name Brief description Availability Recommendation Price Shopping cart
209140
ICOM MA-510TR (#13)
Class B AIS Transponder

available to order, please ask us for the delivery time

Free shipping within Germany

€1,112.88*

Article image Item number Article name Brief description Availability Recommendation Price Shopping cart
253690
ICOM OPC-478UD
USB Programming cable

Available, delivery time: 1-3 working days

€57.76*
166066
ICOM DG-3975
Cable adapter cable for use with OPC-478UC/-1

Available, delivery time: 1-3 working days

€38.23*
165960
ICOM OPC-478UC-1
USB Programming cable

No longer available

€52.51*

Article image Item number Article name Brief description Availability Recommendation Price Shopping cart
166259
ICOM SP-37
Horn loudspeaker 30 W (max. 40 W), 4 Ω

available to order, please ask us for the delivery time

€89.26*

Article image Item number Article name Brief description Availability Recommendation Price Shopping cart
166145

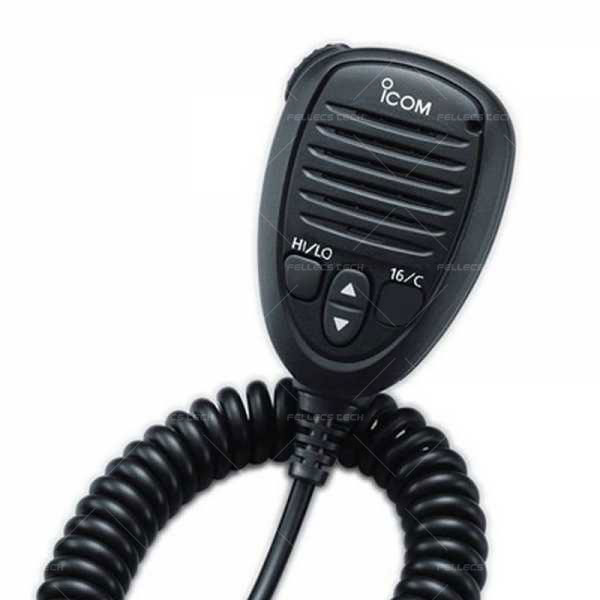

ICOM HM-235B
