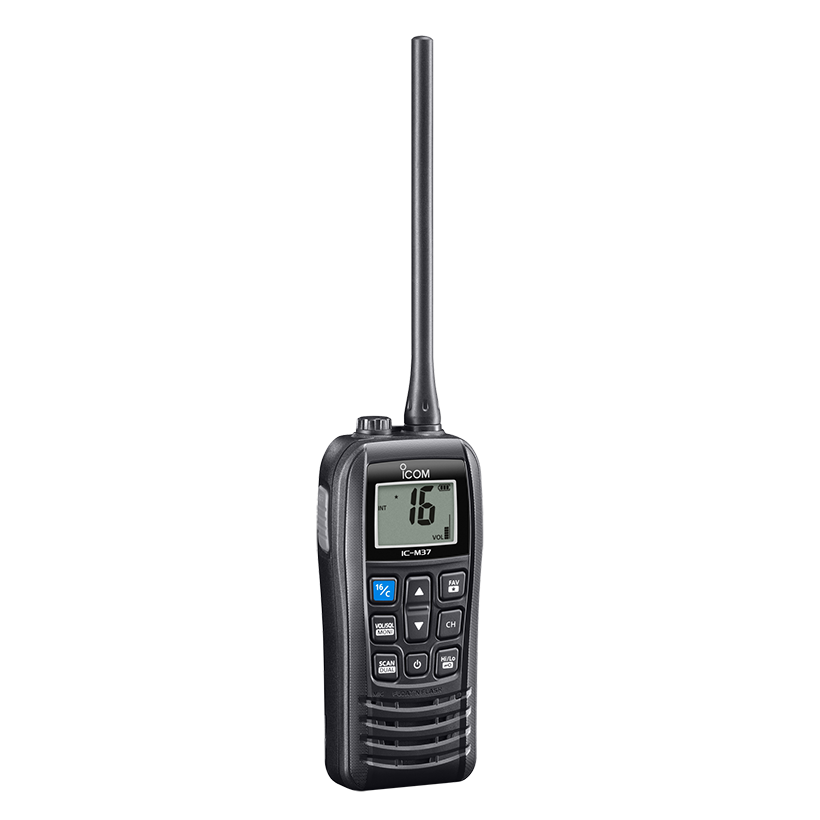

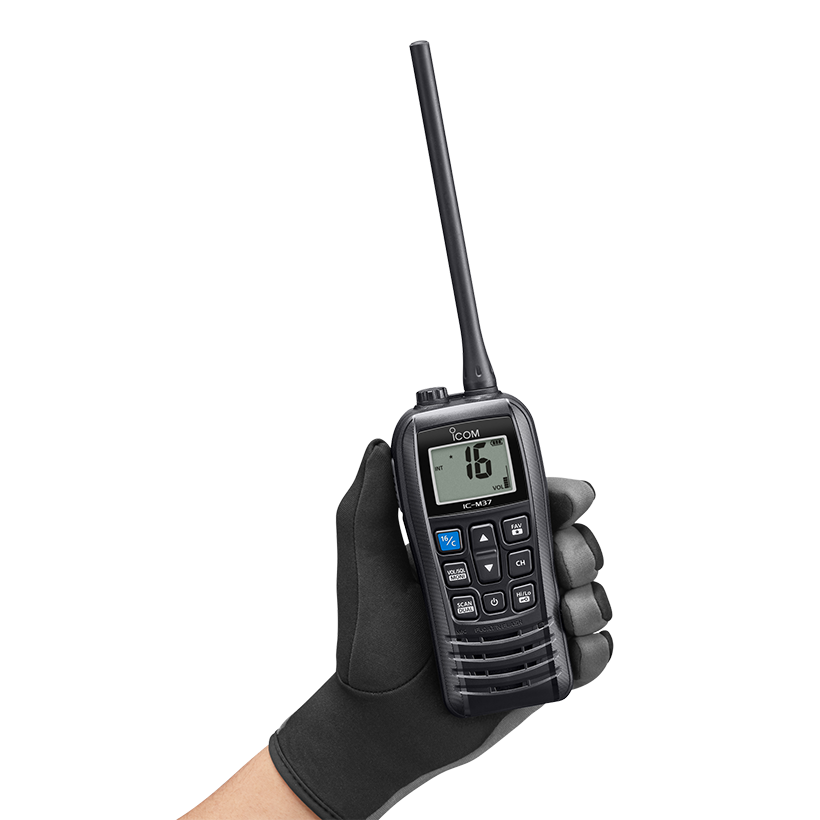

Product information "ICOM IC-M37E"

Whether on a leisurely boat trip or during demanding sailing regattas:: With the ICOM IC-M37E, you always have a reliable partner at your side to ensure smooth and safe communication at sea. This robust handheld radio impresses with its intuitive operation, versatile functions and high performance.

Intuitive operation and convenient use:

  • Large buttons and non-slip housing: easy operation even when wearing gloves.
  • 6 W transmission power: Extends the communication range.
  • 700 mW AF power: Clear and loud audio reproduction even in noisy environments.

Safety and reliability:

  • Float'n-Flash function: the device floats and flashes an LED on contact with water, makes it easier to find in water.
  • IP57 ingress protection: Dustproof and waterproof for up to 30 minutes at a depth of 1 meter.
  • AquaQuake™ function: Removes water from the speaker and ensures clear audio quality.
  • Low battery alarm function: reliably informs the user.

Practical functions:

  • Channel history function: Saves the last 5 channels for quick access.
  • Dual and tri-watch function: Monitors channel 16 and other channels simultaneously.
  • Immediate access to channel 16: For quick emergency calls.
  • Programmable call channel: Direct access to a frequently used channel.
  • Favorite channel function: Saves and recalls favorite channels quickly.

Long operating time:

  • 12 hours operating time: with the supplied rechargeable lithium-ion battery (BP-296).
  • Optional battery case: For 3 AAA alkaline batteries.

Other features:

  • External speaker-microphone connection: For more convenient communication.
  • Low Battery Alert function: Provides information on the battery charge status.
  • Voice Loud and Mute function: Temporary adjustment of the volume or mute function.
  • Illuminated LCD display: For good legibility even in the dark.
  • Versatile scan functions: Normal and priority scan.
  • Inland navigation radio (ATIS) possible: With programming of an ATIS code.

Scope of delivery:

  • IC-M37E handheld radio
  • Lithium-ion battery BP-296
  • Charger BC-235
  • Power supply unit BC-217SE
  • Belt clip MB-133
  • Antenna FA-SC59V
  • Hand strap

Notes:

  • The accessories of the predecessor ICOM IC-M35 are not compatible with the new ICOM IC-M37E.
  • With the optional accessory antenna adapter AD-98FSC, the IC-M37E can be connected to an external antenna via BNC connection. This provides an extended range.
  • No cigarette lighter cable is available for the IC-M37E charging cradle, but the charging cradle is powered by 5V and can therefore be charged on board using a USB port and micro USB cable.
  • The IC-M37E floats on the water surface when operated with AAA batteries. As the weight of the batteries varies slightly depending on the manufacturer, check the IC-M37E's ability to float in shallow water before using it.

This versatile and reliable handheld radio is suitable for both recreational and professional users.

Properties and specifications

Frequenzbereich: VHF (2m band)
AIS-Funktion: Without AIS function
ATIS-Eingabe: Yes, one-time self-programming possible
Anschlussart-Zubehör: ICOM jack (screwed)
DSC-Funktion (CH70): Without DSC function
Display: Yes, with LCD display
Gerätetyp: Handheld radio
Kanal 16-Button: 1
MMSI-Eingabe: No, not possible
Multi-Watch: Dual-watch function, Triple watch function
NMEA-Anschluss: No, no NMEA connection
Programmierbare Funktionstasten (Anzahl eingeben): 1
Schutzart: IP57
Sendeleistung: Up to 6 watts
Stromversorgung: Rechargeable battery/battery pack
WLAN: No
Abmessungen (Länge/Breite/Höhe): 59,7 × 140,5 × 38,7 mm

Technical documents, flyers and downloads

IC-M37E Brochure English
pdf | 2.09 MB
IC-M37E Brochure German
pdf | 4.41 MB
IC-M37E Basic operating instructions
pdf | 7.49 MB
IC-M37E Operating Instructions English
pdf | 4.21 MB
IC-M37E Operating Instructions German
pdf | 3.93 MB
ICOM Marine catalog Englisch
pdf | 7.96 MB
Icom Marine catalog German
pdf | 7.27 MB
BP-296 DOC
pdf | 643.85 KB
IC-M37E DOC
pdf | 634.48 KB

2 of 2 reviews

Average rating of 5 out of 5 stars


100%

0%

0%

0%

0%


Leave a review!

Share your experiences with other customers.


2 reviews

24 July 2024 19:40

Review with rating of 5 out of 5 stars

Perfekt für den gewerblichen Betrieb

Wir nutzen dieses Funkgerät auf unserer Schiffs-Flotte und sind damit sehr zufrieden. Von der Verarbeitung und den Funktionen übertrifft es nochmal das IC-M35 (Vorgängermodell)

24 July 2024 19:38

Review with rating of 5 out of 5 stars

Perfekt für Segeltörns

Das IC-M37 ist ein absolutes Muss für jeden Segler. Die klare Sprachqualität, selbst bei starkem Wind, und die robuste Bauweise machen es zum idealen Begleiter auf dem Wasser.

Accessories overview

Article image Item number Article name Brief description Availability Recommendation Price Shopping cart
166014
ICOM BP-296
Li-Ion battery 3.6 V/2200 mAh (min.) 2350 mAh (typ.)

Available, delivery time: 1-3 working days

€41.75*

Article image Item number Article name Brief description Availability Recommendation Price Shopping cart
166107
ICOM FA-SC59V
VHF Antenna (160 mm length)

Available, delivery time: 1-3 working days

€12.43*

Article image Item number Article name Brief description Availability Recommendation Price Shopping cart
165984

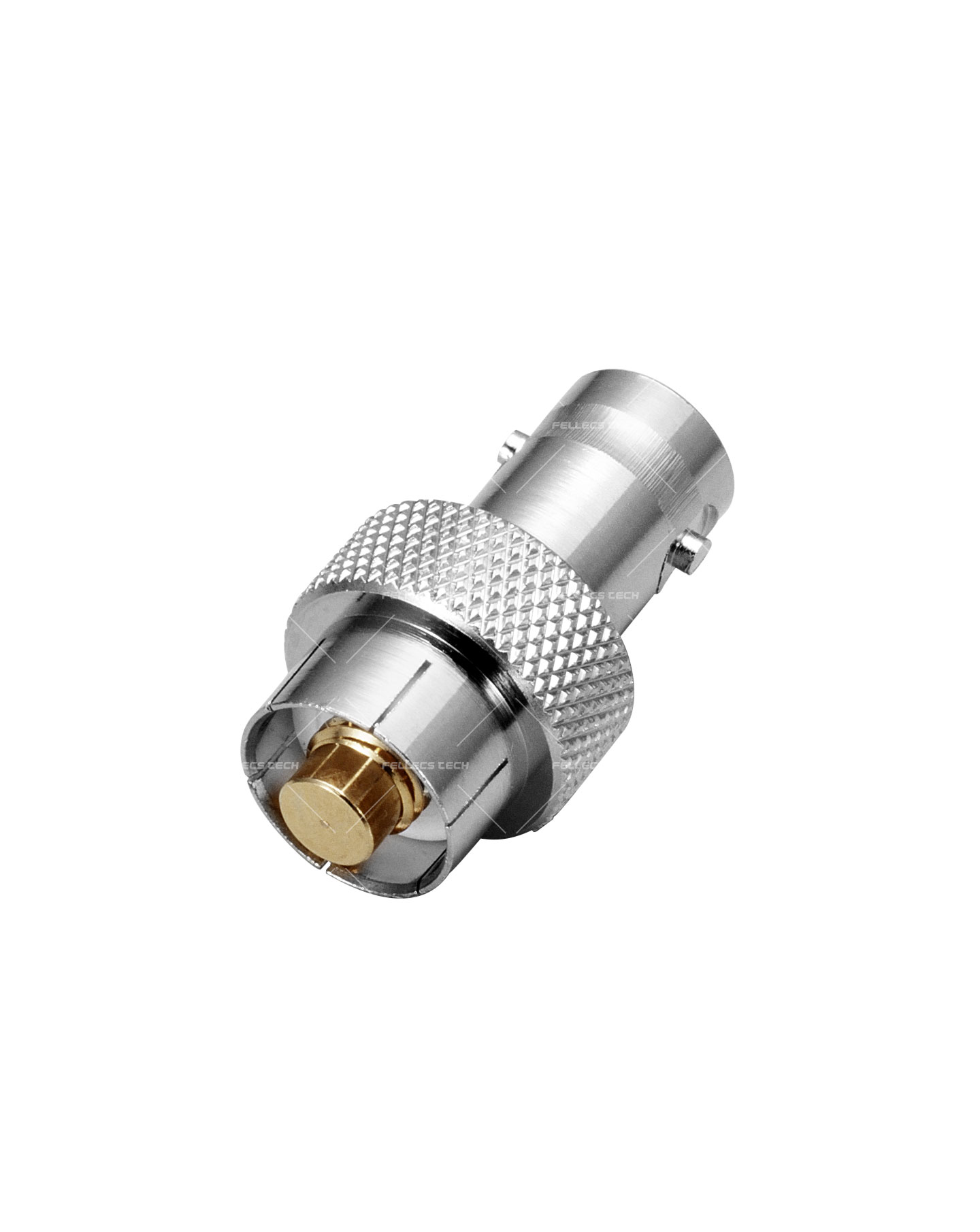

ICOM AD-98FSC
Antenna adapter from F-type screw connection (device) to BNC jack

Available, delivery time: 1-3 working days

€19.64*

Article image Item number Article name Brief description Availability Recommendation Price Shopping cart
166015
ICOM BP-297
Battery case for 3x AAA (LR03) alkaline batteries

Available, delivery time: 1-3 working days

€29.23*

Article image Item number Article name Brief description Availability Recommendation Price Shopping cart
165947
ICOM MB-133
Belt clip (Aligator clamp version)

Available, delivery time: 1-3 working days

€10.96*

Article image Item number Article name Brief description Availability Recommendation Price Shopping cart
256732

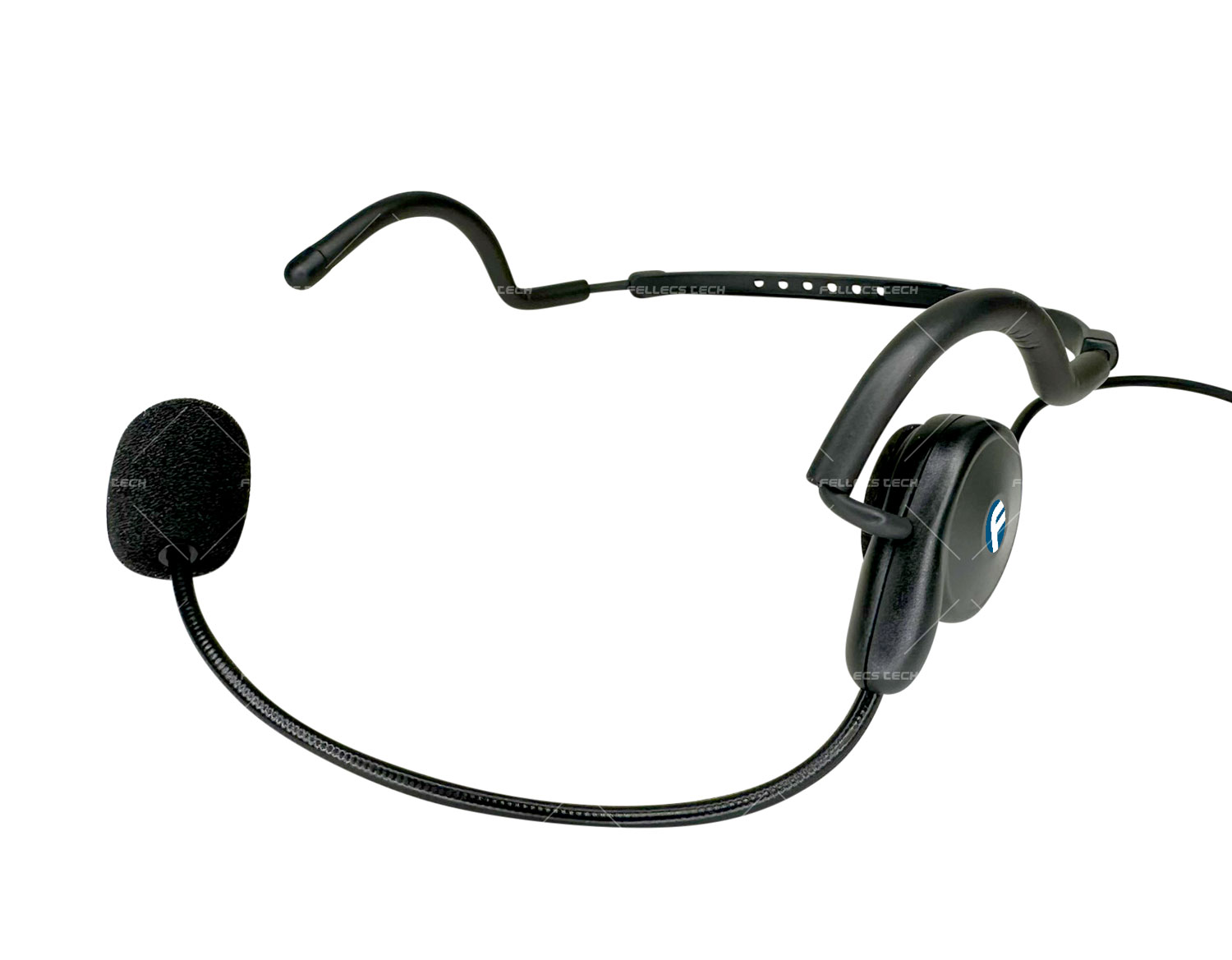

FELLECS-TECH FTN-BTH2-M35
Behind-the-head headset with in-line PTT

Available, delivery time: 1-3 working days

€185.64*

Article image Item number Article name Brief description Availability Recommendation Price Shopping cart
253690
ICOM OPC-478UD
USB Programming cable

Available, delivery time: 1-3 working days

€57.76*
165960
ICOM OPC-478UC-1
USB Programming cable

No longer available

€52.51*
165958
ICOM OPC-1655
Programming adapter cable

Available, delivery time: 1-3 working days

€48.23*

Article image Item number Article name Brief description Availability Recommendation Price Shopping cart
166004

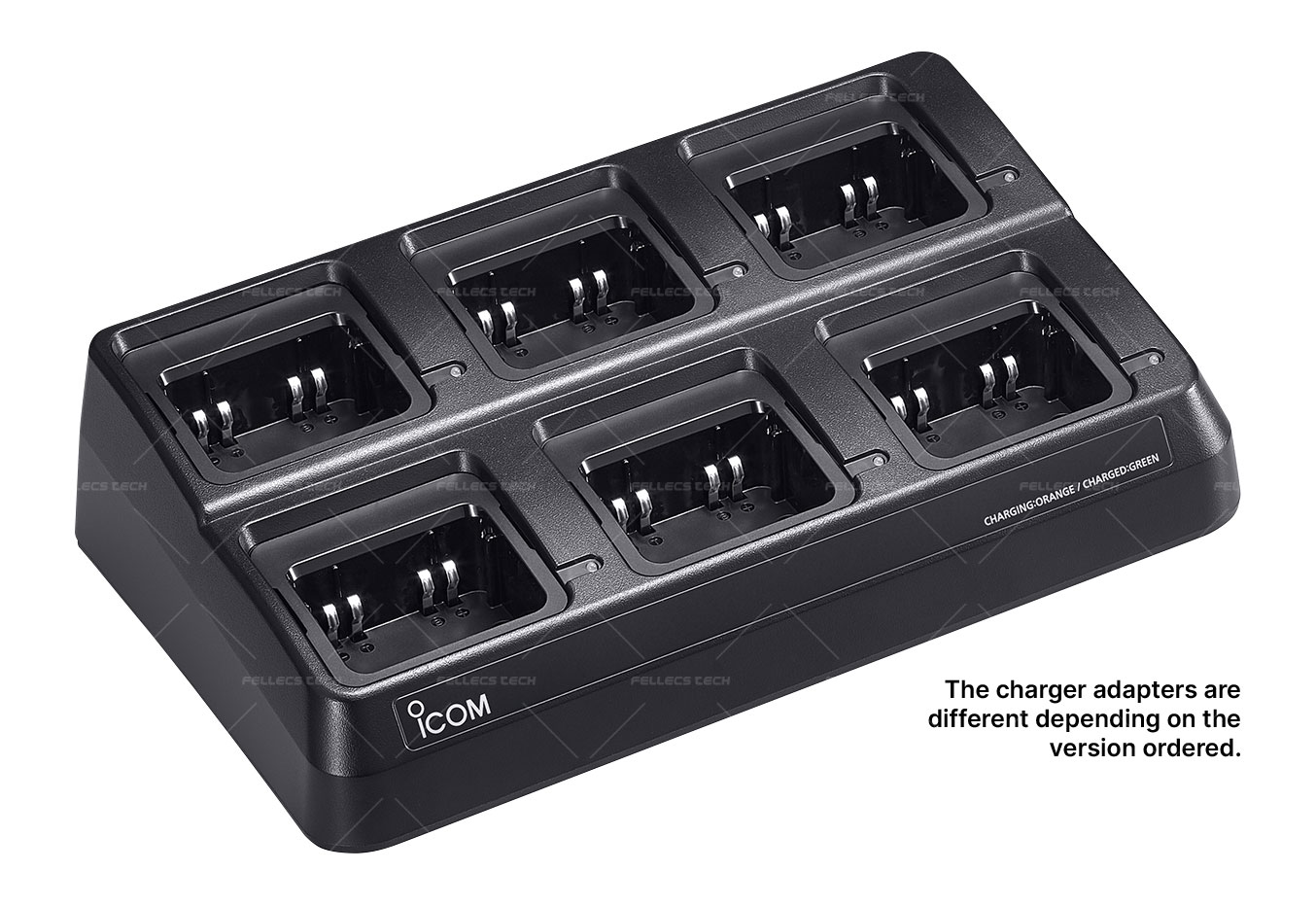

ICOM BC-238 (#12)
6-way multiple quick charger with DC cable

available to order, please ask us for the delivery time

Free shipping within Germany

€327.30*
166003

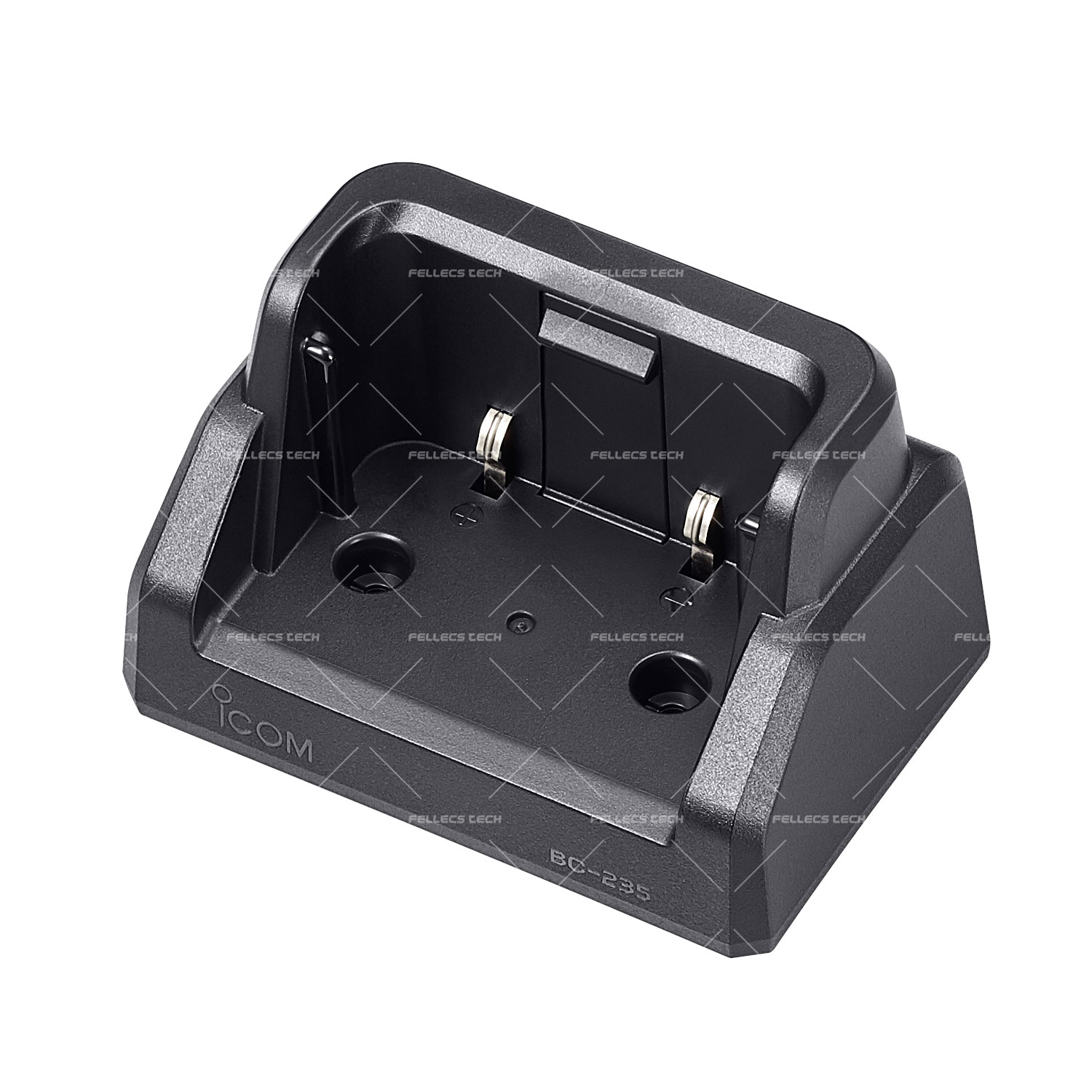

ICOM BC-235
Desktop quick charger without powe adapter

available to order, please ask us for the delivery time

€20.84*
165995

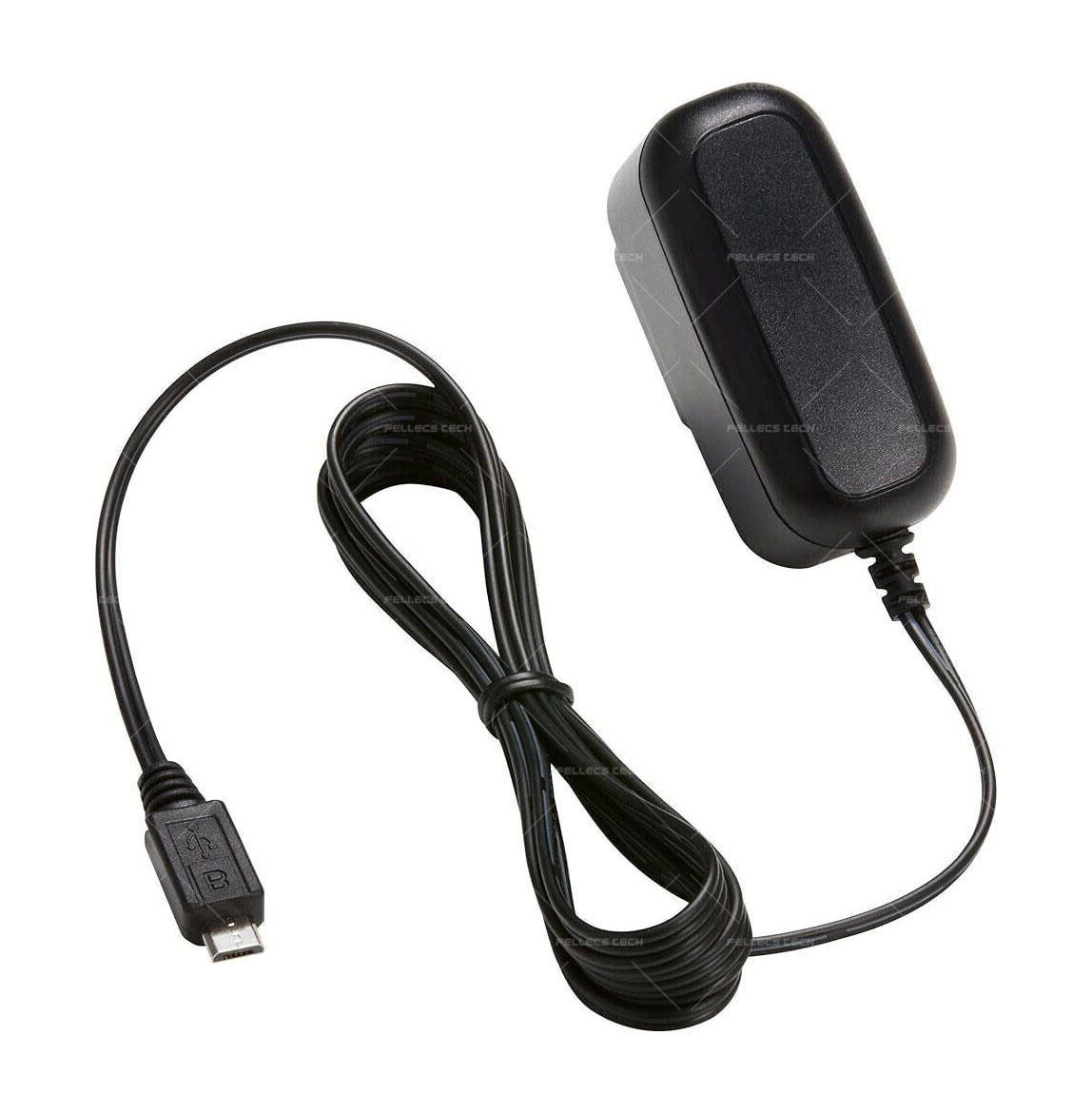

ICOM BC-217SE
Micro-USB charger 230V

Available, delivery time: 1-3 working days

€17.18*

Article image Item number Article name Brief description Availability Recommendation Price Shopping cart
166133

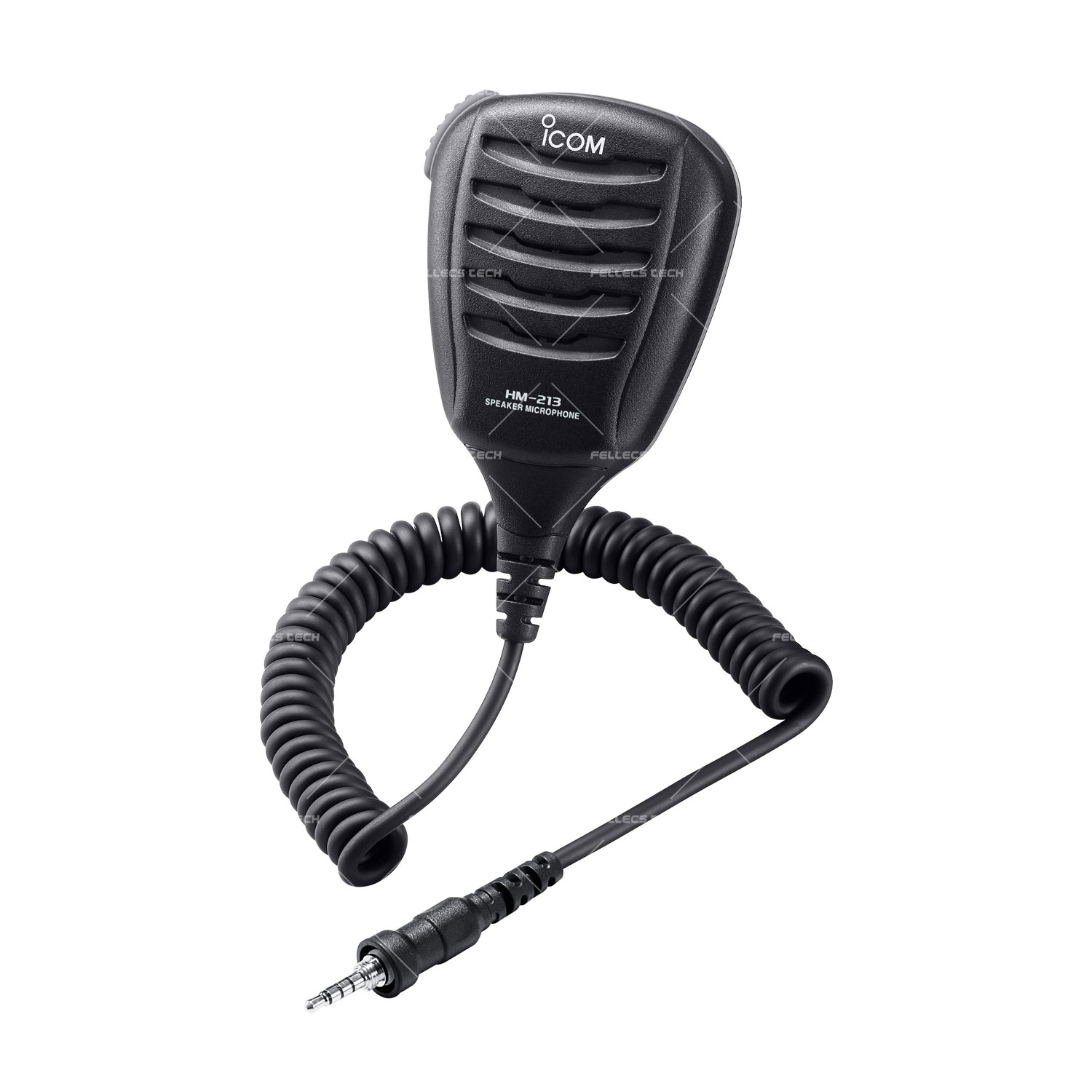

ICOM HM-213
Waterproof Remote speaker microphone (IPX7)

Available, delivery time: 1-3 working days

€92.66*

Article image Item number Article name Brief description Availability Recommendation Price Shopping cart
166052
ICOM CS-M37
Cloning software for IC-M37E

available to order, please ask us for the delivery time

€71.46*

Article image Item number Article name Brief description Availability Recommendation Price Shopping cart
166170
ICOM LC-M37
Leather case

Available, delivery time: 1-3 working days

€55.39*
