ICOM IC-M85E

€356.98

% €440.60 (18.98% saved - Online store benefit)

Available, delivery time: 1-3 working days

Free shipping within Germany

Product number: 209010

GTIN/EAN: 4909723158066

Manufacturer number: IC-M85E

Advantages

136-174 MHz channels, up to 100 PMR channels programmable
IP67 dustproof & waterproof, MIL-STD-810
Up to 21 hours battery life with BP-294 battery

Product information "ICOM IC-M85E"

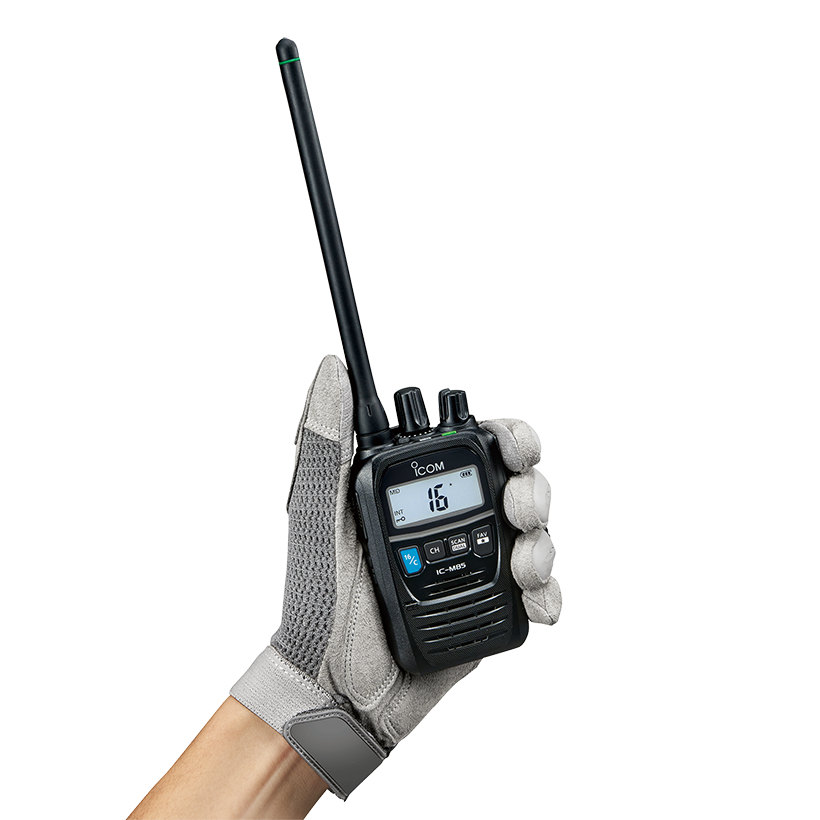

The ICOM IC-M85E is a compact and lightweight handheld transceiver that covers both marine VHF channels and business radio channels in the 136-174 MHz range. With its rugged construction, numerous features, and intuitive operation, it is ideal for use in a variety of environments.

Compact and Lightweight:

Measuring just 56 x 92 x 29 mm (W x H x D) and weighing approx. 246 g (including battery), the IC-M85E is one of the most compact and lightweight handheld transceivers on the market.
Ideal for on-the-go use where space and weight are limited.

Marine VHF and Business Radio in One:

In addition to standard marine VHF channels, the IC-M85E can also operate on business radio channels in the 136-174 MHz range.
Up to 100 programmable channels with CTCSS and DTCS tones provide flexible communication within your team or organization.
Note: Programming of business radio channels must be done by a dealer like FELLECS-TECH.

Powerful Audio Amplifier:

Despite its compact size, the IC-M85E delivers an impressive 700 mW of audio power.
Crystal-clear and loud communication even in noisy environments is thus ensured.

Automatic Emergency Alarm:

The IC-M85E features three emergency functions: MOB (Man Overboard), Man-Down, and Lone Worker.
In an emergency, the device automatically sends out an alarm tone to request assistance.
Note: The alarm tone sounds from the handheld transceiver's speaker, even if an optional speaker microphone is connected.

Intuitive Operation:

The multifunction button on the top of the device allows for easy switching between marine VHF and business radio channels.
The lock function can be activated or deactivated by long-pressing the button.
Other features such as priority scan, dual and triple watch, and direct access to channel 16 ensure easy and intuitive operation.

Rugged Construction:

The IC-M85E is IP67 dustproof and waterproof and can be submerged in 1 meter of water for up to 30 minutes.
It also meets the MIL-STD-810 standard for military equipment, making it suitable for use in harsh environments.

Additional Features:

AquaQuake™ function prevents sound impairment caused by water in the speaker
Built-in VOX function for hands-free operation (with optional cable with PTT button and headset)
Up to 21 hours of operating time with the supplied BP-294 battery
5 W transmit power
Self-test function for internal temperature and battery voltage
Inland waterway radio (ATIS) possible (with programmed ATIS code)

Scope of Delivery:

Li-Ion battery pack BP-294
Quick charger BC-227
AC adapter (230 V) BC-123SE
Antenna FA-SC58V
Belt clip MBB-3
Hand strap

The IC-M85E is a versatile and reliable handheld transceiver that is suitable for both professional and private use.

Note ATIS: The entry of an ATIS number is only possible once after programming by FELLECS-TECH for a fee.

Please contact your ICOM dealer for more information or to purchase the IC-M85E.

Properties and specifications

Frequenzbereich:	VHF (2m band)
AIS-Funktion:	Without AIS function
ATIS-Eingabe:	Yes, possible once after prior programming ( at a charge)
Anschlussart-Zubehör:	ICOM 14-pin multipin connector
DSC-Funktion (CH70):	Without DSC function
Display:	Yes, with LCD display
Gerätetyp:	Handheld radio
Kanal 16-Button:	1
MMSI-Eingabe:	No, not possible
Multi-Watch:	Dual-watch function, Triple watch function
NMEA-Anschluss:	No, no NMEA connection
Programmierbare Funktionstasten (Anzahl eingeben):	2
Schutzart:	IP67
Sendeleistung:	Up to 5 watts
Stromversorgung:	Rechargeable battery/battery pack
WLAN:	No
Abmessungen (Länge/Breite/Höhe):	56 × 92 × 36.2 mm (w/BP-294)

Technical documents, flyers and downloads

IC-M85E Brochure English

pdf | 2.36 MB

Download

IC-M85E Brochure German

pdf | 2.17 MB

Download

IC-M85E Operating Instructions German

pdf | 2.78 MB

Download

IC-M85E Basic operating instructions

pdf | 3.25 MB

Download

ICOM Marine catalog Englisch

pdf | 7.96 MB

Download

Icom Marine catalog German

pdf | 7.27 MB

Download

IC-M85E DOC

pdf | 623.89 KB

Download

0 of 0 reviews

Leave a review!

Share your experiences with other customers.

Login

Your email address

Your password

Display reviews in current language only.

No reviews found. Share your insights with others.

Accessories overview

Article image	Item number	Article name	Brief description	Availability	Recommendation	Price	Shopping cart
	165923	ICOM BP-294	7.2 V Li-ion battery pack, 3050 mAh (min) 3150 mAh (typ.)	Available, delivery time: 1-3 working days		€121.64*
	165921	ICOM BP-290	Li-Ion battery pack, 7.2 V, 2,010 mAh (typ.), 1,910 mAh (min.); IP67	No longer available		€94.08*

Article image	Item number	Article name	Brief description	Availability	Recommendation	Price	Shopping cart

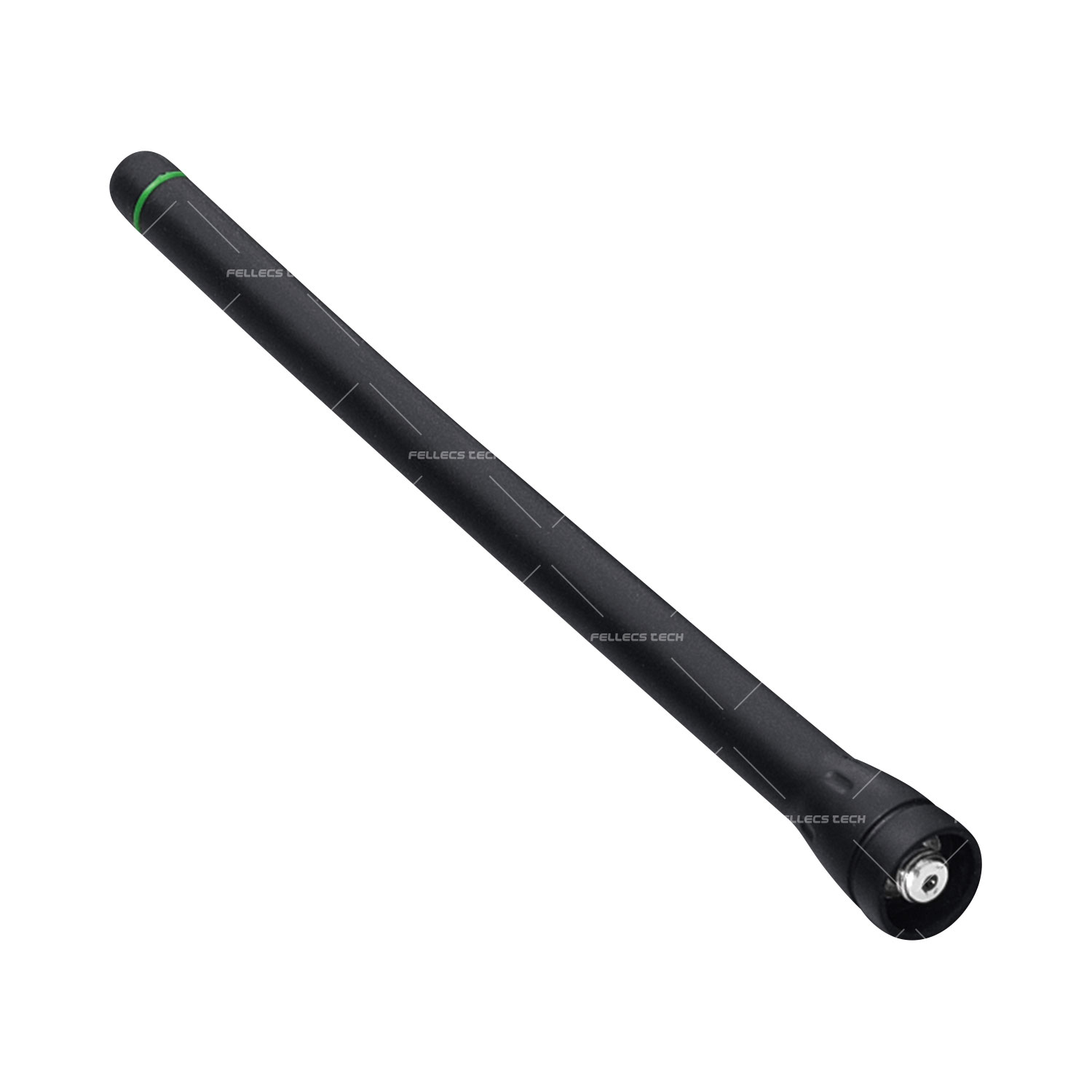

	166106	ICOM FA-SC58V	Helical antenna (163 mm length)	Available, delivery time: 1-3 working days		€11.32*

Article image	Item number	Article name	Brief description	Availability	Recommendation	Price	Shopping cart
	165922	ICOM BP-291	Battery housing for 5 x LR6 (AA) alkaline batteries; IP54	available to order, please ask us for the delivery time		€47.53*

Item number	Article name	Brief description	Availability	Price
165955	ICOM MBB-3	Belt clip (clamp version)	Available, delivery time: 1-3 working days	€10.42*
165953	ICOM MB-96N	Leather belt tag (swivel version)	available to order, please ask us for the delivery time	€30.34*
165952	ICOM MB-96FL	Leather belt hanger for fixed belt clip, longer version	available to order, please ask us for the delivery time	€33.63*
165951	ICOM MB-96F	Leather belt hanger for fixed belt clip	Available, delivery time: 1-3 working days	€26.33*
165948	ICOM MB-136	Belt clip (rotating version)	available to order, please ask us for the delivery time	€9.88*

Item number	Article name	Brief description	Availability	Price
166119	ICOM HM-163MC #13	Earphone microphone with 14-pin connector and 2.5 mm socket	available to order, please ask us for the delivery time	€185.33*

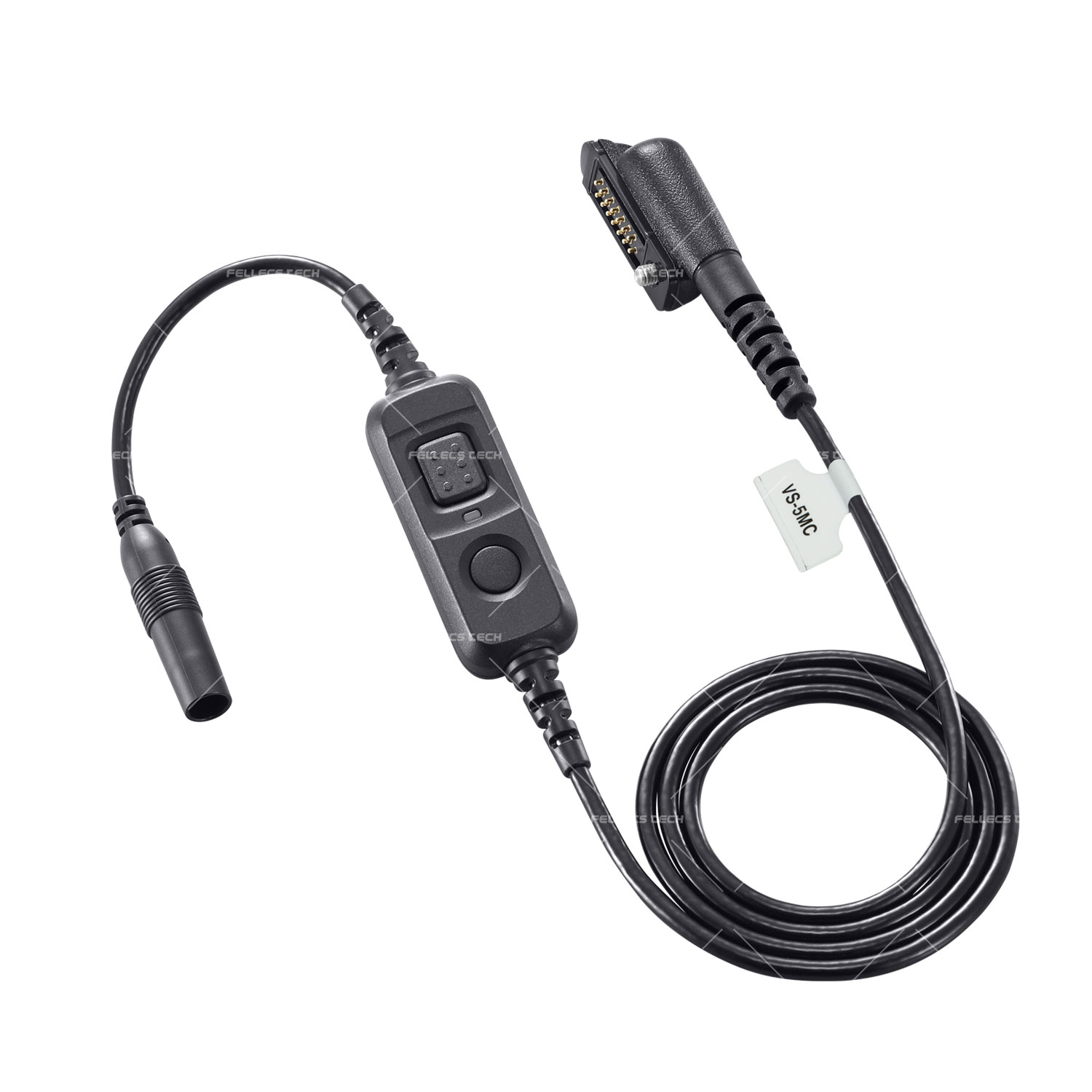

165978	ICOM VS-5MC	Cable with manual PTT button / VOX function	available to order, please ask us for the delivery time	€136.54*

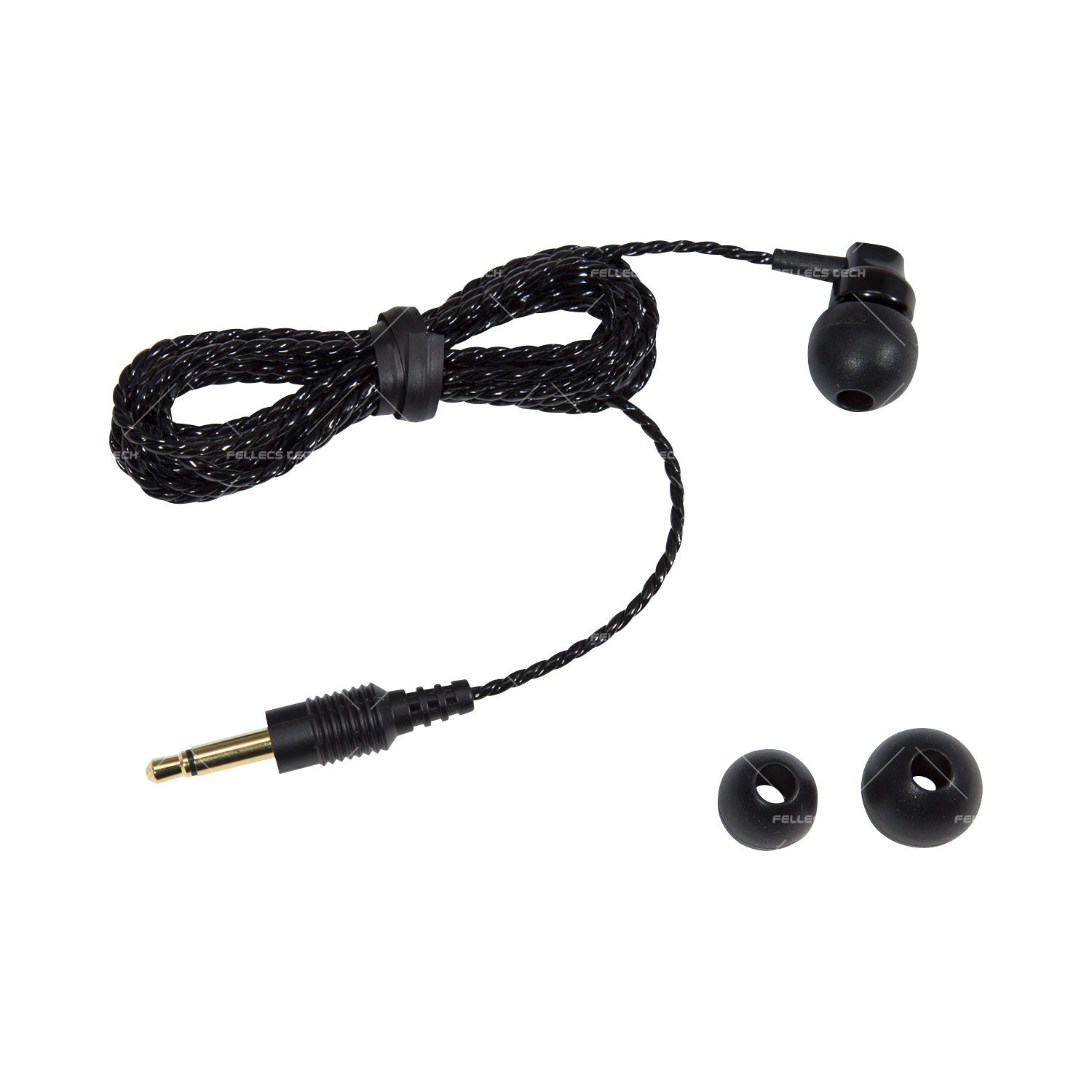

165974	ICOM SP-40	In-ear earphones with 3.5 mm plug	available to order, please ask us for the delivery time	€29.97*

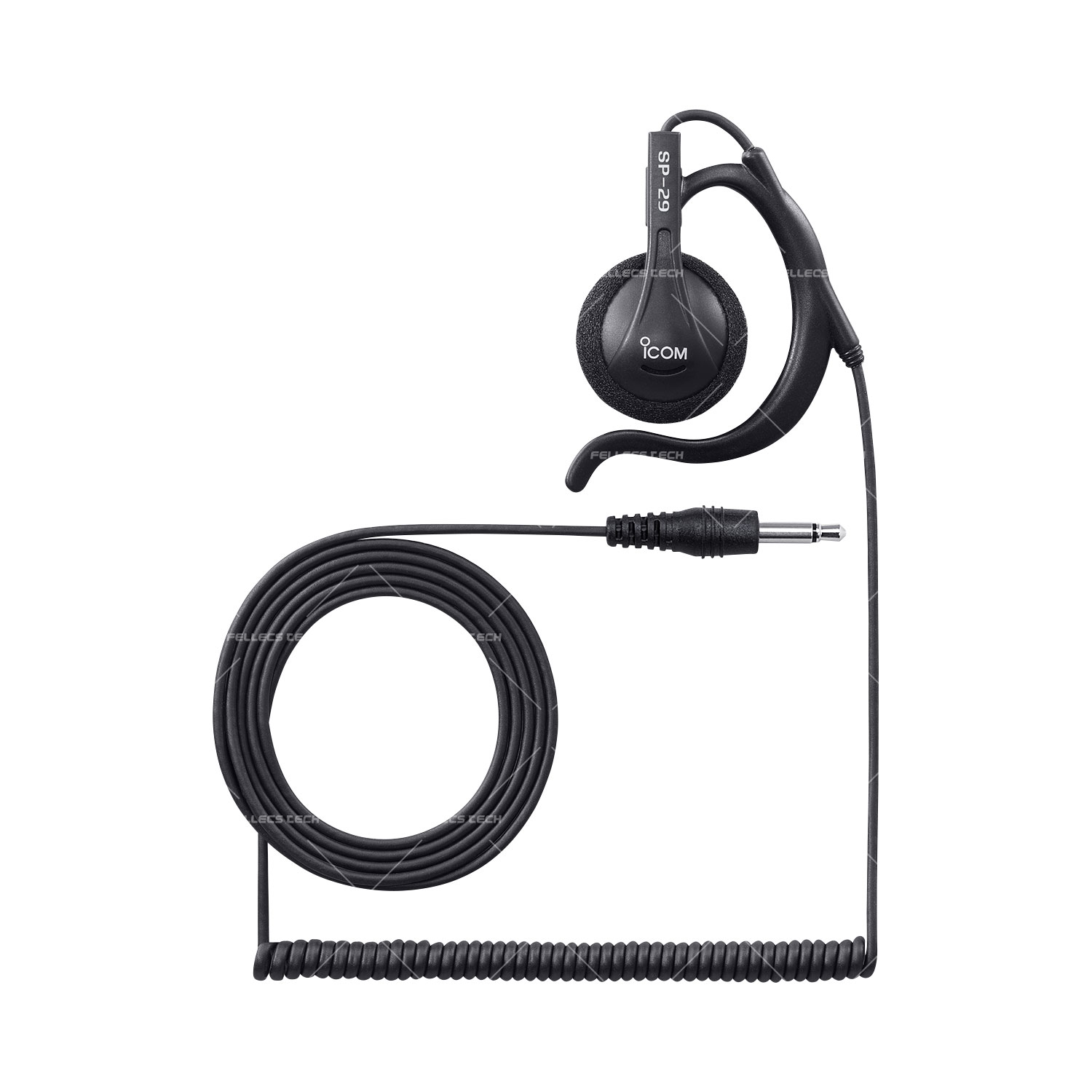

165973	ICOM SP-29	Ear hook earpice with 3.5 mm plug	Available, delivery time: 1-3 working days	€25.22*

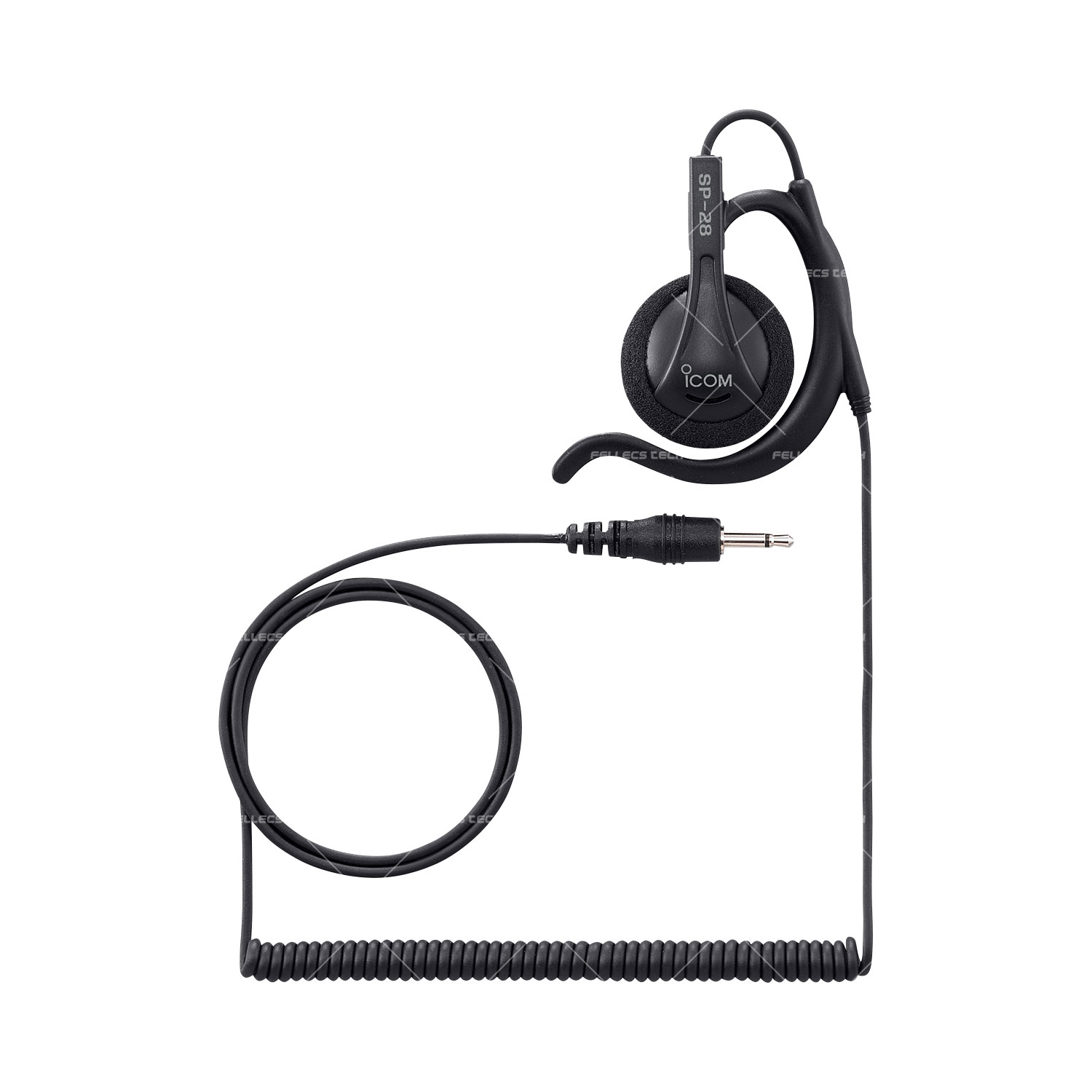

165972	ICOM SP-28	Ear hook earphone with 2.5 mm plug	available to order, please ask us for the delivery time	€25.22*

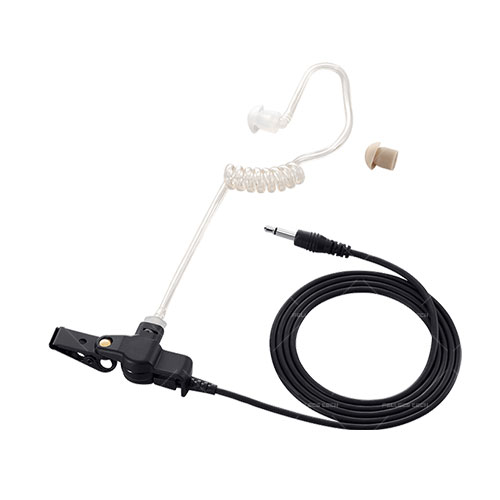

165971	ICOM SP-27	Spiral tube earphones with 3.5 mm plug	Available, delivery time: 1-3 working days	€28.51*

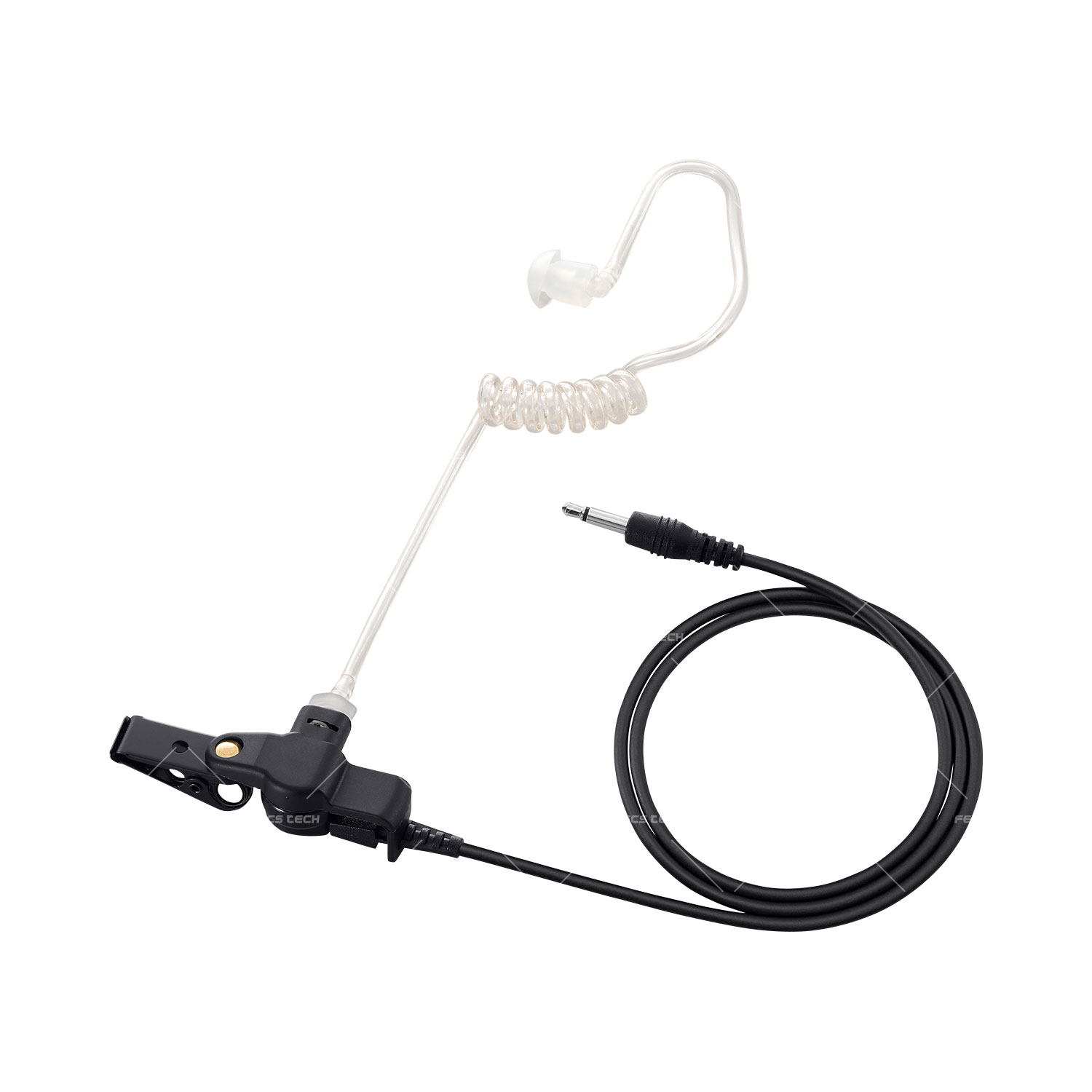

165970	ICOM SP-26	Spiral tube earphones with 2.5 mm plug	Available, delivery time: 1-3 working days	€25.94*

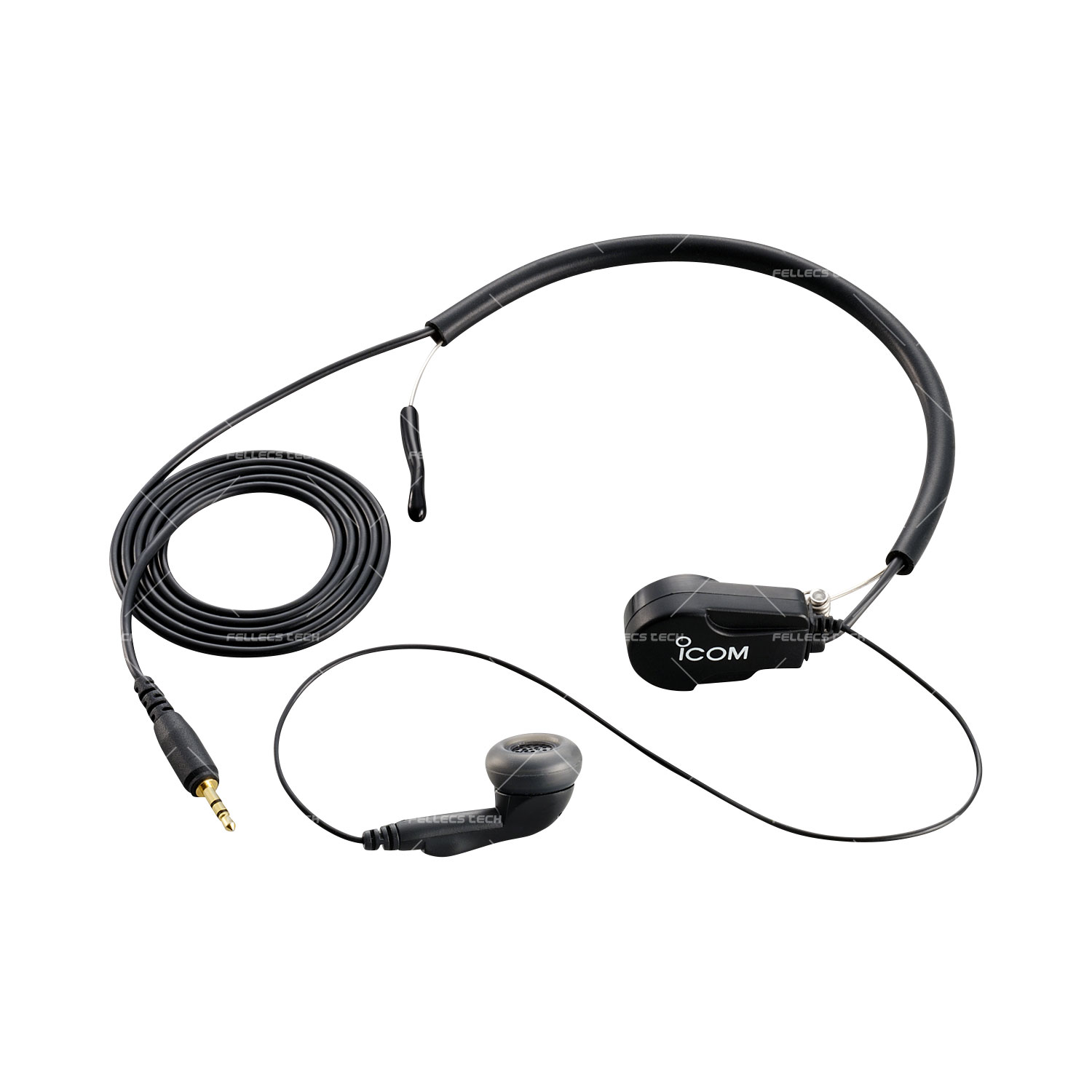

165939	ICOM HS-97	Earpiece headset with throat microphone	available to order, please ask us for the delivery time	€34.21*

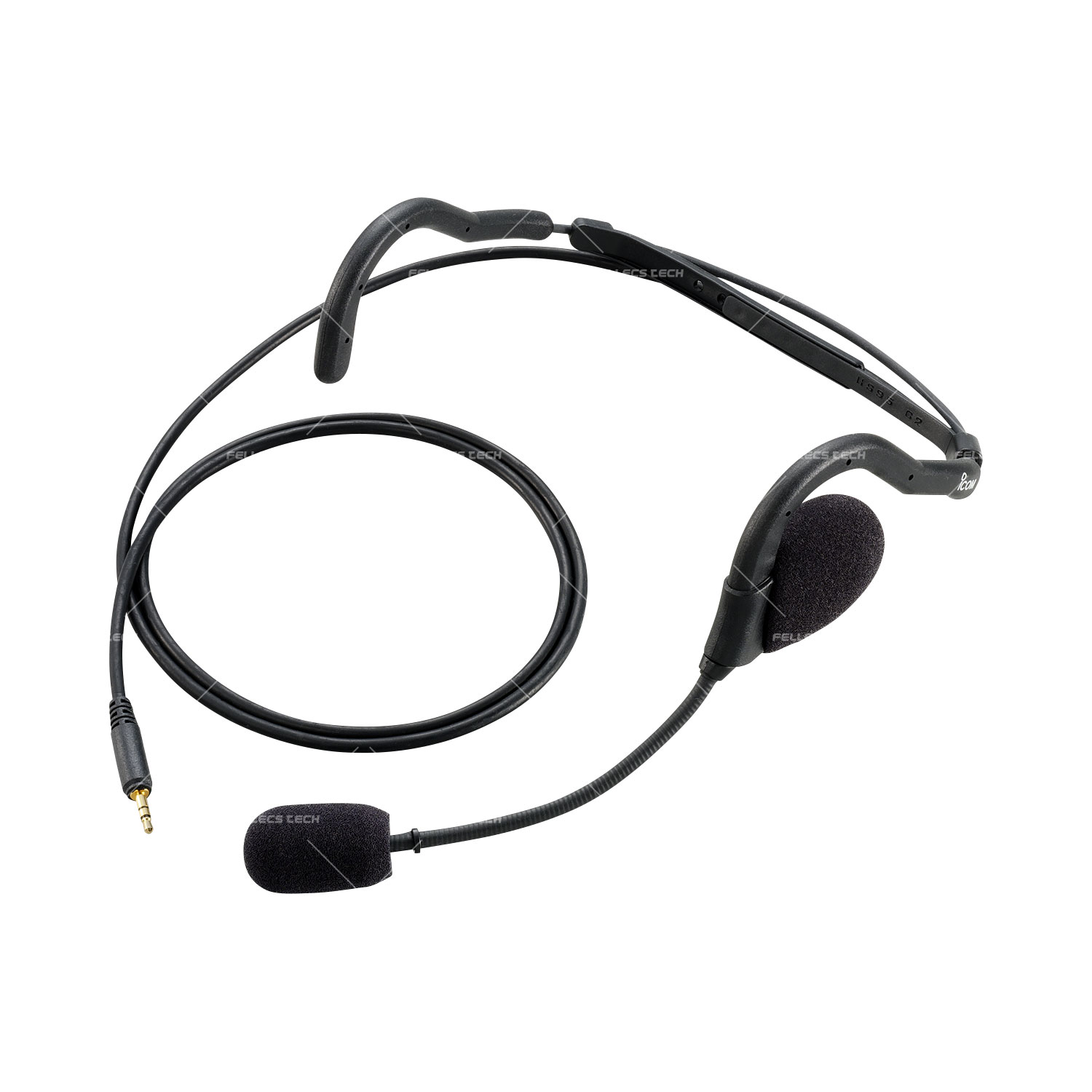

165938	ICOM HS-95	Behind-the-head headset with boom microphone	available to order, please ask us for the delivery time	€181.30*

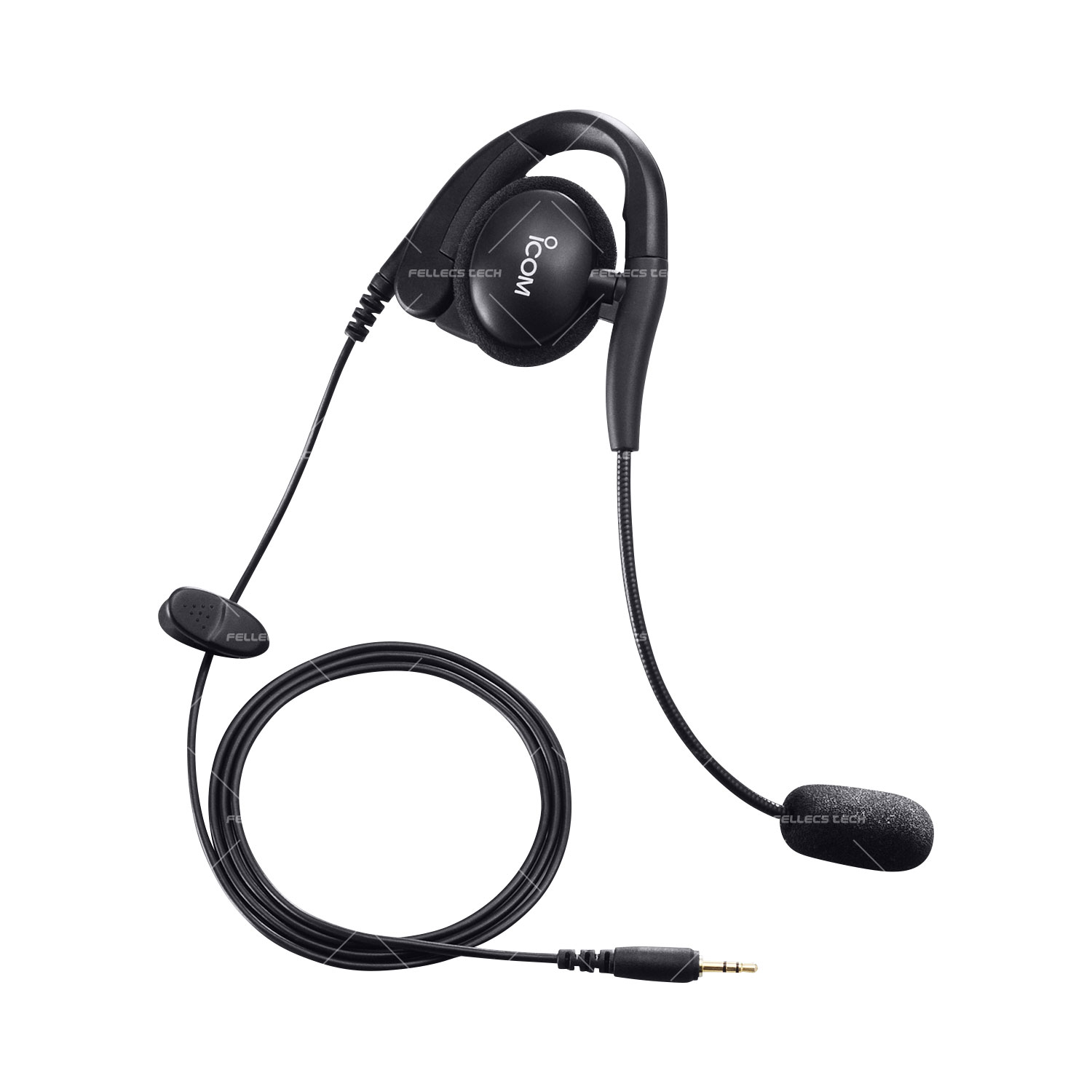

165937	ICOM HS-94	Headset ear hook with boom microphone, 2.5 mm plug	available to order, please ask us for the delivery time	€22.81*

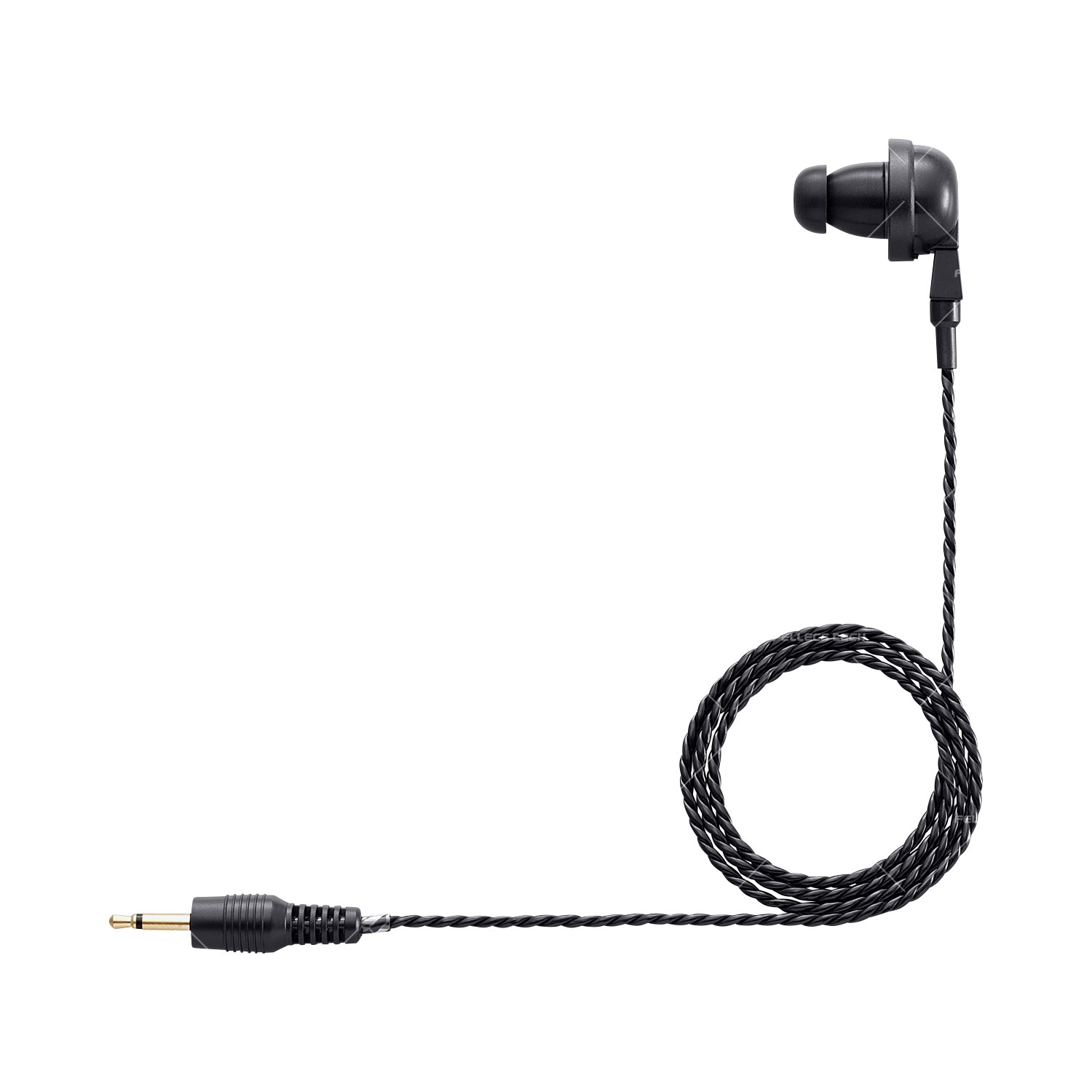

165929	ICOM EH-15B	Earphones (inner ear version, black) with 2.5 mm connector plug	available to order, please ask us for the delivery time	€33.99*

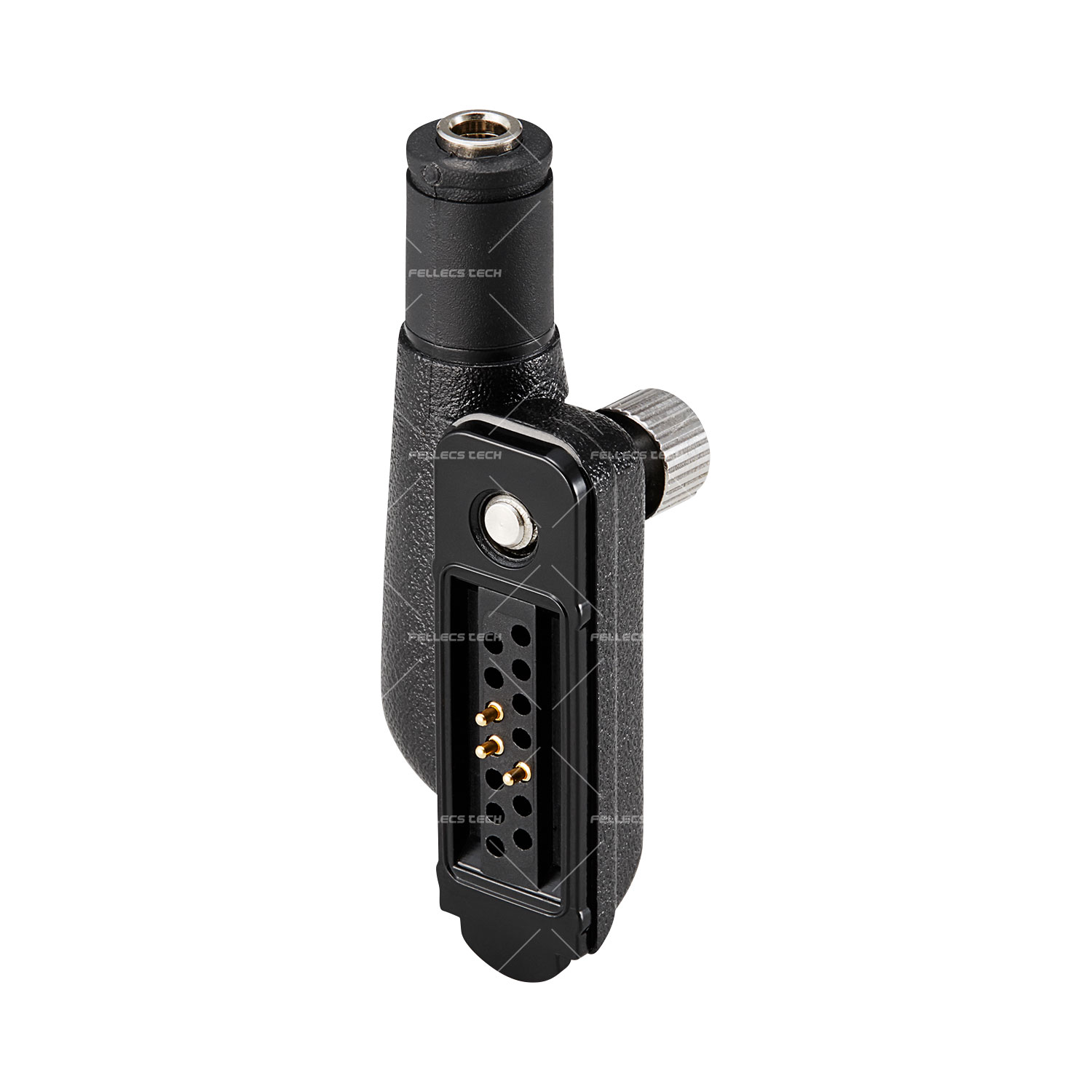

165908	ICOM AD-135	Earphone adapter (3.5 mm socket) for 14-pin connection	Available, delivery time: 1-3 working days	€43.23*

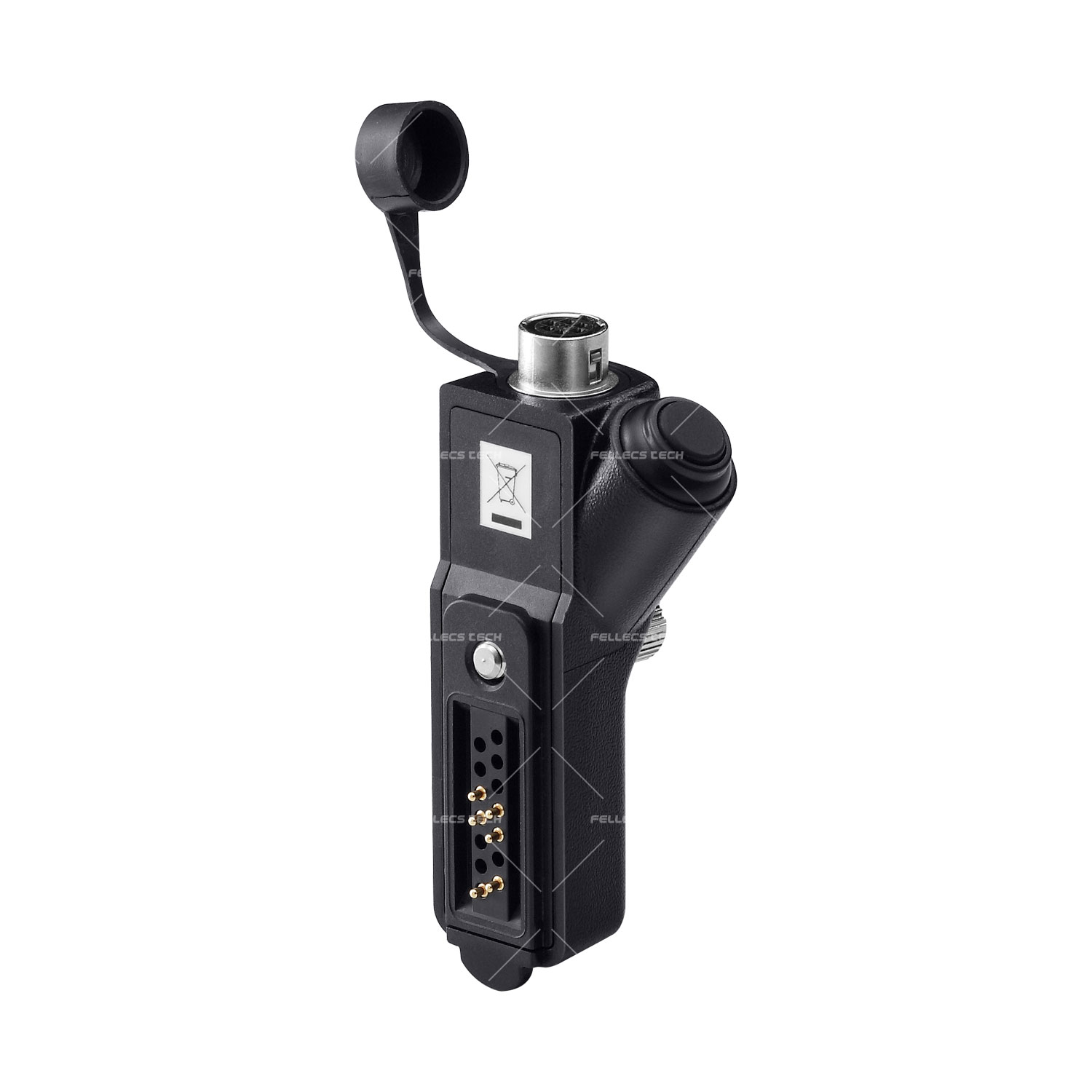

165905	ICOM AD-118	Accessory adapter for using accessories with 6-pin Hirose connector	available to order, please ask us for the delivery time	€67.52*

Article image	Item number	Article name	Brief description	Availability	Recommendation	Price	Shopping cart
	166196	ICOM OPC-2338	Cloning Cable (PC to device); 14-pin multi-connector to USB	available to order, please ask us for the delivery time		€109.77*

Item number	Article name	Brief description	Availability	Price
252884	ICOM BC-123SE (#62)	230V power supply unit (12V / 1 A)	Available, delivery time: 1-3 working days	€20.11*

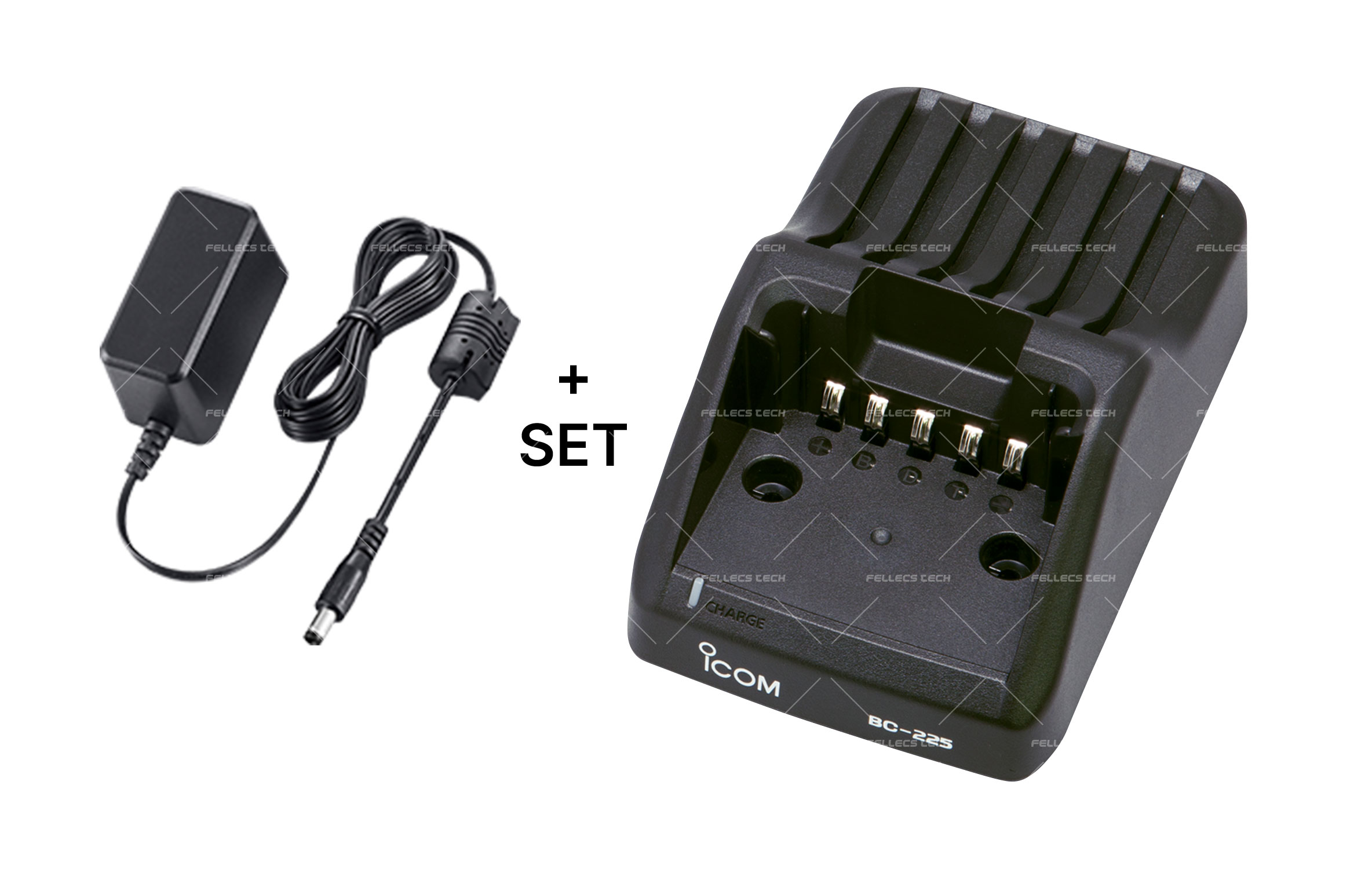

165999	ICOM BC-225 #17	Intelligent charger (fast charger) incl. BC-123SE power adapter	available to order, please ask us for the delivery time	€101.05*

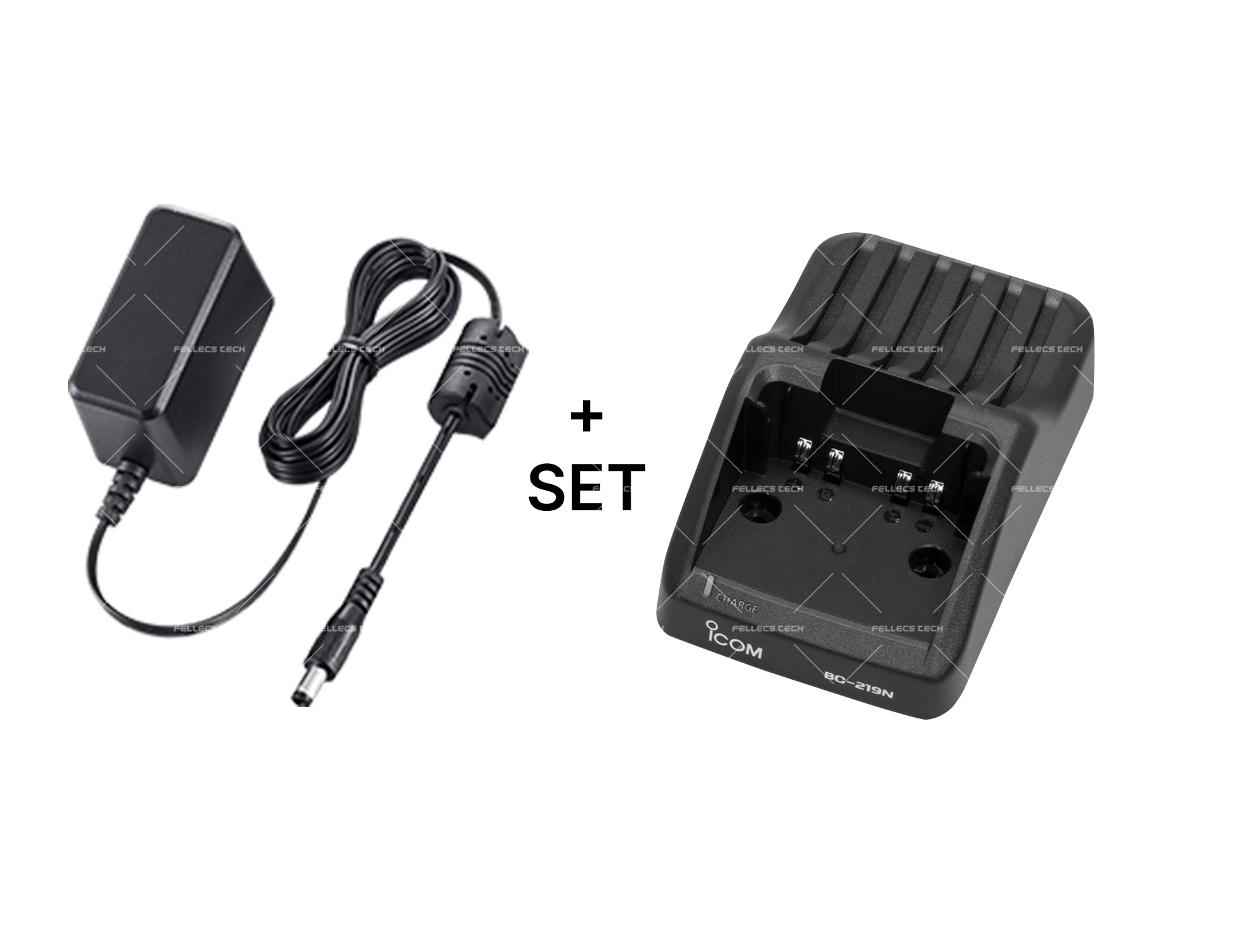

165996	ICOM BC-219N #28	Quick charger incl. power adapter BC-123SE	Available, delivery time: 1-3 working days	€53.97*
165993	ICOM BC-214N #63	Multiple charger for 6 batteries - Version #63	available to order, please ask us for the delivery time Free shipping within Germany	€356.40*

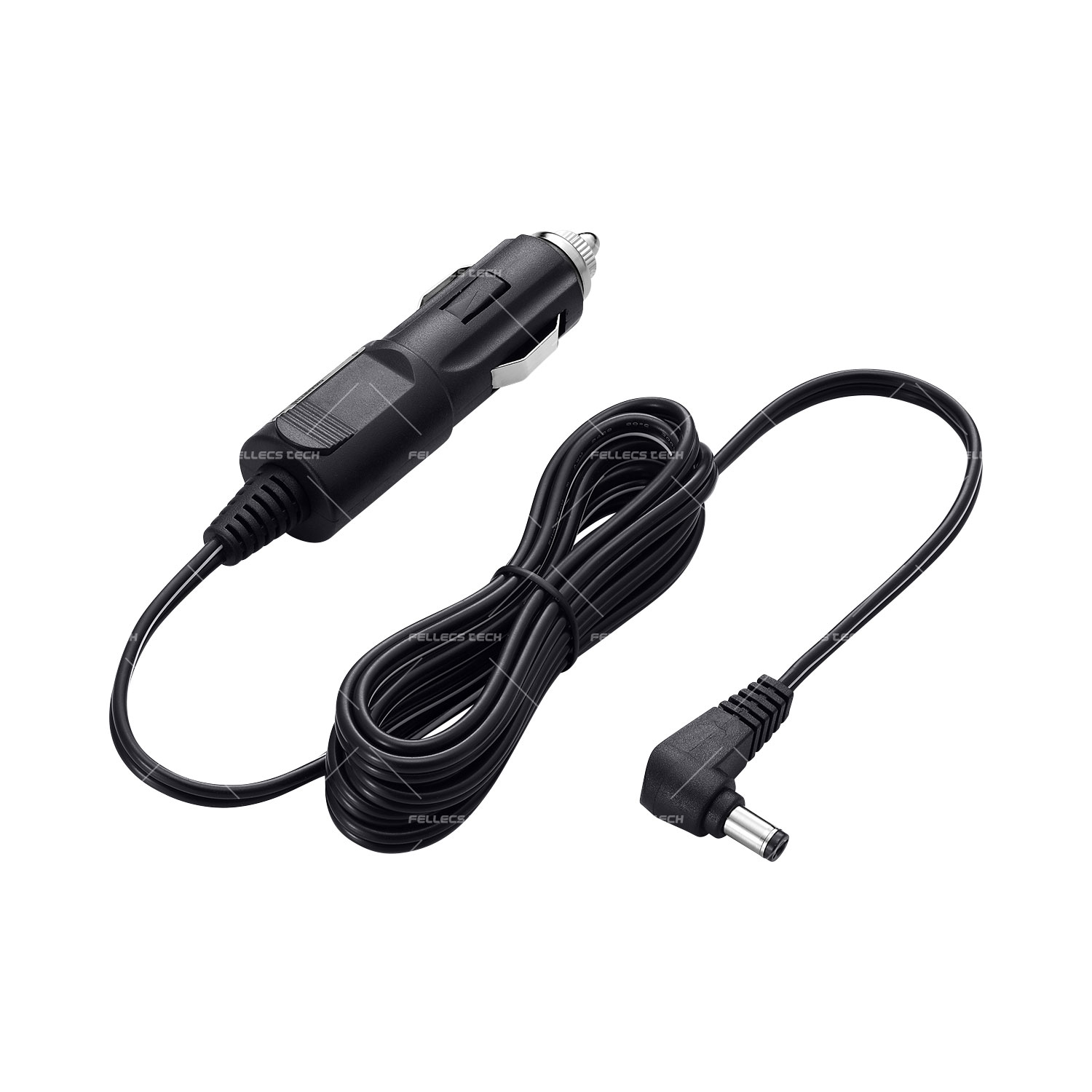

165924	ICOM CP-23L	12 V cigarette lighter cable	Available, delivery time: 1-3 working days	€24.49*

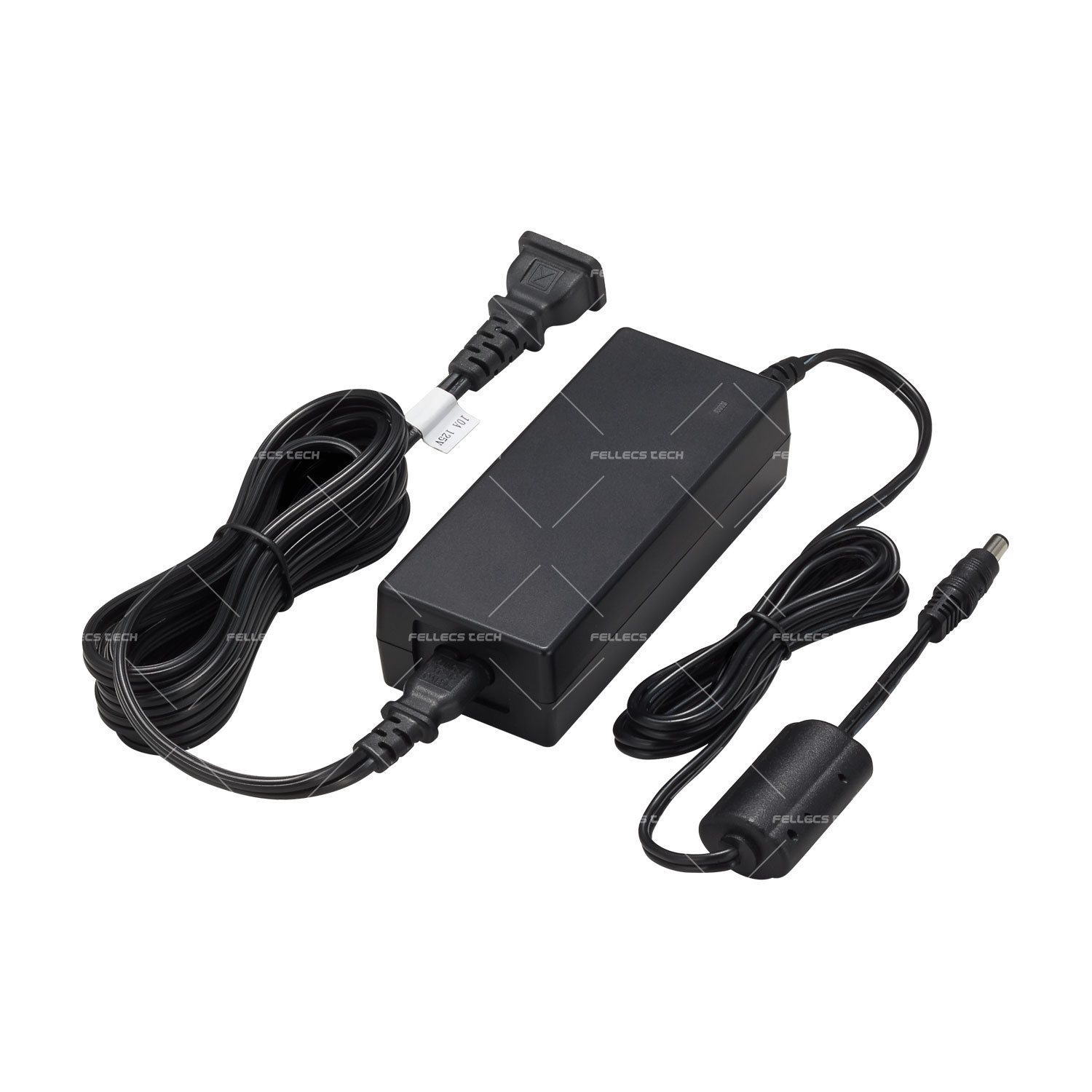

165917	ICOM BC-228	230V power supply unit (15 V/4 A)	available to order, please ask us for the delivery time	€64.50*

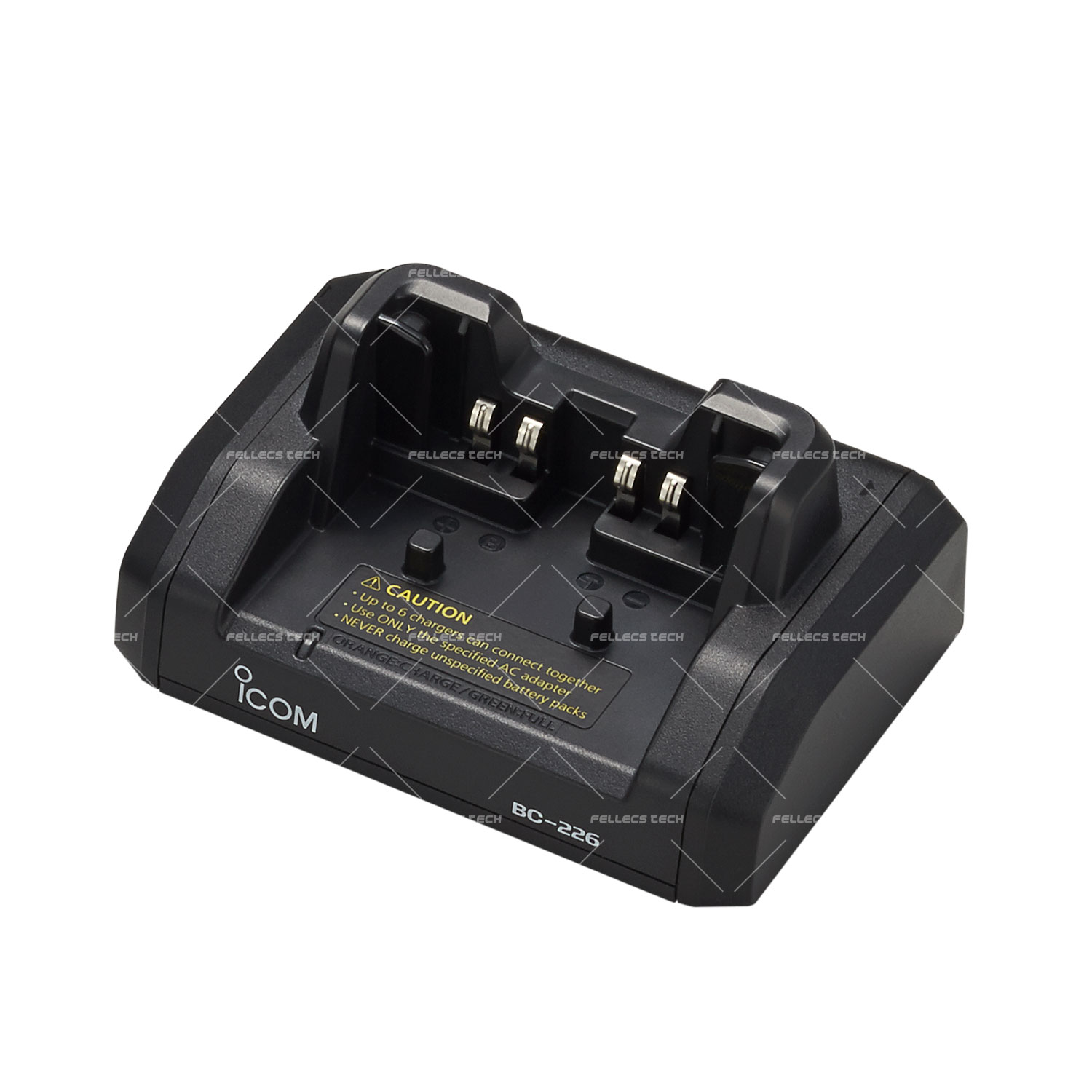

165915	ICOM BC-226 #17	Interconnectable charger (fast charger), without mains adapter	available to order, please ask us for the delivery time	€74.68*
165912	ICOM BC-157S	230 V switching power supply (12 V/6.6 A) for multi-chargers	Available, delivery time: 1-3 working days	€128.30*

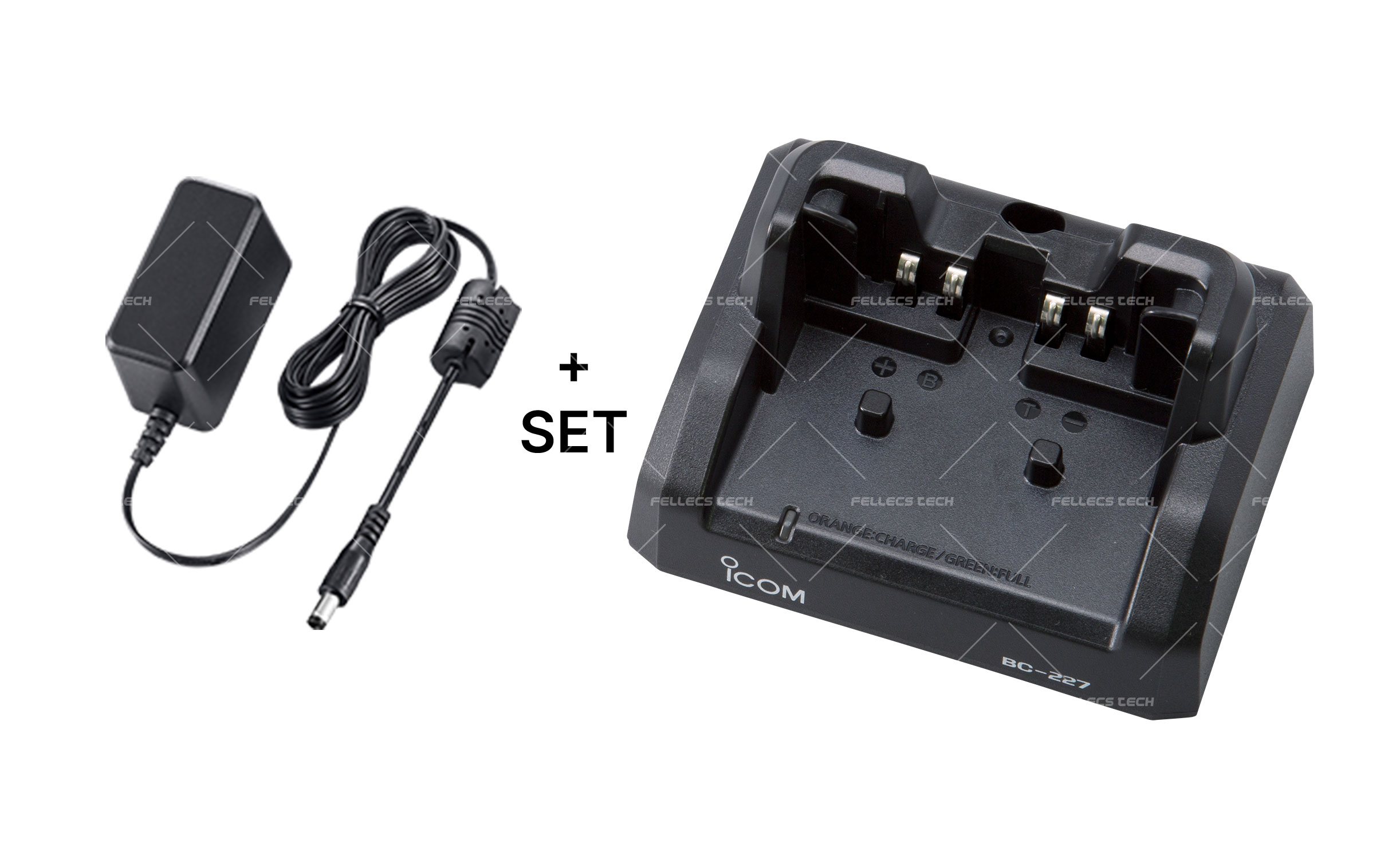

165916	ICOM BC-227 #23	Simple quick charger, incl. BC-123SE power adapter	available to order, please ask us for the delivery time	€52.28*

Article image	Item number	Article name	Brief description	Availability	Recommendation	Price	Shopping cart

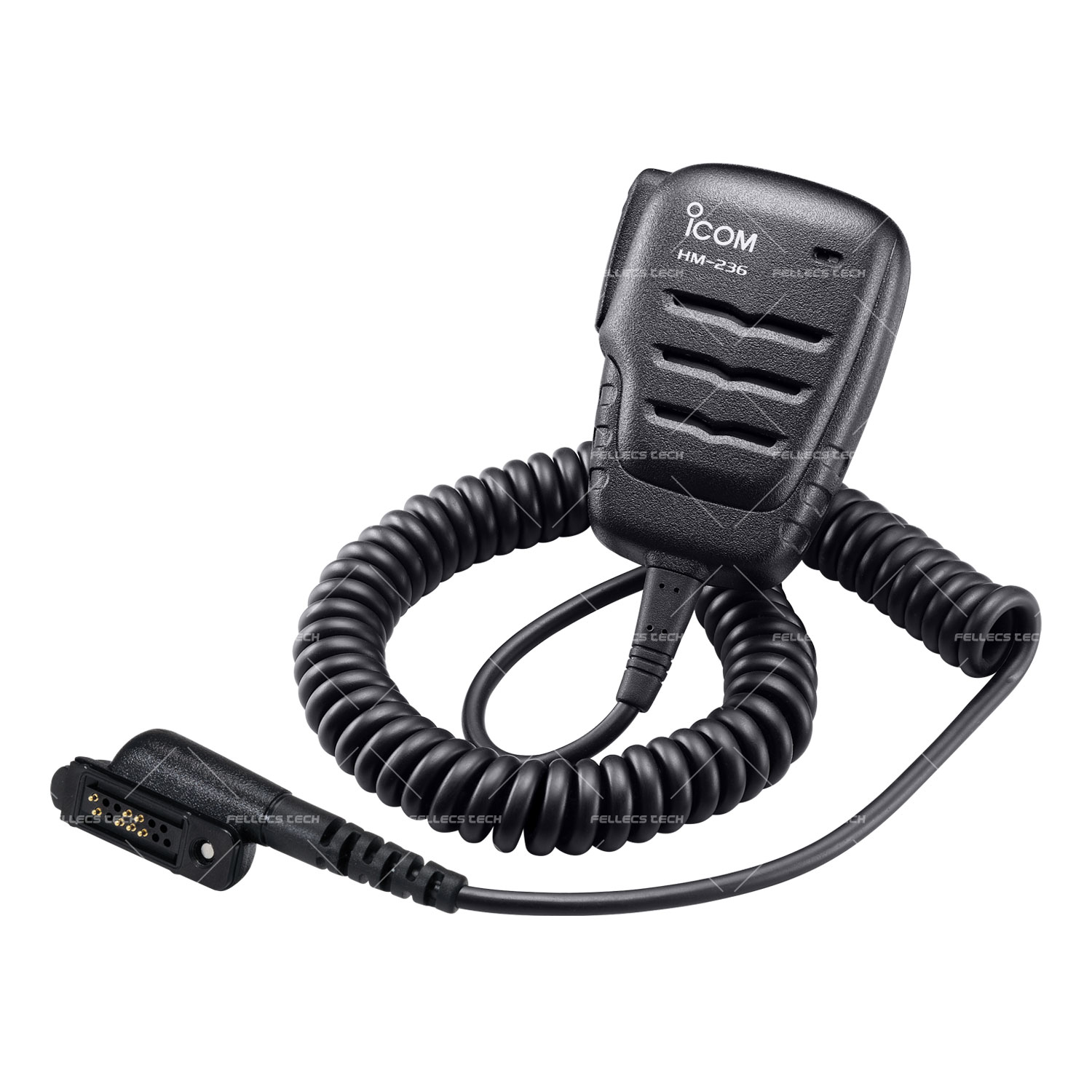

	165936	ICOM HM-236	Waterproof Remote speaker microphone (IP67)	Available, delivery time: 1-3 working days		€96.31*

Article image	Item number	Article name	Brief description	Availability	Recommendation	Price	Shopping cart

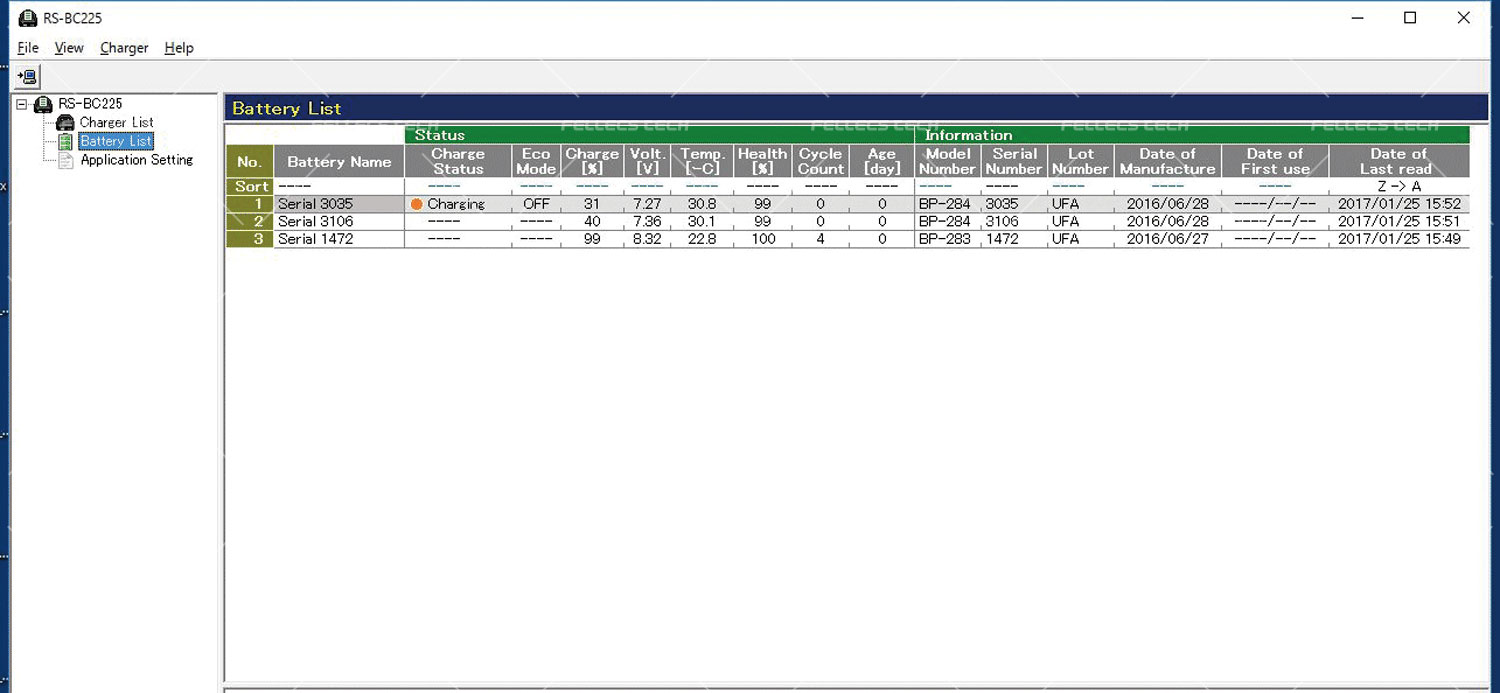

	166249	ICOM RS-BC225	Software for Windows® PC for intelligent battery management	available to order, please ask us for the delivery time Free shipping within Germany		€230.10*
	166060	ICOM CS-M85	Cloning software for IC-M85E	available to order, please ask us for the delivery time		€71.46*

Item number	Article name	Brief description	Availability	Price
165944	ICOM LC-188	Hard leather carrying case (protective bag)	available to order, please ask us for the delivery time	€46.83*
165943	ICOM LC-187	Hard leather case (protective bag)	Available, delivery time: 1-3 working days	€42.43*
165946	ICOM LC-M85	Leather bag incl. shoulder strap and swivel belt holder	Available, delivery time: 1-3 working days	€66.70*
