ICOM RC-FS10

ICOM RC-FS10: Virtual Digital Radio for Your Business

Expand the range of your digital radio system with the ICOM RC-FS10 and create an efficient and flexible communication solution for your business.

How it works:

• Connection to IDAS radio network: The RC-FS10 allows you to connect up to 16 IDAS repeaters to an IP network. This enables you to connect remote locations and communicate across your entire company.

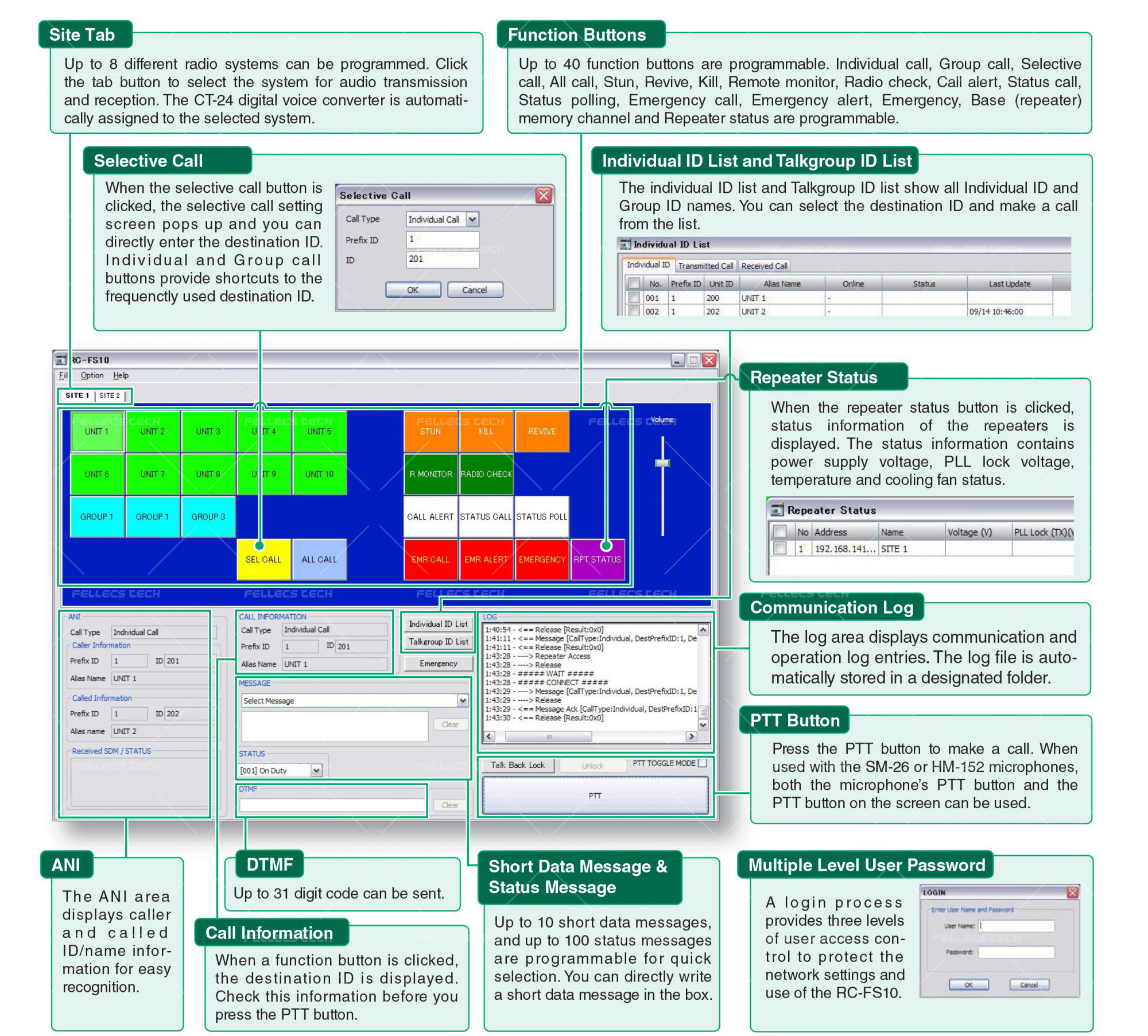

• Virtual dispatch control: With the RC-FS10 software, you have full control over the radio network. Send and receive voice messages, make selective and group calls, and send status messages to individual radios or groups.
• Easy operation: The software forms the user interface of your virtual dispatch station. You can easily make channel changes, monitor radios, and use all IDAS communication functions.

Applications:

• Networking remote locations: For example, connect your branches in different cities via the IP network and communicate with each other cost-effectively and in a time-saving manner.
• Building and campus-wide communication: With the RC-FS10, you can implement a digital radio-based communication solution for your entire company premises, from the basement to the top floor.
• Remote control of base stations: Integrate the base stations of your choice (IC-FR5100 series) into the IP network. This allows you to receive the incoming radio signals and control them centrally via the dispatch software.
• Receiving voting: Optimize radio coverage in large areas. Use the RC-FS10 in conjunction with distributed receiving stations. These forward the best signal to the control center, so that reliable communication is guaranteed even in radio holes.
• Crossband repeater: Network two radio networks with different frequencies (e.g. police and fire department). With the RC-FS10, both organizations can monitor each other's network traffic and send messages if necessary.

Required additional components (optional):

• CT-24 Digital Voice Converter: Converts the microphone signal of your PC into an IDAS compatible digital signal.
• SM-25 desk microphone or HM-152 handheld microphone: Enable voice control via PTT function.
• CT-23 PTT microphone adapter: Connects the microphone and PC together.

Benefits:

• Extended radio range over an IP network
• Central control of all radios and functions
• Cost-effective solution by using existing IP infrastructure
• Crystal-clear digital voice quality
• Versatile application possibilities

Scope of delivery:

• Digital Voice Converter CT-24
• USB cable (long) OPC-1576
• USB cable (short) OPC-2141

Requirements Operating system (last update 2024):

Microsoft Windows 11 (64 bit),  Microsoft Windows 10 (32/64 bit) Microsoft Windows 8.1 (32/64 bit) - Not functional with Windows on ARM, such as Windows RT

With the ICOM RC-FS10, you create a powerful and flexible communication solution for your digital radio system that optimizes your company-wide communication.
