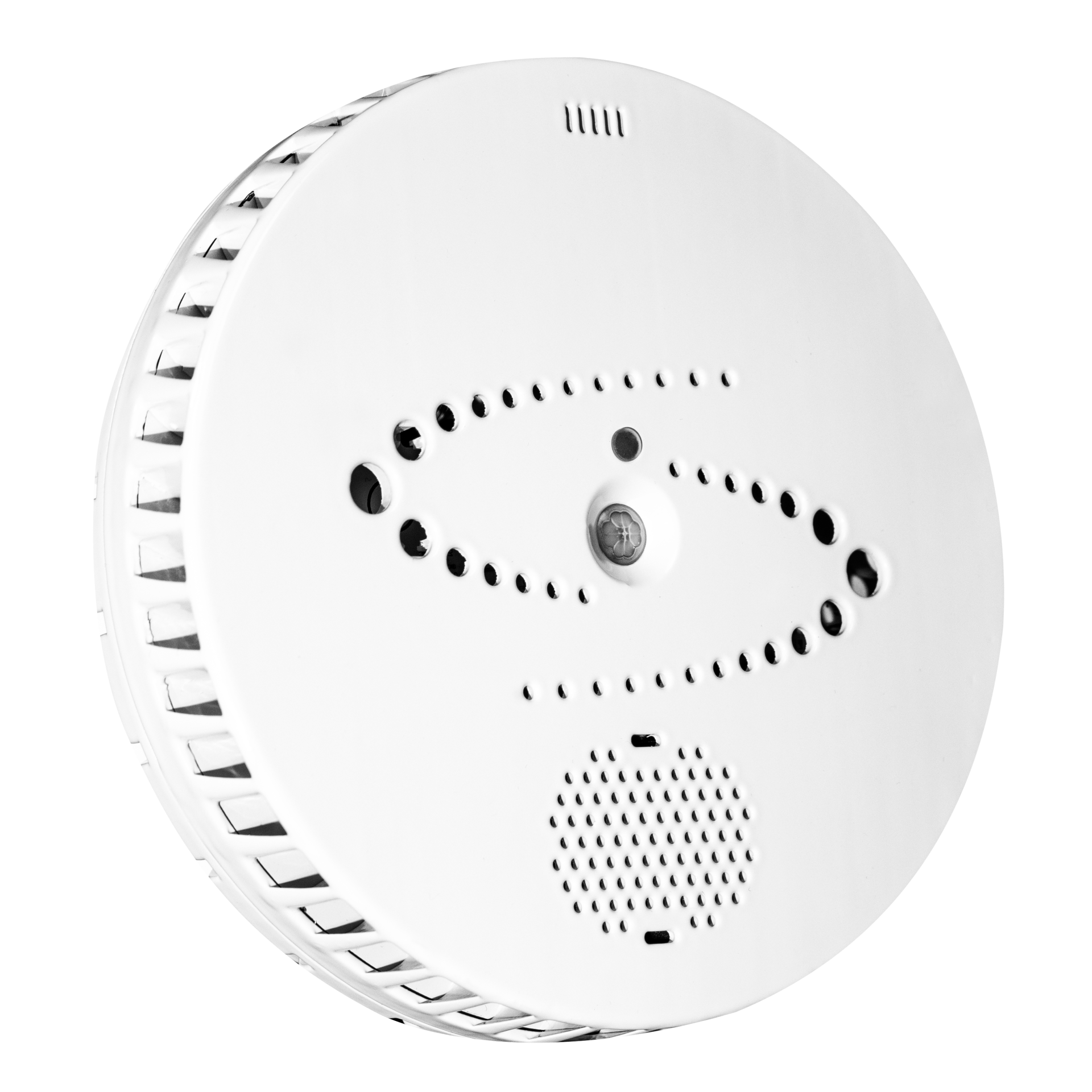

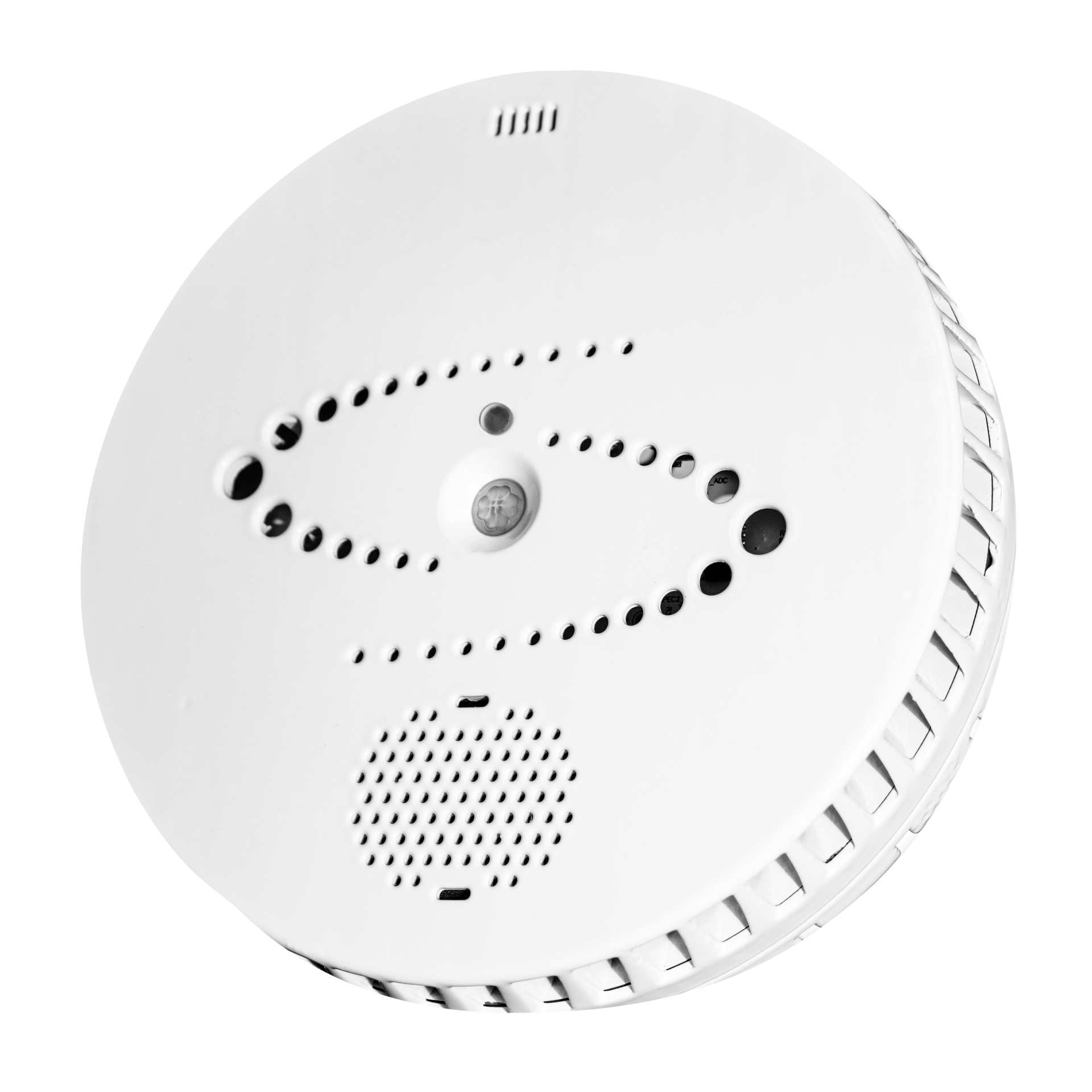

HALO 3C & 3C-PC Smart Sensor – The intelligent all-in-one sensor for security, health, and vaping detection.

The HALO Smart Sensor 3C is a groundbreaking solution for building monitoring. It was specifically designed to protect areas where cameras cannot be used for privacy reasons – such as restrooms, locker rooms, patient rooms, or hotel rooms. As a multifunctional IoT device, it combines the detection of health hazards, air quality issues, and security incidents into a single, discreet housing.

The Difference: HALO 3C vs. HALO 3C-PC

Both models offer the same world-class sensing for environmental and audio analysis. However, the 3C-PC model extends this functionality with a crucial component:

• HALO 3C (Base Model): Provides comprehensive detection of vaping, THC, air quality, aggression, and gunshots.
• HALO 3C-PC (People Counting): Includes all features of the base model and additionally features sensors for people counting and occupancy detection. This allows for the identification of unauthorized loitering, crowds, or the monitoring of occupancy times to further increase energy efficiency and security.

Key Features and Benefits:

• Vape and THC Detection: The sensor reliably detects e-cigarette smoke and THC vapors. Thanks to dynamic algorithms, the device learns and even identifies attempts to mask odors. Ideal for enforcing non-smoking policies.
• Comprehensive Air Quality Monitoring: Measures Carbon Monoxide (CO), Carbon Dioxide (CO2), Nitrogen Dioxide (NO2), Particulate Matter (PM 1-10), Total Volatile Organic Compounds (TVOC), as well as temperature and humidity. This creates healthier spaces and helps prevent the spread of infectious diseases.
• Acoustic Security Analysis: The device "listens" for dangers without recording conversations. It recognizes keywords (e.g., "help"), aggressive behavior, breaking glass, or gunshots and alerts security personnel in real-time.
• Privacy & Design: Since no cameras or microphones are used for audio recording, privacy is maintained. The unobtrusive design blends seamlessly into any environment.

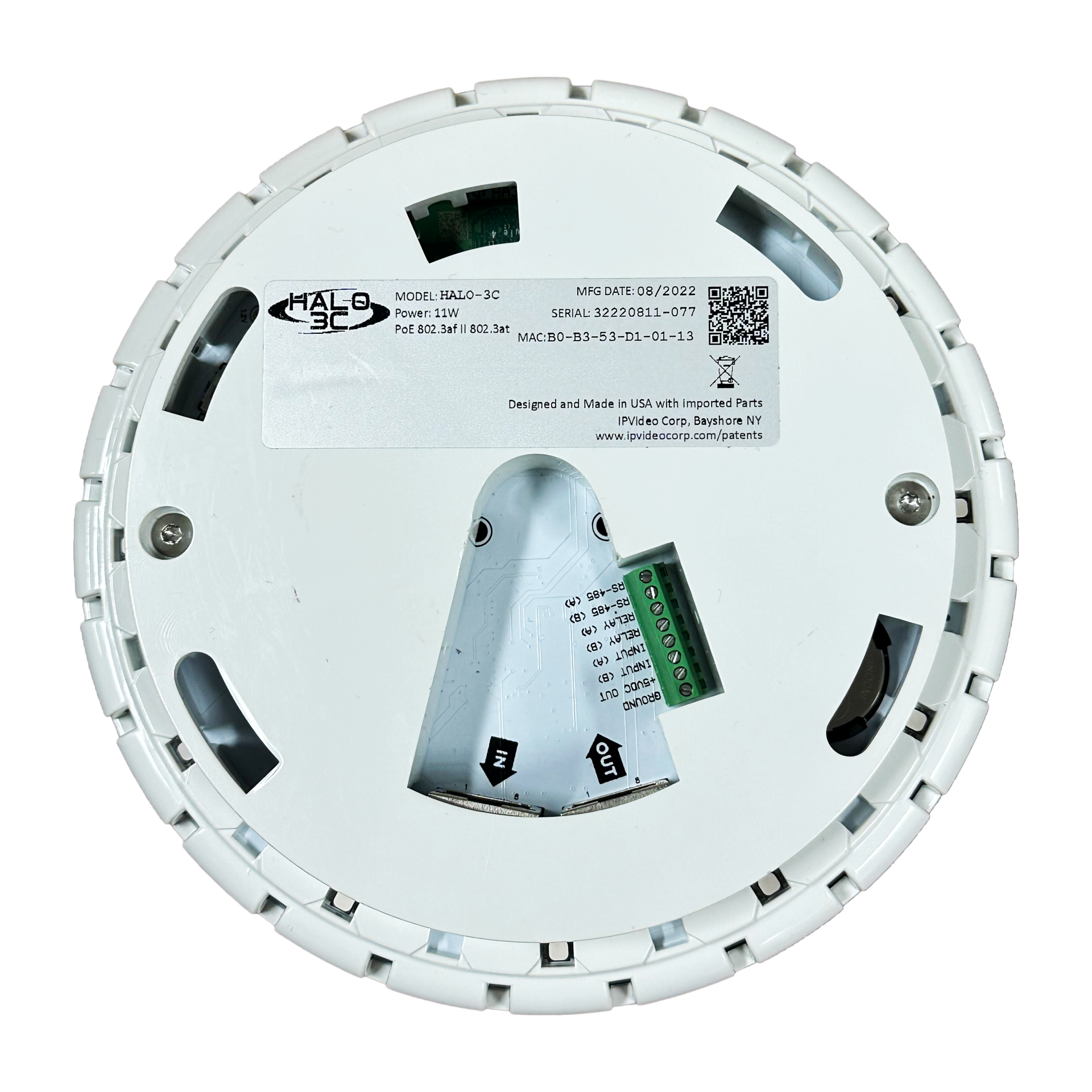

• Easy Installation: Power supply via PoE (Power over Ethernet). Two devices can be connected via daisy-chain, minimizing cabling effort.

Technical Specifications:

• Dimensions: 140 mm x 51 mm (Diameter x Height)
• Weight: approx. 0.365 kg
• Power Supply: PoE (IEEE 802.3af Class 3 Compliance), 11W
• Operating Temperature: 0°C to 50°C
• Protection Class: IK8-rated, vandal-proof housing with tamper alert
• Connectivity: Ethernet (RJ45), USB 2.0

Ordering Information:

• HALO-V3.00C: HALO IoT Smart Sensor 3C
• HALO-V3.00C-PC: HALO IoT Smart Sensor 3C with People Counting

(Note: 5-year warranty. Seamless integration into existing VMS systems such as Avigilon Unity Video or Orchestrate is possible.)
