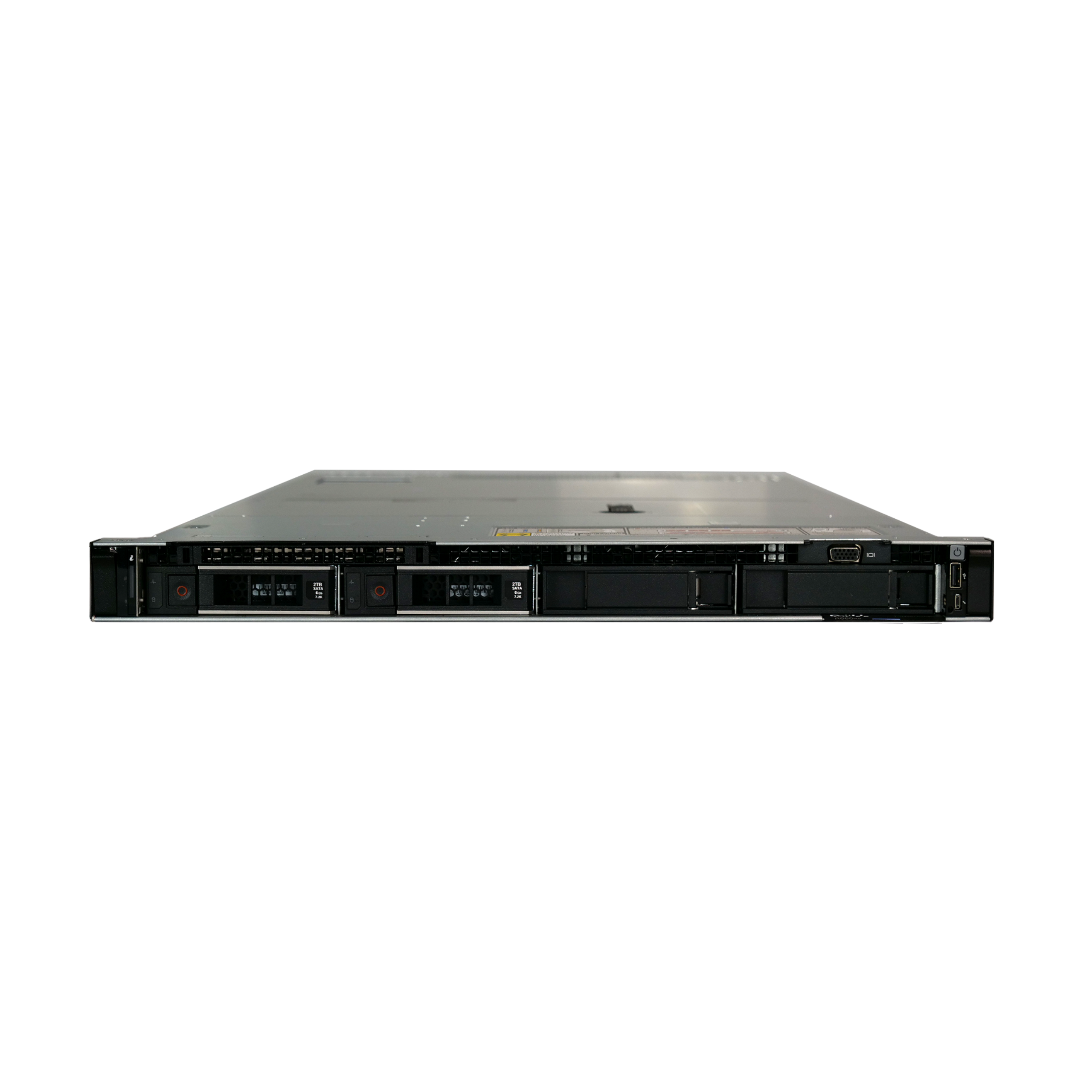

MOTOROLA T8752C Edge Node Server – The central on-premises gateway for your MOTOTRBO cloud connection.
The Motorola Edge Node (T8752C) is a high-performance server that acts as a secure interface between your local MOTOTRBO radio systems and modern cloud services. It combines three critical network services on a single, robust hardware platform: Motorola Network Interface Services (MNIS), Device Discovery and Mobility Service (DDMS), and the Gateway to LMR Network (MGLN).
This gateway is the prerequisite for using advanced Motorola cloud solutions such as Orchestrate or CommandCentral Aware while ensuring the highest security standards.
Key Features and Benefits:
- Modern REST-based API Suite: Enables bidirectional data exchange between your radio system and cloud applications. Utilize data such as GPS locations, telemetry, or text messages for third-party apps to create real value.
- Comprehensive Health Monitoring: An integrated dashboard offers real-time insights into network health. Diagnostic tools, historical logs, and traffic analysis reports help you instantly detect and resolve service outages.
- Automatic Scalability: Intelligent monitoring software detects overload situations and automatically allocates additional computing and storage resources to MGLN services when needed.
- Efficient Lifecycle Management: Benefit from continuous delivery of new features and security updates for the operating system and applications – without manual on-site intervention.
- Maximum Security: The server is protected from the factory by a Motorola Public Key Infrastructure (PKI) and uses simplified authentication methods for secure access to cloud services.
Technical Specifications (As of 2026 - May vary at time of order):
- Hardware Basis: DELL Precision 3930 XL Rack
- Form Factor: 1U Rack Mount (incl. Rack Rail Kit)
- Dimensions (H x W x D): approx. 4.28 x 48.2 x 57.75 cm
- Weight: approx. 19.34 kg (Shipping weight)

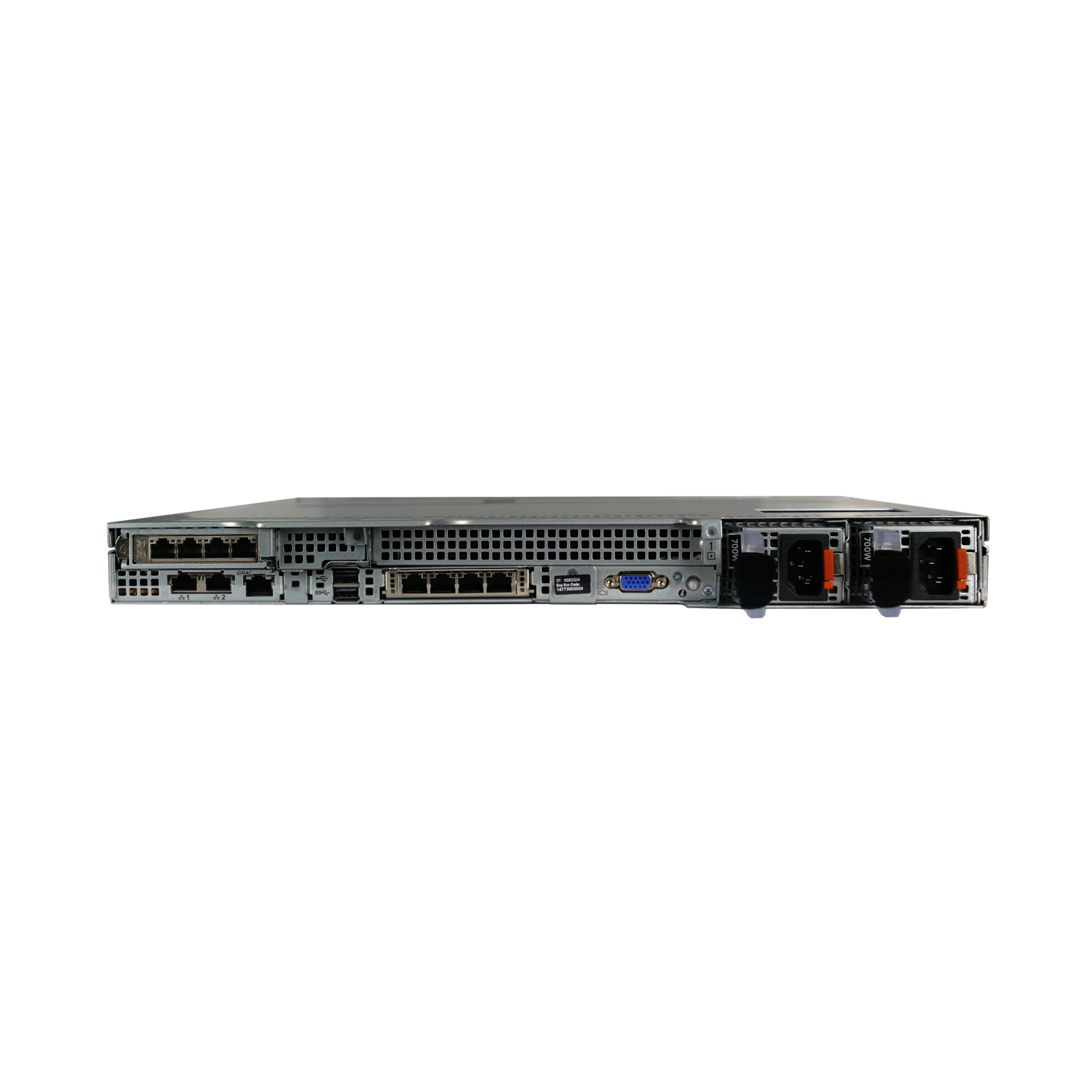

- Network Ports: 1x 10/100/1000 Mb/s RJ45, 1x 10 Gb/s RJ45
- Interfaces: 5x USB (incl. USB 3.1 Type C), Serial Interface
- Power Supply: 100/240 VAC, 550 W
- Operating Temperature: 10 °C to 35 °C (Standard)
Service & Scope of Delivery:
- The hardware gateway is included in the scope of delivery.
- Includes Essential Services: The device is covered by the MOTOTRBO Infrastructure Essential Services package (Duration: 5 years from date of purchase).
(Note: The Edge Node is available exclusively through authorized Motorola Solutions channel partners such as FELLECS-TECH. Access to the Motorola Partner Hub is required for software setup.)
