SHAKESPEARE 5400-XT

€173.63

available to order, please ask us for the delivery time

Product number: 194905

GTIN/EAN: 719441100605

Advantages

Includes 20 ft low-loss RG-8/X coaxial cable
Rust-proof stainless steel ferrule (standard)
Brass and copper elements for greater range
3 dB gain and 50 watts max. input power
Compact 4 ft Galaxy VHF marine antenna

Product information "SHAKESPEARE 5400-XT"

The Shakespeare Galaxy® 5400-XT is a compact 4 ft (1.2 m) VHF marine antenna that builds on the long-standing tradition of the Galaxy series, recognized as the industry standard for performance and quality. This single-section antenna was specifically designed for maximum reliability on the water and impresses with premium materials and masterful craftsmanship.

Specifications:

Frequency band: VHF
Length: 4 ft (1.2 m)
Gain: 3 dB
Max input power: 50 watts
VSWR: < 1.5:1 at 156.8 MHz
Bandwidth: 3 MHz within 2.0:1 VSWR
DC Ground: No (Reads open)
Matching AM/FM antenna: 5420-XT

Additional features of the Galaxy® 5400-XT:

Maximum performance: Thick brass and copper elements provide greater range, clarity, and efficiency for signal transmission.
Durability: The white fiberglass radome features a high-gloss polyurethane finish that is non-yellowing.
Rust-proof: The stainless steel ferrule with a standard 1"-14 thread reliably protects against rust.
Easy installation: A 20 ft (6 m) low-loss RG-8/X cable and a solder-free, screw-on Easy Route PL-259 connector are included.
Suggested mounts: Compatible with Shakespeare 4187-HD or 5187.
Reliability: The antenna comes with a 5-year warranty.

Properties and specifications

Frequenzbereich:	VHF (2m band)
Abstrahlmuster:	Omnidirectional
Anschluss:	FME system
Antennentyp:	VHF marine radio
Empfohlene Einsatzbereiche:	Marine - Commercial, Marine - Motorboats / Yachts
Farbe:	White / White
Gewinde/Montage:	1" x 14 TPI
Gewinn (dBi):	3dBi
Kabel:	With RG8/X cable
Kabellänge:	6,0 m
Länge/Höhe in CM:	120.0000
Material:	Fiberglass / glass fiber
Maximale Eingangsleistung:	50 W
Sektionen:	1

Technical documents, flyers and downloads

Shakespeare Catalog

pdf | 31.72 MB

Download

5400-XT Datasheet

pdf | 377.38 KB

Download

0 of 0 reviews

Leave a review!

Share your experiences with other customers.

Login

Your email address

Your password

Display reviews in current language only.

No reviews found. Share your insights with others.

Accessories overview

Item number	Article name	Brief description	Availability	Price

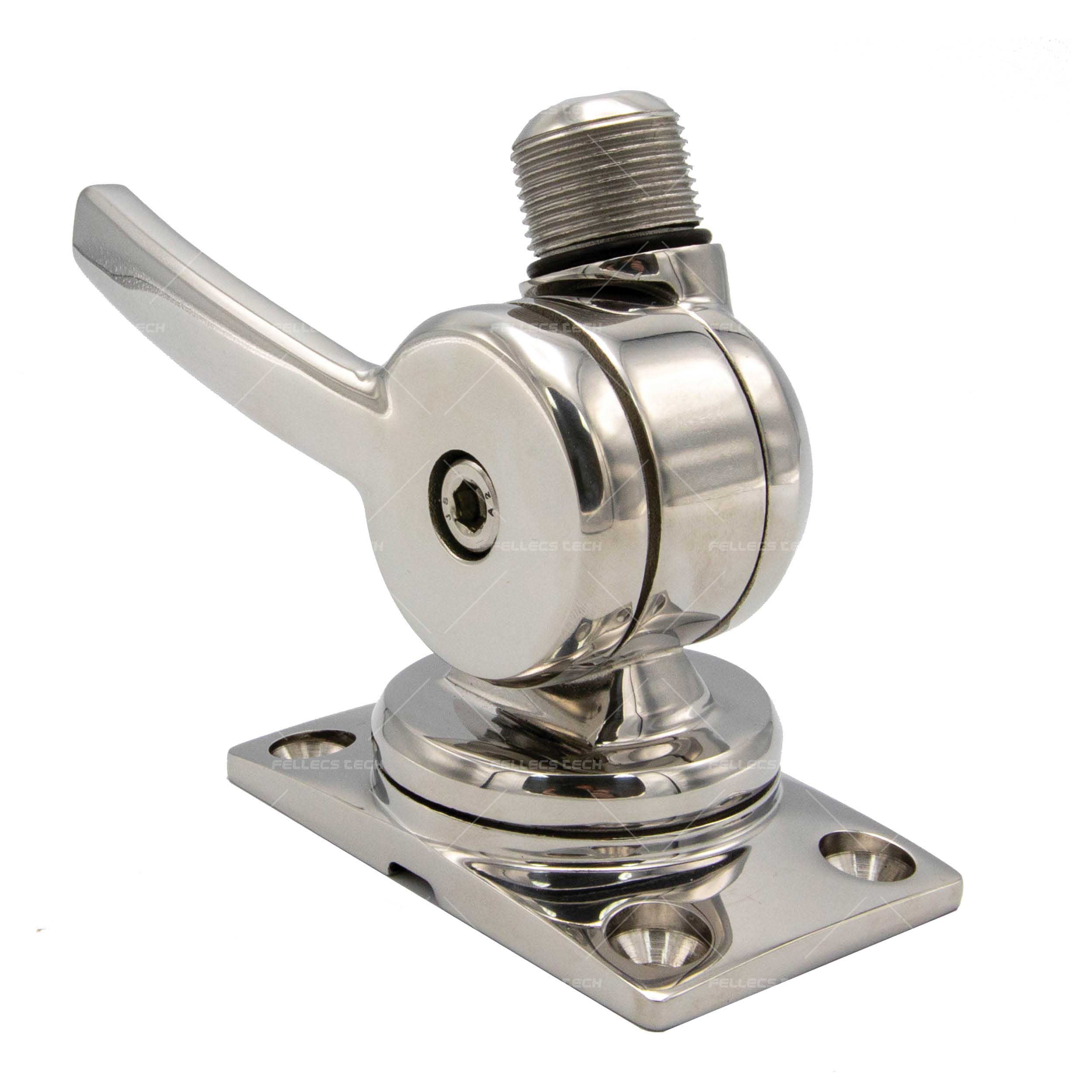

195932	SHAKESPEARE 6187	2-way ratchet tilt bracket (polished stainless steel), flat profile	available to order, please ask us for the delivery time	€128.09*
195958	SHAKESPEARE 4187-HD	Heavy duty ratchet mount	Available, delivery time: 1-3 working days	€99.63*

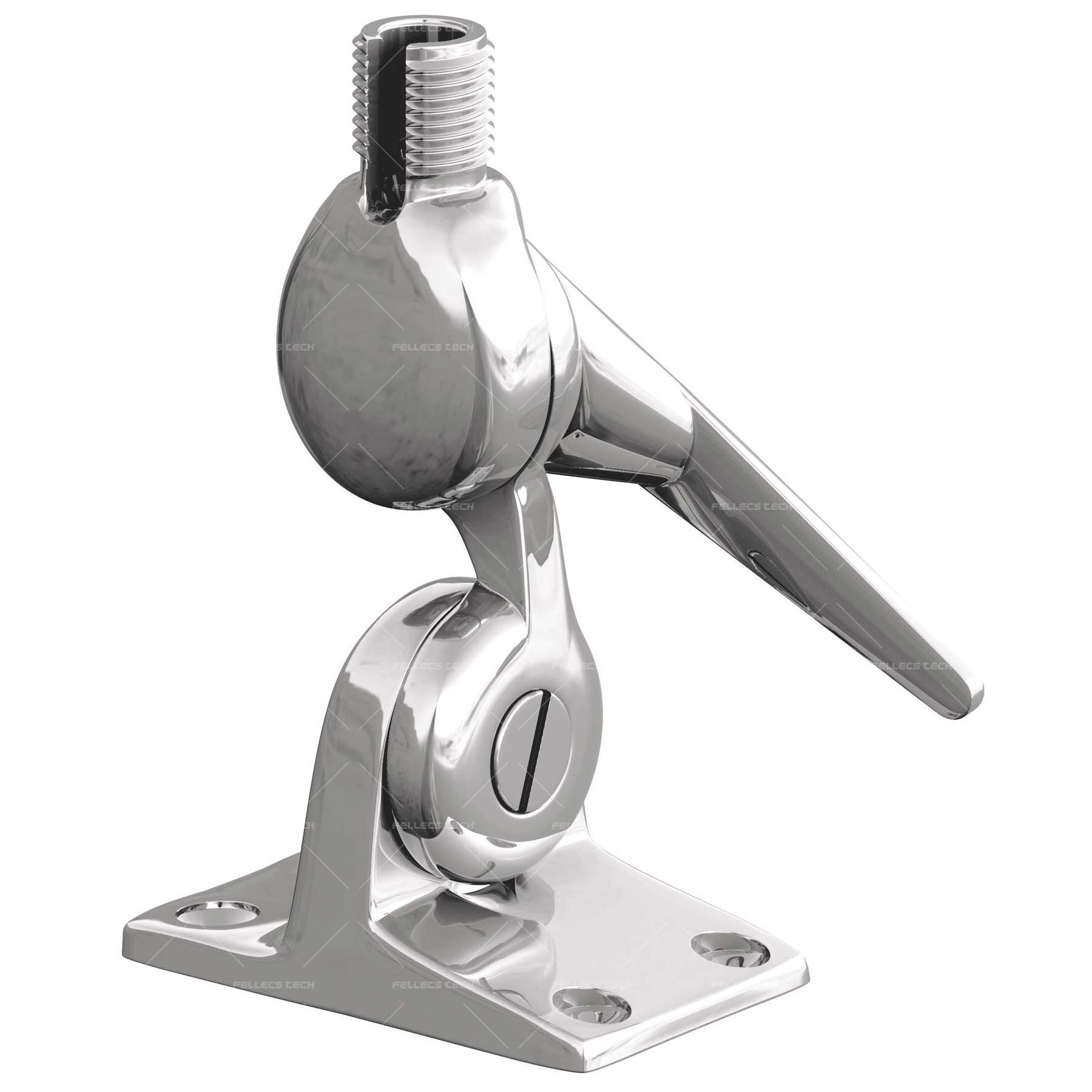

195971	SHAKESPEARE 5187 (ARMNT-SL)	4-way ratchet tilt mount (polished stainless steel)	Available, delivery time: 1-3 working days	€99.63*
