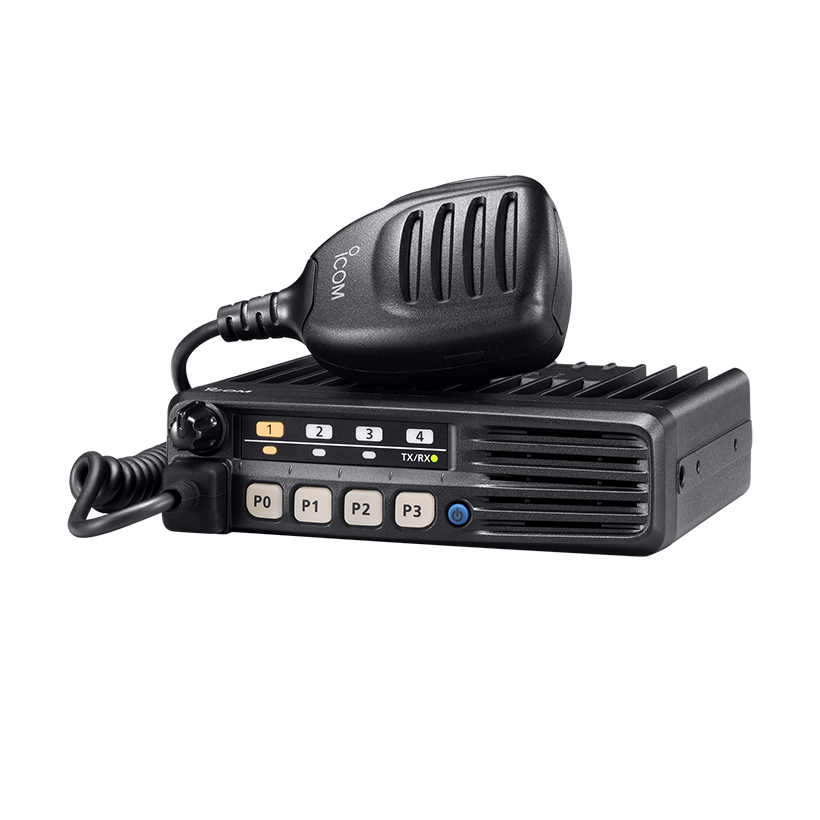

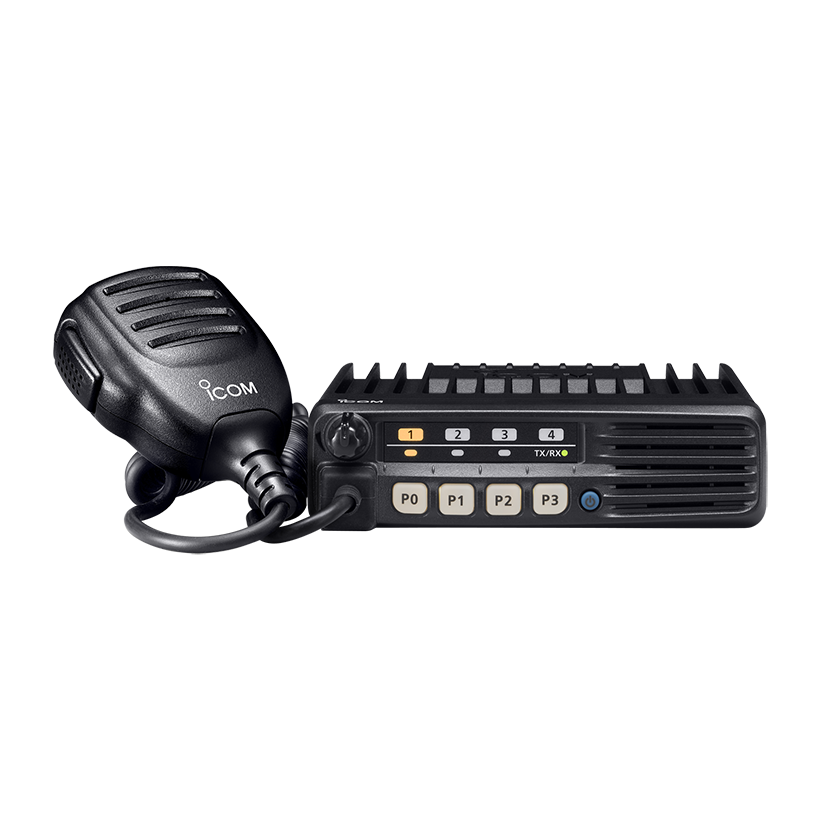

ICOM IC-F6012 UHF
€317.36
% €364.74 (12.99% saved - Online store benefit)
available to order, please ask us for the delivery time
Free shipping within Germany
Product information "ICOM IC-F6012 UHF"
Easy Operation and Versatile Functions
The ICOM IC-F5012/IC-F6012 is a powerful and reliable mobile radio that is ideal for professional use in a variety of applications.
Key Features:
- 8 Channels: The device has 8 channels that can be freely programmed, so you can select the channels you use most often.
- 4 Programmable Buttons and Separate Volume Control: The 4 programmable buttons allow you to access frequently used functions directly. The separate volume control ensures easy and comfortable operation.
- Versatile Signaling Options: The device supports a variety of common signaling systems, such as 2-tone, 5-tone, CTCSS, and DTCS signaling. This allows you to set up talkgroups and suppress unwanted radio signals.
- MDC 1200 Compatible: The device features a built-in MDC 1200 encoder and decoder, allowing you to transmit a PTT ID and emergency signal and receive radio checks, stuns, and revives.
- Enhanced Scan Features: The priority scan function allows you to monitor one or two priority channels while scanning other non-priority channels. The Tx channel and talkback functions allow you to make a quick response while scanning.
- Remote Control with Optional ACC Cable: The optional ACC cable allows you to connect various external devices to control audio output, modulated signal input, remote channel control, horn honk, and many more functions.
- Rugged Military-Standard Construction: The device is tested to MIL-STD 810 F specifications, making it dustproof, waterproof, and shockproof.
- Other Features: 4W (typ.) front-mounted speaker, wide frequency coverage (136–174 and 400–470 MHz), wide/middle/narrow channel spacing (25, 20, 12.5 kHz), programmable microphone hanger action, optional DTMF microphone (HM-152T/HM-148T), DTMF auto-dial function, PC programmability, talkaround function, power-on password function, nuisance delete function, timeout timer, lockout timer
Scope of Delivery:
- Hand microphone HM-152
- Power supply cable
- Microphone hanger
- Mounting bracket
- Stickers for function keys
Properties and specifications
| Frequenzbereich: | UHF (70cm band) |
|---|---|
| Geräteserie: | ICOM IC-F5012/6012 |
| Anschlussart-Zubehör: | ICOM RJ45 |
| Anzahl Kanäle: | Up to 8 channels |
| Betriebsart: | Analog |
| Bluetooth® Indoor Lokalisierung (via Beacons): | No |
| Display: | No, without display |
| Kanalabstand: | 12.5 kHz, 20 kHz |
| Nutzerklasse: | Professional |
| Over-the-Air-Programmierung (OTAP): | No |
| Programmierbare Funktionstasten (Anzahl eingeben): | 4 |
| Sendeleistung: | Up to 25 watts |
| Stromversorgung: | ± 12V DC |
| Tasten/Tastatur: | With front function buttons |
| UHF: | Analog |
| Abmessungen (Länge/Breite/Höhe): | 150 × 40 × 117.5 mm |
Technical documents, flyers and downloads
