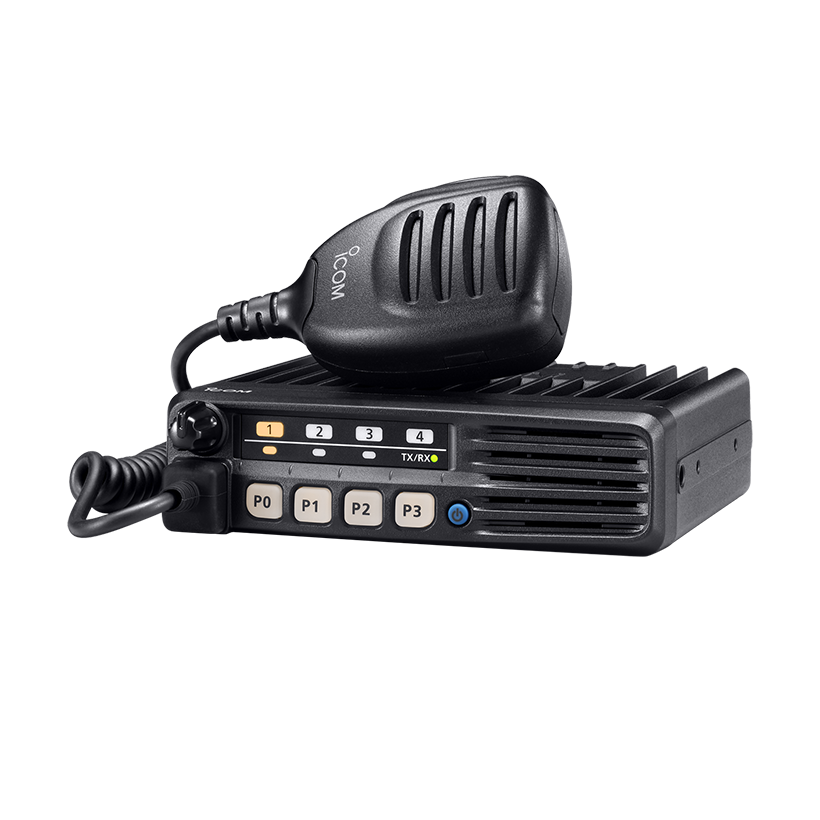

Product information "ICOM IC-F5012 VHF"

Easy Operation and Versatile Functions

The ICOM IC-F5012/IC-F6012 is a powerful and reliable mobile radio that is ideal for professional use in a variety of applications.

Key Features:

  • 8 Channels: The device has 8 channels that can be freely programmed, so you can select the channels you use most often.
  • 4 Programmable Buttons and Separate Volume Control: The 4 programmable buttons allow you to access frequently used functions directly. The separate volume control ensures easy and comfortable operation.
  • Versatile Signaling Options: The device supports a variety of common signaling systems, such as 2-tone, 5-tone, CTCSS, and DTCS signaling. This allows you to set up talkgroups and suppress unwanted radio signals.
  • MDC 1200 Compatible: The device features a built-in MDC 1200 encoder and decoder, allowing you to transmit a PTT ID and emergency signal and receive radio checks, stuns, and revives.
  • Enhanced Scan Features: The priority scan function allows you to monitor one or two priority channels while scanning other non-priority channels. The Tx channel and talkback functions allow you to make a quick response while scanning.
  • Remote Control with Optional ACC Cable: The optional ACC cable allows you to connect various external devices to control audio output, modulated signal input, remote channel control, horn honk, and many more functions.
  • Rugged Military-Standard Construction: The device is tested to MIL-STD 810 F specifications, making it dustproof, waterproof, and shockproof.
  • Other Features: 4W (typ.) front-mounted speaker, wide frequency coverage (136–174 and 400–470 MHz), wide/middle/narrow channel spacing (25, 20, 12.5 kHz), programmable microphone hanger action, optional DTMF microphone (HM-152T/HM-148T), DTMF auto-dial function, PC programmability, talkaround function, power-on password function, nuisance delete function, timeout timer, lockout timer

Scope of Delivery:

  • Hand microphone HM-152
  • Power supply cable
  • Microphone hanger
  • Mounting bracket
  • Stickers for function keys

Properties and specifications

Frequenzbereich: VHF (2m band)
Geräteserie: ICOM IC-F5012/6012
Anschlussart-Zubehör: ICOM RJ45
Anzahl Kanäle: Up to 8 channels
Betriebsart: Analog
Bluetooth® Indoor Lokalisierung (via Beacons): No
Display: No, without display
Kanalabstand: 12.5 kHz, 20 kHz, 25 kHz
Nutzerklasse: Professional
Over-the-Air-Programmierung (OTAP): No
Programmierbare Funktionstasten (Anzahl eingeben): 4
Sendeleistung: Up to 25 watts
Stromversorgung: ± 12V DC
Tasten/Tastatur: With front function buttons
VHF: Analog
Abmessungen (Länge/Breite/Höhe): 150 × 40 × 117.5 mm

Technical documents, flyers and downloads

Icom PMR catalog German
pdf | 10.68 MB
Icom PMR catalog English
pdf | 12.79 MB
IC-F5012/F6012 Basic-Instructions German
pdf | 498.23 KB
IC-F5012/F6012 Brochure German
pdf | 1.12 MB
IC-F5012/F6012 Brochure English
pdf | 275.49 KB
IC-F5012 DOC
pdf | 699.93 KB

0 of 0 reviews

Average rating of 0 out of 5 stars

Leave a review!

Share your experiences with other customers.


Accessories overview

Article image Item number Article name Brief description Availability Recommendation Price Shopping cart
256212
PROCOM CXL 2-3C/m
VHF 153 - 166 MHz, 3dBd, 295cm, N(f)

available to order, please ask us for the delivery time

Free shipping within Germany

€741.01*
256199
PROCOM CXL 2-1/h
VHF 155 - 175 MHz, 0dBd, 121cm, PL(f)

available to order, please ask us for the delivery time

€154.70*
256238
PROCOM CXL 2-3LW/hm
VHF 158 - 167 MHz, 3dBd, 280cm, N(f)

available to order, please ask us for the delivery time

Free shipping within Germany

€553.83*
256277
PROCOM CXL 2-3LW/l
VHF 146 - 155 MHz, 3dBd, 280cm, N(f)

available to order, please ask us for the delivery time

Free shipping within Germany

€553.83*
256290
PROCOM CXL 2-3LW/lm
VHF 153 - 162 MHz, 3dBd, 280cm, N(f)

available to order, please ask us for the delivery time

Free shipping within Germany

€553.83*
252845
VIMCOM Titan Antennenstrahler 1/4 VHF FME
VHF Titan Strahler 1/4 Lambda 135-185 MHz

Available, delivery time: 1-3 working days

€39.98*

Article image Item number Article name Brief description Availability Recommendation Price Shopping cart
254795
VIMCOM 79/B FME-FME
Magnetic base with FME / FME adapter

Available, delivery time: 1-3 working days

€53.31*
254327
VIMCOM 62/B (FME)
Mounting bracket with FME / FME adapter

Available, delivery time: 1-3 working days

€42.84*
252702
VIMCOM 65/F-5 FME (5m cable)
Antenna base, fixed cable 5.0m RG58 without connector plug (open end | groundfree)

Available, delivery time: 1-3 working days

€41.89*

Article image Item number Article name Brief description Availability Recommendation Price Shopping cart
253963
CABLE RF400 HALO/FLAME FRNC coaxial cable (10,3)
50 Ω, up to 6GHz, 10,30 mm, 2,74 mm, FRNC, Double shielded

Available, delivery time: 1-3 working days

€6.55*
253924
CABLE Aircell 7 coaxial cable (7,3)
50 Ω, up to 6GHz, 7,3 mm, 1,9 mm

Available, delivery time: 1-3 working days

€7.26*
207931
CABLE FME, 5m, RG58 (FME female - FME female)
Verbindungskabel

Available, delivery time: 1-3 working days

€21.68*
207918
CABLE FME, 4m, RG58 (FME female - FME female)
Verbindungskabel

Available, delivery time: 1-3 working days

€19.99*
207905
CABLE FME, 3m, RG58 (FME female - FME female)
Verbindungskabel

Available, delivery time: 1-3 working days

€18.30*
207892
CABLE FME, 2m, RG58 (FME female - FME female)
Verbindungskabel

Available, delivery time: 1-3 working days

€16.61*
207879
CABLE FME, 1m, RG58 (FME female - FME female)
Verbindungskabel

Available, delivery time: 1-3 working days

€14.91*

Article image Item number Article name Brief description Availability Recommendation Price Shopping cart
166212
ICOM OPC-2500
Extension cable (2 m)

available to order, please ask us for the delivery time

€41.52*
166188
ICOM OPC-2078
25-pin D-Sub accessory cable

available to order, please ask us for the delivery time

€89.69*
166186
ICOM OPC-1939
15-pin accessory cable

available to order, please ask us for the delivery time

€77.17*
165956
ICOM OPC-1132
Power supply cable 3 m

available to order, please ask us for the delivery time

€25.04*
166213

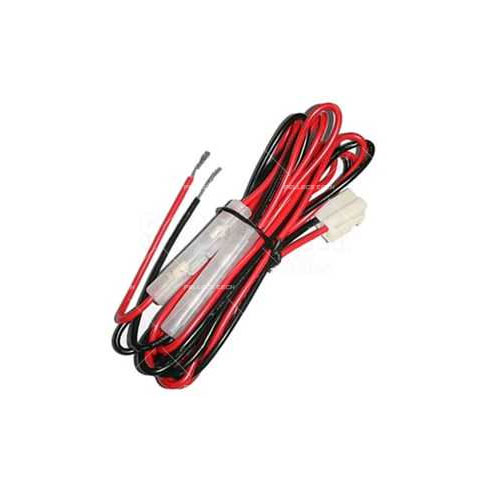

ICOM OPC-347
