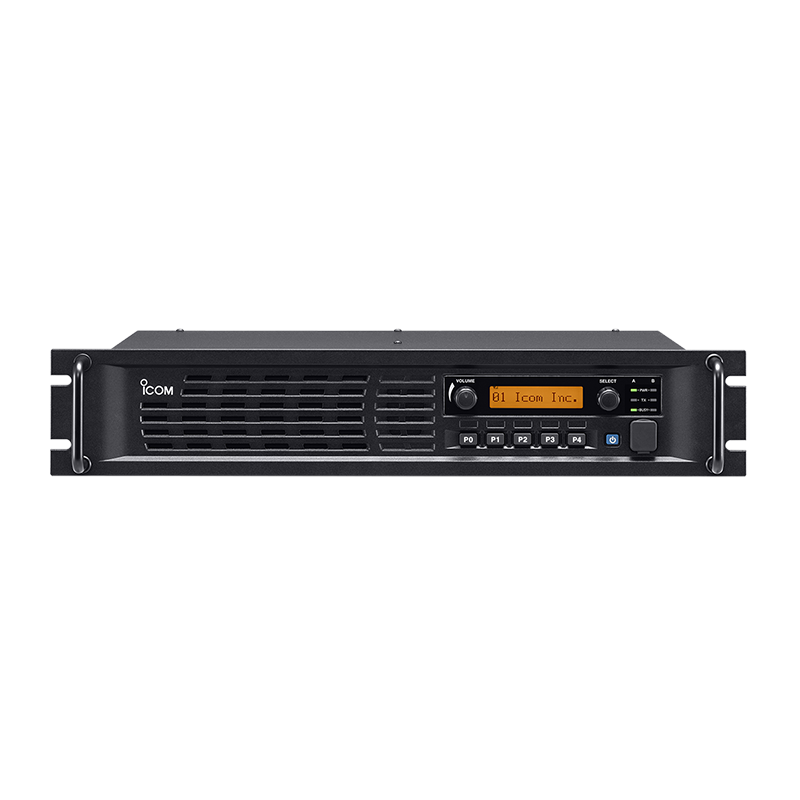

ICOM IC-FR5300 VHF

The Icom IC-FR5300/FR6300 sets new standards in professional radio communication. This robust VHF/UHF digital repeater combines exceptional performance, innovative features, and scalable solutions for analog FM and digital IDAS™ systems in a compact housing. Whether in public safety, emergency services, industry, or transportation, the IC-FR5300/FR6300 reliably masters the diverse demands of modern communication.

Unparalleled Performance for Dependable Communication

With up to 50 watts of transmit power (depending on the model), the IC-FR5300/FR6300 ensures wide coverage and crystal-clear voice quality, even in challenging environments. The optional expansion to two channels enables independent operation on different frequencies, allowing you to make your communication even more flexible.

Next-Generation Digital Radio: IDAS™

The IC-FR5300/FR6300 is fully compatible with Icom's innovative IDAS™ digital system. IDAS™ offers numerous advantages over analog FM systems, including:

• Improved voice quality through digital signal processing
• Higher data security through encryption
• Greater channel capacity through efficient use of the frequency spectrum
• Future-proof technology with continuous development

Scalability for Growing Demands

The IC-FR5300/FR6300 is distinguished by its outstanding scalability. With optional extensions, the system can be effortlessly adapted to your growing requirements. This allows you to expand the repeater from a simple base station to a complex multi-site trunking system for area-wide communication.

IP Connection for Remote Maintenance and Configuration

The optional UC-FR5300 Network Controller Card enables the IC-FR5300/FR6300 to be connected to an IP network. This allows you to conveniently configure and monitor the repeater remotely – simply via a computer or smartphone.

Comprehensive Features for Professional Use

In addition to its outstanding performance and scalability, the IC-FR5300/FR6300 offers a multitude of additional features that make it a versatile and reliable solution for professional communication applications:

• High frequency stability of ± 0.1 ppm for interference-free operation
• Versatile signaling with CTCSS, DTCS, and digital RAN codes
• 32 channels for flexible use in various radio networks
• 5 programmable keys for quick access to important functions
• Robust 19-inch housing for rack mounting
• Optional accessories such as a two-channel expansion module, external power supply, and antennas
• Compatibility with a wide range of analog and digital radio devices from Icom and other manufacturers

Network Controller Card and Software Required for Scaling Options:

• Simulcast: Multiple repeaters on the same frequency for extended range (UC-FR5300 #14, CF-FR5300SC Software, UX-241 GNSS Antenna)
• Multi-site Conventional: Networking of multiple repeaters for wider area coverage (UC-FR5300 #12, CF-FR5000MC Software)
• Single-site Trunking: Efficient channel management at a single location (UC-FR5300 #11)
• Multi-site Trunking: Area-wide trunking system with multiple repeaters (UC-FR5300 #13, CF-FR5000MT Software)

Scope of delivery:

• Power cable
• Carrying handles
